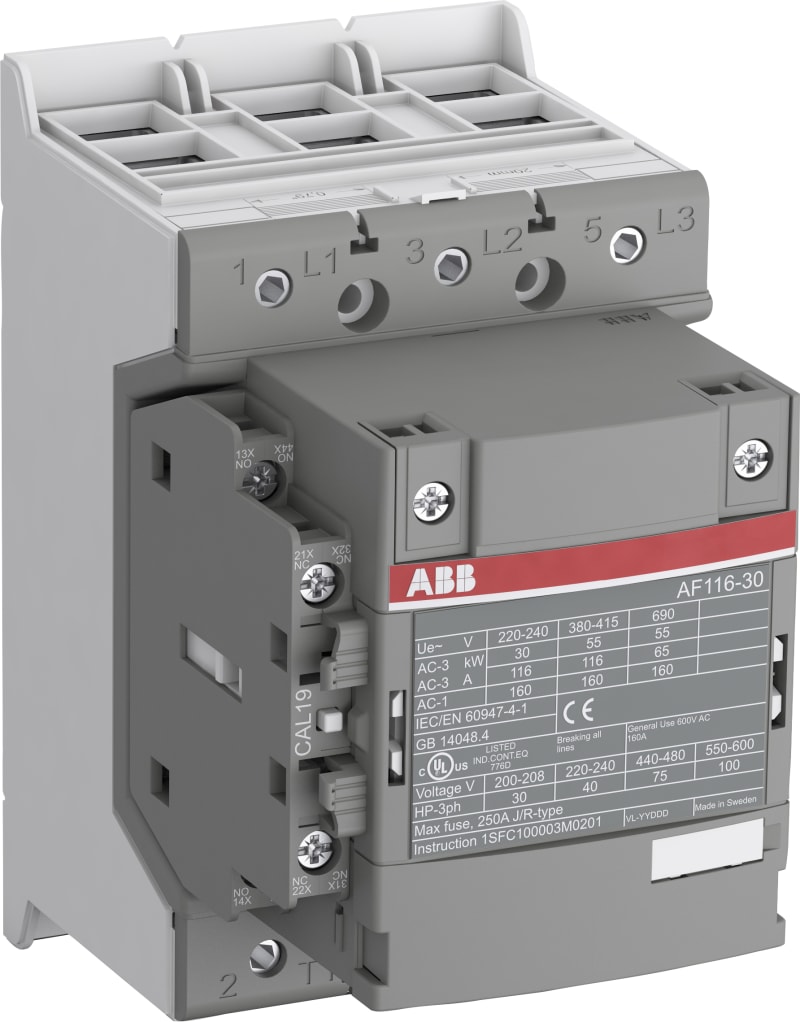

Contactor AF116-30-11-13 (AF116-30-11-13 100-250V 50/60Hz / Dc)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF116-30-11-13 100-250V 50/60Hz / DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. AF116-30-11-13 100-250V 50/60Hz/DC - Contactor with terminal connection. With 1NO+1NC hj.connector.
Technical Specifications
- Manufacturer part number (MPN)
- AF116-30-11-13 100-250V 50/60Hz / DC
- EAN / GTIN
- 7320500476376
- HS code
- 8536.90
- Sales unit
- pcs
- Frequency
- 50/60 Hz
- Width
- 90 mm
- Height
- 150 mm
- Depth
- 126 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 55 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 116 A
- Rated operation current Ie at AC-1, 400 V
- 160 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 29.828 kW
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500476376
- SAP 1000506780
- Code 8351338
Product Documentation
More from ABB
ABB
ABB S203M-D63 Miniature Circuit Breaker — 3P, Type D, 63 A, 10 kA 2CDS273001R0631
ABB
ABB Jussi Bluetooth Room/Floor Thermostat with Floor Sensor Frameless
2TKA00005259
ABB
Main Circuit BREAKER S754DR-E35 SEL
2CDH784001R0352
ABB
Motorkontroller UMC100.3 UC EX
1SAJ530000R1200
ABB
ABB E210-SPV Spread connectors for E210 device series is an accessories (1 Sac 30PCS)
ABB
Main Circuit BREAKER S754DR-E20 SEL
2CDH784001R0202
ABB
2-Run 25/20mm Concrete Box
AUB60
ABB

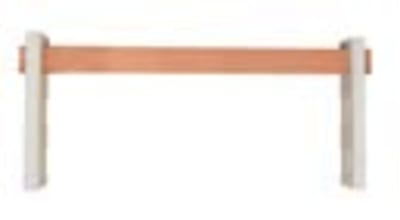

ABB Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 4 = 996 mm, rated current maximum 250 A 2CPX041873R9999
