2-Run 25/20mm Concrete Box

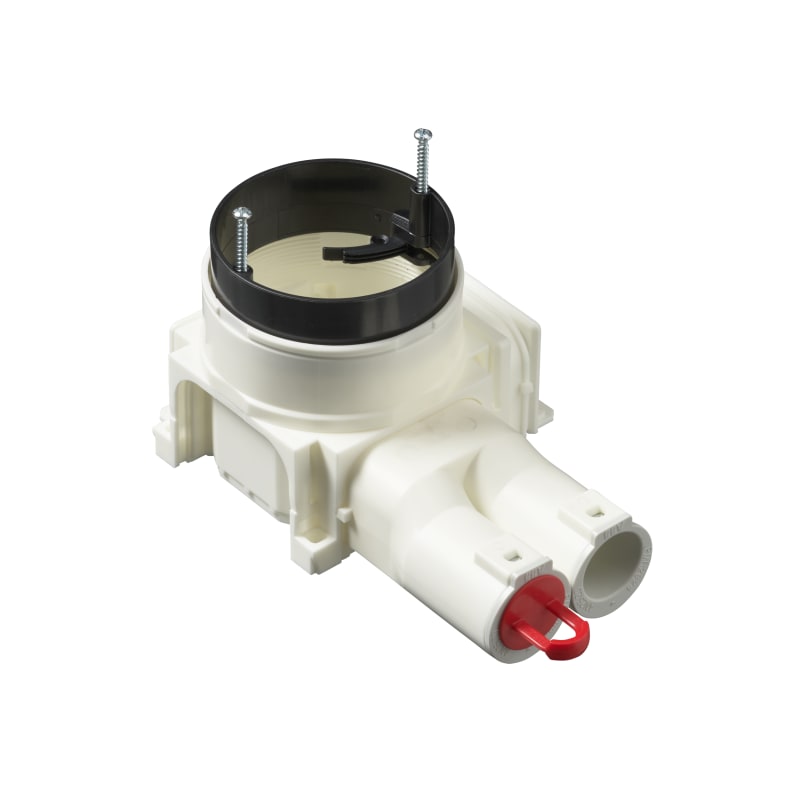

ABB AUB60 — Mounting box AUB60 is especially designed for off site and on site casting applications. Box height is 68 mm. Box has two inlets with locking springs for 20 or 25 mm conduits. Additional inlets can be attached to other sides without need of any tooling. The mounting box includes a rotating, steplessly adjustable extension ring. The extension ring can be tilted 0-4º. Box combinations can be created without additional accessories and box has large inside space. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (650 °C). Maximum number of conductors is 30 pcs.

Manufacturer part number (MPN)

AUB60

EAN / GTIN

6438199008851

Sales unit

pcs

Package quantity

50 pcs

Application

None

Model Number

Single

Number of Conduit Inlets

8

Number of Inlet Inserts Included

2

Design

Device Connection Box (Round / Square)

Cover Mounting Type

Snap On

Switching Equipment Mounting Type

Screw

Includes

None

Number of Batteries

0

Rated Cross-Section

2.5 mm²

Shape

Round

Surface Finishing

Untreated

Material

Plastic

Cover Style

Construction Protective Cover

Color

White

Number of Gangs

1-gang

Degree of Protection

IP3X

Environmental Information

9AKK108472A0748

Product Net Width

0.098 m

Product Net Height

0.068 m

Product Net Depth / Length

0.167 m

Dimension Diagram

9AKK108470A2414

Building Information Modeling – BIM

9AKK108468A3696

Declaration of Conformity - CE

9AKK106713A4627

Mounting Type

Concrete building

ETIM 9

EC002601 - Box/housing for built-in mounting in the wall/ceiling

Mounting method

Concrete building

Model

Single

Provided with revolving ring

Yes

Couplable

Yes

Equipped with

None

Diameter

71 mm

Length

167 mm

Width

98 mm

Depth

167 mm

Inner depth

63 mm

Suitable for wall/board thickness

0–32 mm

For number of electric fittings

1

Mounting switching equipment

Screwing

With screws

Yes

Housing feed-through by break-out opening

Yes

Housing feed-through by seal membrane

No

Housing feed-through by nozzle

Yes

Housing feed-through by step membrane

No

For tube diameter

20/25 mm

Pipe locking

Yes

Pipe locking optional

No

Inlet from the rear

No

Number of inlets

8

Number of included spouts

2

Halogen free

Yes

Surface protection

Untreated

Colour

White

Cover model

Construction protective cover

Transparent cover

No

Cover attachment

Snapped on

Sealable

No

Circuit integrity

None

With screening

No

Air tight

No

Max. conductor cross section

2.5 mm²

Clamp position fixed

No

Luminaire hook mounting

No

Nozzle

None

With nail lugs

Yes

Special application

None

Country of origin

Lithuania

HS Code

3925.90

• EAN 6438199008851
• SAP 1200681884
• Code 83539804
