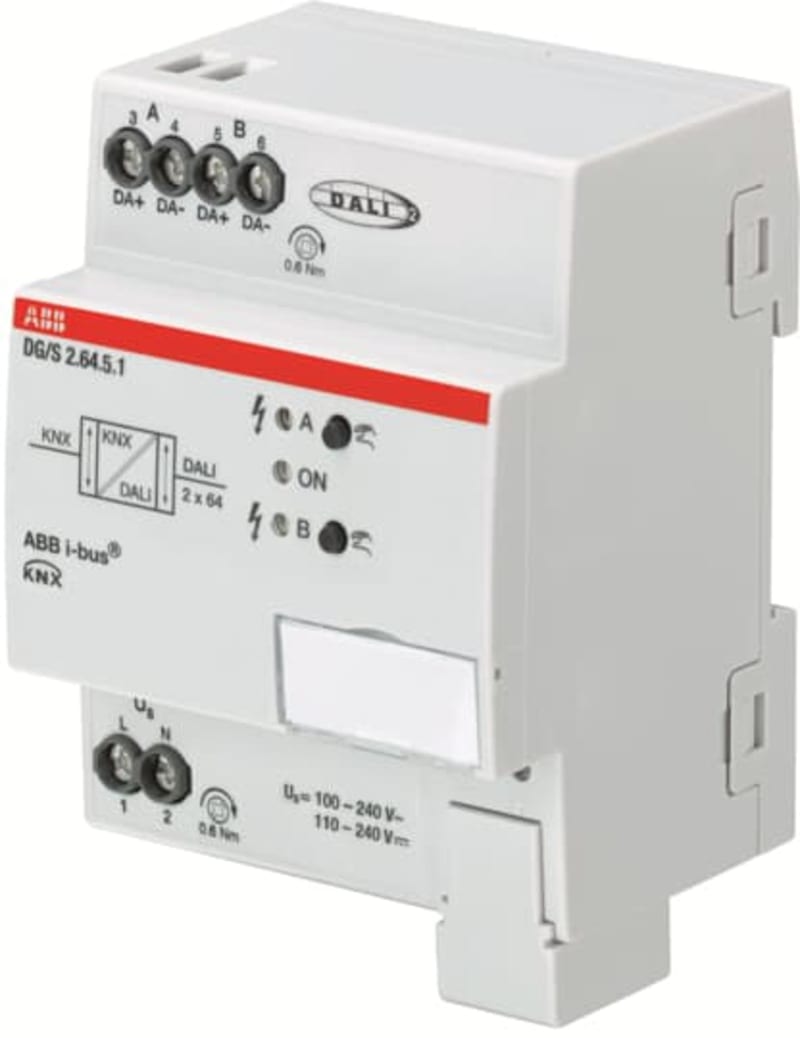

DALI Gateway Premium DG/S2.64.5.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB DG/S2.64.5.1 — Single-Master DALI Controller certificated acc. to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 devices via ABB i-bus® KNX. Two DALI outputs for up to 2x64 DALI participants. DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI participants (2x64), with lighting groups (2x16), together in broadcast or per scenes (2x16). DALI devices type DT1 (Self-contained emergency converter acc. EN 62386-202) and type DT8 (colour temperature Tc & RGB(W) acc. EN 62386-209) will be supported. Other DALI devices e.g., DT6 can be controlled via standard DALI commands acc. to EN 62386-102.Extensive fault and error messages are available. Slave-, staircase-, force-, block- and scene-function are integrated. Colour can set and dim, HSV(W)-, Dim2Warm-, HCL-function, 4 sequencer per DALI output can be used. A standby switch-off in combination with a KNX switch actuator (e.g., SA/S) and the integration of the DALI Gateways into a load control system are possible. By means of KNX and DT1 converter different emergency tests (e.g., function and duration test) can be triggered, test results are transferred back to KNX. For diagnostic use and individual change of the DALI address or group assignment a separate software tool (ABB i-bus® Tool) is available.
Technical Specifications
- Manufacturer part number (MPN)
- DG/S2.64.5.1
- EAN / GTIN
- 4016779067218
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941225P0002
- Wiring Diagram
- 9AKK108464A0349
- Mounting Type
- DIN-Rail
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC507175D0211
- Communication Interface
- DALI
- Number of Outputs
- 2
- Number of LEDs
- 1
- Compatible Bus Systems
- KNX (TP); DALI
- Product Range
- KNX
- Software Updateable
- Yes
- Integrated Webserver
- No
- Manual Operation
- Yes
- Number of Batteries
- 0
- Auxiliary Voltage AC/DC
- 230 V AC; 110 V DC
- Input Voltage (U in )
- 85 ... 264 V AC; 110...240 V DC
- Power Loss
- 4 W; Total 4 W
- Color
- light grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 70 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAC189178_EPLAN
- CB Certificate
- 9AKK108466A1905
- Declaration of Conformity - CE
- 2CDK507179D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0649
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001099 - System interface/media gateway for bus system
- eClass
- V11.0 : 27143136
- UNSPSC
- 43222605
- IDEA Granular Category Code (IGCC)
- 6809 >> System interface/media gateway for bus system
- Model
- Light system interface/DALI
- Operating voltage
- 230 V
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Bus system LON
- No
- Demounting protection
- No
- Radio interface
- No
- IR interface
- No
- Provider dependent
- No
- Updateable
- Yes
- Visualization
- No
- Web-Server
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4016779067218
- SAP 1200426437
- Code 82505152
Product Documentation
More from ABB
ABB
ABB OT16F3C 16A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
ABB
Contactor AF370-30-11-13 (AF370-30-11-13 100-250V 50/60Hz / Dc)
AF370-30-11-13 100-250V 50/60Hz / DC
ABB
ADP MOUNTING Fixed TERM. x FP XT5 630 4P
1SDA104726R1
ABB

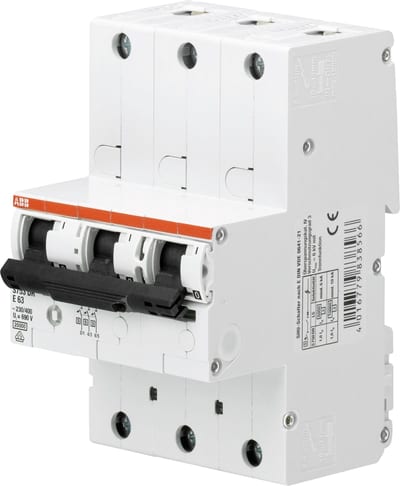

Main Circuit BREAKER S753DR-E50 SEL
2CDH783001R0502
ABB

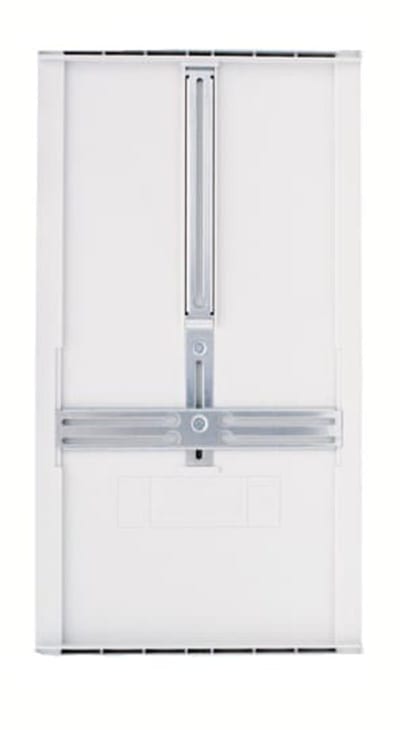

Metermodul ZX319 450X250MM FOR 1 Meter
2439296
ABB

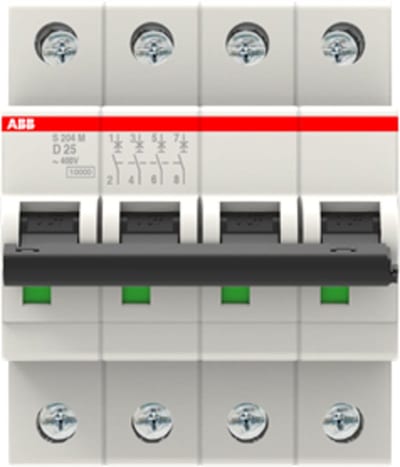

ABB S204M-D25 Miniature Circuit Breaker — 4P, Type D, 25 A, 10 kA
ABB

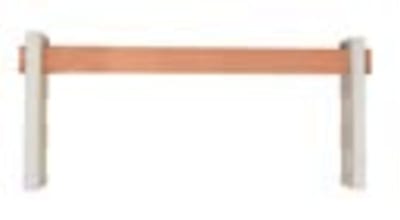

ABB Copper busbar, CombiLine, Flatpack (unmounted), panel width 2 = 496 mm, rated current maximum 250 A 2CPX041871R9999
ABB

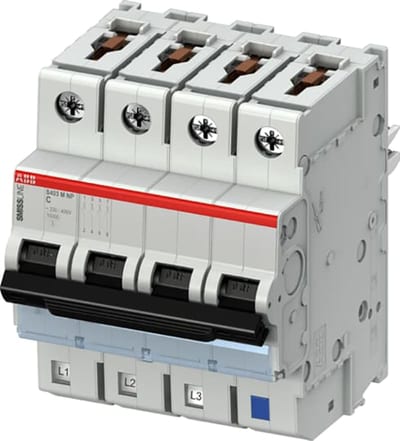

ABB S403-C32 Miniature Circuit Breaker — 3P, Type C, 32 A, 10 kA 2CCS573103R8324
