ABB 4-Pole, front operated, base mounted switch-disconnector with protected clamp terminals and with black direct mount handle 1SCA138215R1001

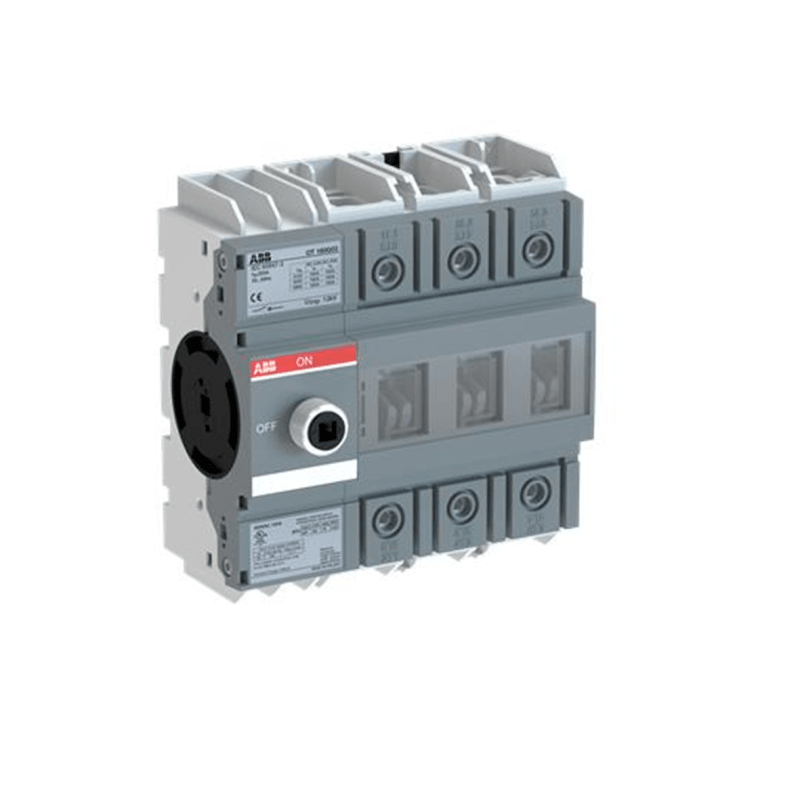

ABB 1SCA138215R1001 — 4-pole, front operated, base mounted switch-disconnector with protected clamp terminals and with black direct mount handle.

Manufacturer part number (MPN)

1SCA138215R1001

EAN / GTIN

6417019666259

HS code

8536.90

Sales unit

pcs

End Of Life Disassembling Instructions

1SCC301116M0201

Environmental Information

1SCC301267D0201

Environmental Product Declaration - EPD

1SCC301281D0201

Degree of Protection

Front IP20

Pollution Degree

3

Product Net Width

150 mm

Product Net Height

130 mm

Product Net Depth / Length

73 mm

Cable Cross-Section

Cu 10 ... 70 mm²

Color

Grey

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 160 A

Conventional Thermal Current (I the )

Fully Enclosed 160 A

Distance Between Phases

Standard

Fourth Pole Position

Right Side

Fourth Pole Type

Switched - Simultaneous Function

Handle Color

Black

Handle Type

Direct Mount Pistol Type

Mechanical Durability

20000

Mounting Type

Base mounting

Number of Poles

4P

Operating Mode

Front and Side

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 6.5 W

Rated Conditional Short-Circuit Current (I nc )

(200 A fuse, 500 V) 100 kA; (200 A fuse, 690 V) 50 kA

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 1000 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 160 A; (500 V) 160 A; (690 V) 160 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 160 A; (500 V) 160 A; (690 V) 160 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 160 A; (500 V) 160 A; (690 V) 160 A

Rated Operational Power AC-23A (P e )

(220 ... 240 V) 45 kW; (400 ... 415 V) 75 kW; (500 V) 90 kW; (690 V) 132 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(690 V) 12 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 4 kA

Special Functions

No

Standards

IEC 60947-3 / UL 98 / CSA C22.2 NO.4

Switches Operating Mechanism

Mechanism at the End of the Switch; 04 (Left Side)

Terminal Type

Screw Terminals

Tightening Torque

acc. IEC 60947-1 6 N·m

Maximum Operating Voltage UL/CSA

600 V

Ampere Rating

125 A

Horsepower Rating UL/CSA

(240 V AC) Single Phase 20 Hp; (440 ... 480 V AC) Single Phase 30 Hp

Tightening Torque UL/CSA

53 in·lb

A2L Certificate – IEC

1SCC301336D0201

ATEX Certificate

No certification needed

Declaration of Conformity - CE

1SCC301210D2701

DNV GL Certificate

1SCC301174D0204

UL Certificate

cULus certificate OT160G

VDE Certificate

No certification needed

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Norway)

4372124

E-Number (Sweden)

3171059

HS Code

8536.90

• EAN 6417019666259
• SAP 1000767970
