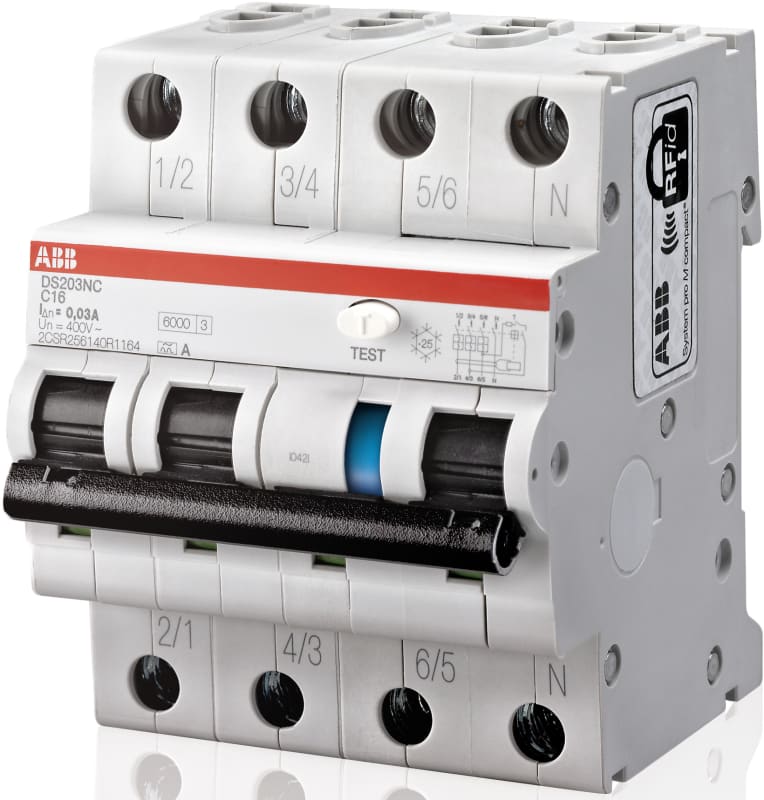

JF.AUT.DS203NC C16 A30 230V
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR256147R1164 Residual current circuit breaker with overcurrent, DS203NC, 3pol, 16A, C-characteristic, Type A, 30mA, 6kA, 230V IT system.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR256147R1164
- EAN / GTIN
- 8012542198123
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V
- Power loss
- 10 W
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 16 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- Yes
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 4
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP2X
- Connectable conductor cross section solid-core
- 25 mm²
- Connectable conductor cross section multi-wired
- 25 mm²
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542198123
- SAP 1200123756
- Code 81976781
Product Documentation
More from ABB
ABB
Rail PS3 (L1,L2,L3) 6MOD.
PS36
ABB
KIT FC Cu, XT2, 3 pcs
KIT FC Cu XT2 3pcs
ABB
HTC XT2, 4P, terminal covers, high, 2 pcs
HTC XT2 4p TERMINAL COVERS HIGH 2pcs
ABB
Switch FOR DIN-RAIL E214-16-202
ABB
ABB SACE Tmax XT5N 630 Moulded-Case Circuit Breaker — Ekip Dip LS/I, In=630 A, 4-Pole
XT5N 630 Ekip Dip LS/I In=630 4p F F
ABB
Residual Current Circuit Breaker WITH Overcurrent DS202CRM C32A 30MA
DS202CR M C32 A30
ABB

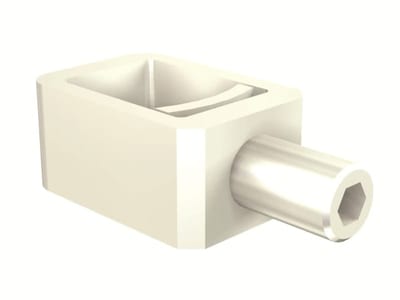

CUAL KL 1X1-185MM2, XT4, 4 PCS
KIT FC CuAl 1x2,5...150mm2 XT4 4pcs
ABB

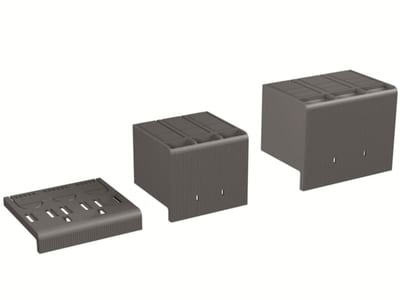

HTC XT4, 3P, terminal covers, high, 2 pcs
