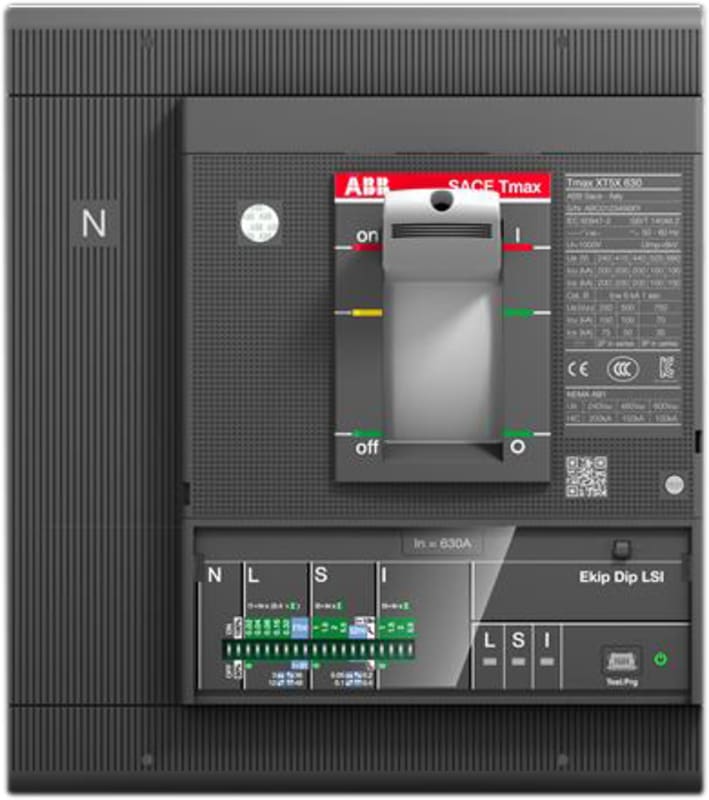

ABB SACE Tmax XT5N 630 Moulded-Case Circuit Breaker — Ekip Dip LS/I, In=630 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5N 630 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 630 A, 4-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip Dip LS/I (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. EAN 8056221004749, ABB/SAP material 1200638280, catalogue code 83052000.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT5N 630 Ekip Dip LS/I In=630 4p FF
- EAN / GTIN
- 8056221004749
- ABB / SAP material no.
- 1200638280
- Frame
- XT5 (630 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- Ekip Dip LS/I
- Rated uninterrupted current In
- 630 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221004749
- SAP 1200638280
- Code 83052000
Product Documentation
More from ABB
ABB
Residual Current Circuit Breaker WITH Overcurrent DS202CRM C32A 30MA
DS202CR M C32 A30
ABB
CUAL KL 1X1-185MM2, XT4, 4 PCS
KIT FC CuAl 1x2,5...150mm2 XT4 4pcs
ABB
HTC XT4, 3P, terminal covers, high, 2 pcs
HTC XT4 3p TERMINAL COVERS HIGH 2pcs
ABB
SAGA WALL-Mounted Socket Double
402EA-916
ABB
Switch FOR DIN-RAIL E211-25-20
2CCA703006R0001
ABB
CuAl kl 1X2,5-150MM2, XT4, 3 pcs
KIT FC CuAl 1x1-150mm2 XT4 3p
ABB
JF.AUT.DS203NC-C32/0.1 (2CSR256140R2324)
ABB
RAIL PS3 (L1,L2,L3) 18MOD, 10 mm²
2CDL230001R1018
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XT5N 630 Ekip Dip LS/I In=630 4p F F?
- XT5N 630 Ekip Dip LS/I In=630 4p F F can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is XT5N 630 Ekip Dip LS/I In=630 4p F F.
- What is the HS code for XT5N 630 Ekip Dip LS/I In=630 4p F F?
- The customs tariff (HS) code for XT5N 630 Ekip Dip LS/I In=630 4p F F is 8536.20.
- Who manufactures XT5N 630 Ekip Dip LS/I In=630 4p F F?
- XT5N 630 Ekip Dip LS/I In=630 4p F F is a ABB product in the Electrical Components range.
- Is a datasheet available for XT5N 630 Ekip Dip LS/I In=630 4p F F?
- Yes — the XT5N 630 Ekip Dip LS/I In=630 4p F F datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XT5N 630 Ekip Dip LS/I In=630 4p F F?
- The minimum order quantity is 1.
- Is XT5N 630 Ekip Dip LS/I In=630 4p F F available?
- Yes — XT5N 630 Ekip Dip LS/I In=630 4p F F is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
