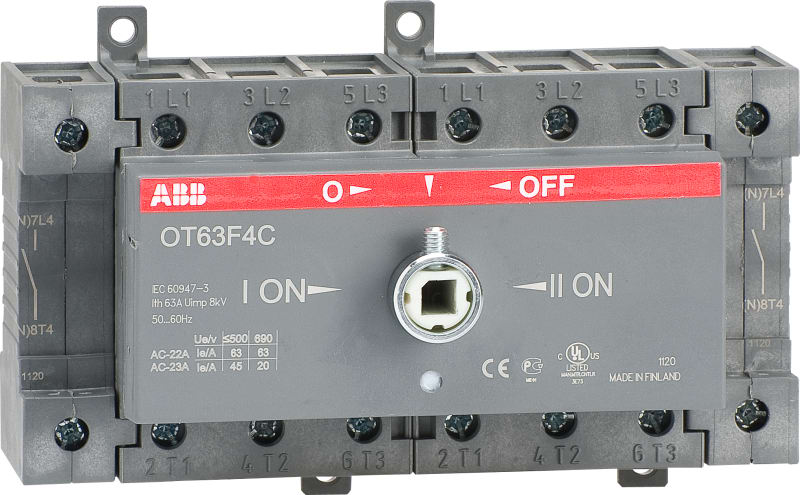

ABB OT63F4C 63A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition

ABB OT63F4C 63A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Degree of Protection: Front IP20; Pollution Degree: 3; Product Net Width: 140 mm; 5.51 in; Product Net Height: 92 mm; 3.62 in; Product Net Depth / Length: 85 mm; 3.35 in.

Manufacturer part number (MPN)

OT63F4C

EAN / GTIN

6417019393131

Sales unit

pcs

Environmental Product Declaration - EPD

1SCC301273D0201

Degree of Protection

Front IP20

Pollution Degree

3

Product Net Width

140 mm; 5.51 in

Product Net Height

92 mm; 3.62 in

Product Net Depth / Length

85 mm; 3.35 in

Cable Cross-Section

1.5 ... 35 mm²

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 63 A

Conventional Thermal Current (I the )

Fully Enclosed 63 A

Distance Between Phases

Standard

Fourth Pole Position

Right Side

Fourth Pole Type

Switched - Simultaneous Function

Handle Color

Black

Mounting Type

Base mounting

Number of Poles

4P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out, Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 2.8 W

Rated Impulse Withstand Voltage (U imp )

8 kV

Rated Insulation Voltage (U i )

750 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 63 A; (500 V) 63 A; (690 V) 63 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 63 A; (500 V) 63 A; (690 V) 63 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 63 A; (500 V) 45 A; (690 V) 20 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 22 kW; (500 V) 15 kW; (690 V) 15 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 1 kiloampere rms

Standards

UL 98 / IEC60947-3

Switches Operating Mechanism

Mechanism on Top of the Switch

Terminal Type

Screw Terminals

Tightening Torque

acc. IEC 60947-1 2 N·m

Transition Type

Open

Horsepower Rating UL/CSA

(acc. to UL 200 V) 15 Hp; (acc. to UL 208 V) 15 Hp; (acc. to UL 240 V) 15 Hp; (acc. to UL 480 V) 30 Hp; (acc. to UL 600 V) 30 Hp

Declaration of Conformity - CE

1SCC303020D2702

DNV Certificate

1SCC303138D0201

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

IDEA Granular Category Code (IGCC)

5214 >> Rotary switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601452

E-Number (Norway)

4363555

HS Code

8536.50

• EAN 6417019393131
• SAP 1000224844
• Code 8961160
