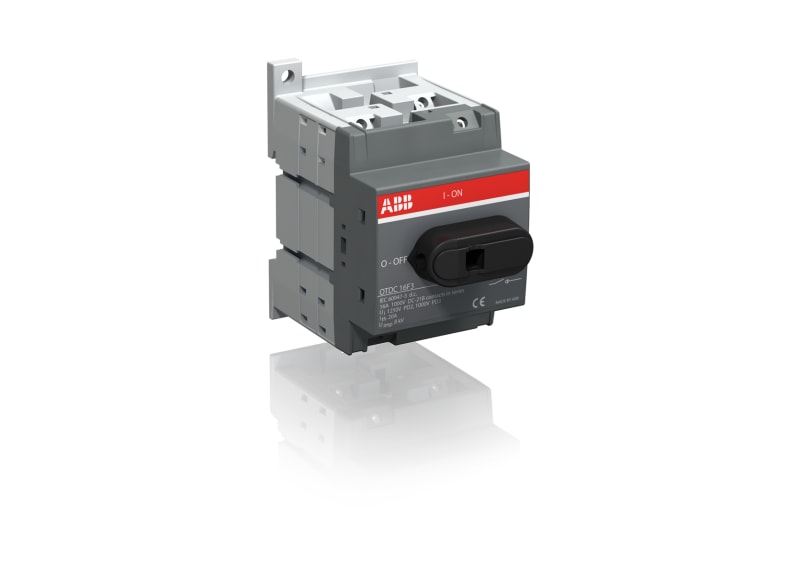

Load-Break Switch OTDC25F2

ABB OTDC25F2 — DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 660 VDC 25 A single circuit, IEC 1000 VDC 16 A single circuit.

Manufacturer part number (MPN)

OTDC25F2

EAN / GTIN

6417019526102

Sales unit

pcs

ABB Site Meeting Group Waste To Landfill Target

UL 2799 Zero Waste To Landfill Validation available

Environmental Information

NA

Degree of Protection

Front IP20

Pollution Degree

3

Product Frame Size

XS

Product Net Width

52.5 mm; 2.1 in

Product Net Height

89 mm; 3.5 in

Product Net Depth / Length

66.2 mm; 2.6 in

Cable Cross-Section

2.5 ... 16 mm²

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 32 A

Conventional Thermal Current (I the )

Fully Enclosed 32 A

Handle Color

Black

Handle Type

Knob

Mounting Type

Base mounting, DIN-rail mounting

Number of Circuits

1

Number of Poles

2P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Positive Opening Operation Torque (Direct Opening Action)

0.4 … 0.8 N·m

Power Loss

at Rated Operating Conditions per Pole 0.3 W; Total 0.6 W

Rated Impulse Withstand Voltage (U imp )

8 kV

Rated Insulation Voltage (U i )

1000 V

Rated Operational Current DC-21B (I e )

(660 V) 25 A; (1000 V) 16 A

Rated Operational Voltage

1000 V

Rated Short-Circuit Making Capacity (I cm )

(1000 V DC) 0.8 kA

Rated Short-time Withstand Current Low Voltage (I cw )

(1000 V DC) 0.8 kA; for 1 s 0.8 kA

Recommended Screw Driver

Main Circuit Torx

Shaft Diameter

6 mm; 0.24 in

Special Functions

No

Standards

IEC 60947-1, -3

Switches Operating Mechanism

Mechanism on Top of the Switch

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 1.2 … 1.4 N·m

Utilization

Photovoltaic

Utilization Category

Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)

Wire Stripping Length

Main Circuit 54 … 11 mm

CCC Certificate

CQC2012010302579872

Declaration of Conformity - CE

1SCC301192D2704

Declaration of Conformity - UKCA

1SCC301313D0201

DNV GL Certificate

1SCC301231D0201

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC004963 - Switch disconnector (DC)

UNSPSC

39122233

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601354

E-Number (Norway)

4363631

E-Number (Sweden)

3134019

HS Code

8536.30

• EAN 6417019526102
• SAP 1000406889
• Code 8482987
