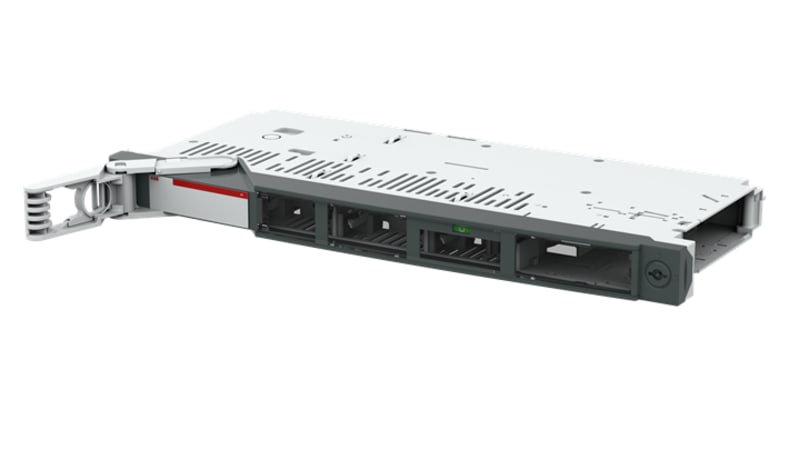

ABB 1SEP204480R3600 Two pole Switch Disconnector Fuse for 185mm busbar distance and 10mm busbar thickness
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SEP204480R3600 Two pole Switch Disconnector Fuse for 185mm busbar distance and 10mm busbar thickness is listed under Switchgear & Protection / Fuse Switch-Disconnectors. Sales unit: pcs; Country of Origin: Bulgaria; Product Sales Status: Active; Degree of Protection: acc. to IEC 60529 Front IP41; Product Net Width: 590 mm; Product Net Height: 50 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1SEP204480R3600
- EAN / GTIN
- 3800161650147
- Sales unit
- pcs
- Country of Origin
- Bulgaria
- Lead Time
- 0 day
- Product Sales Status
- Active
- Environmental Product Declaration - EPD
- 9AKK108472A1659
- Degree of Protection
- acc. to IEC 60529 Front IP41
- Product Net Width
- 590 mm
- Product Net Height
- 50 mm
- Product Net Depth / Length
- 335 mm
- Busbar Dimensions
- Thickness 10 mm
- Distance Between Phases
- 185 mm
- Electronic Fuse Monitoring
- No
- Fuse Size
- NH00
- Fuse System
- DIN
- Number of Poles
- 2P
- Operating Mode
- Manual
- Power Loss
- at Rated Load 33 W
- Rated Current (I n )
- 160 A
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 1 kV
- Rated Operational Current DC-21B (I e )
- (500 V) 125 A
- Rated Operational Current DC-23B (I e )
- (230 V) 160 A
- Rated Operational Voltage
- 500 V AC
- Rated Voltage (U r )
- 500 V AC
- Standards
- IEC60947-3
- Terminal Type
- Bolt
- Utilization Category
- Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B); Switching of highly inductive loads (i.e. series motors) - occasional actuation (DC-23B)
- Declaration of Conformity - CE
- 1SCC311166D2701
- ETIM 9
- EC001040 - Fuse switch disconnector
- eClass
- V11.1 : 27371401
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
- E-Number (Norway)
- 1687869
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3800161650147
- SAP 1200924007
- Code 84210925
Product Documentation
