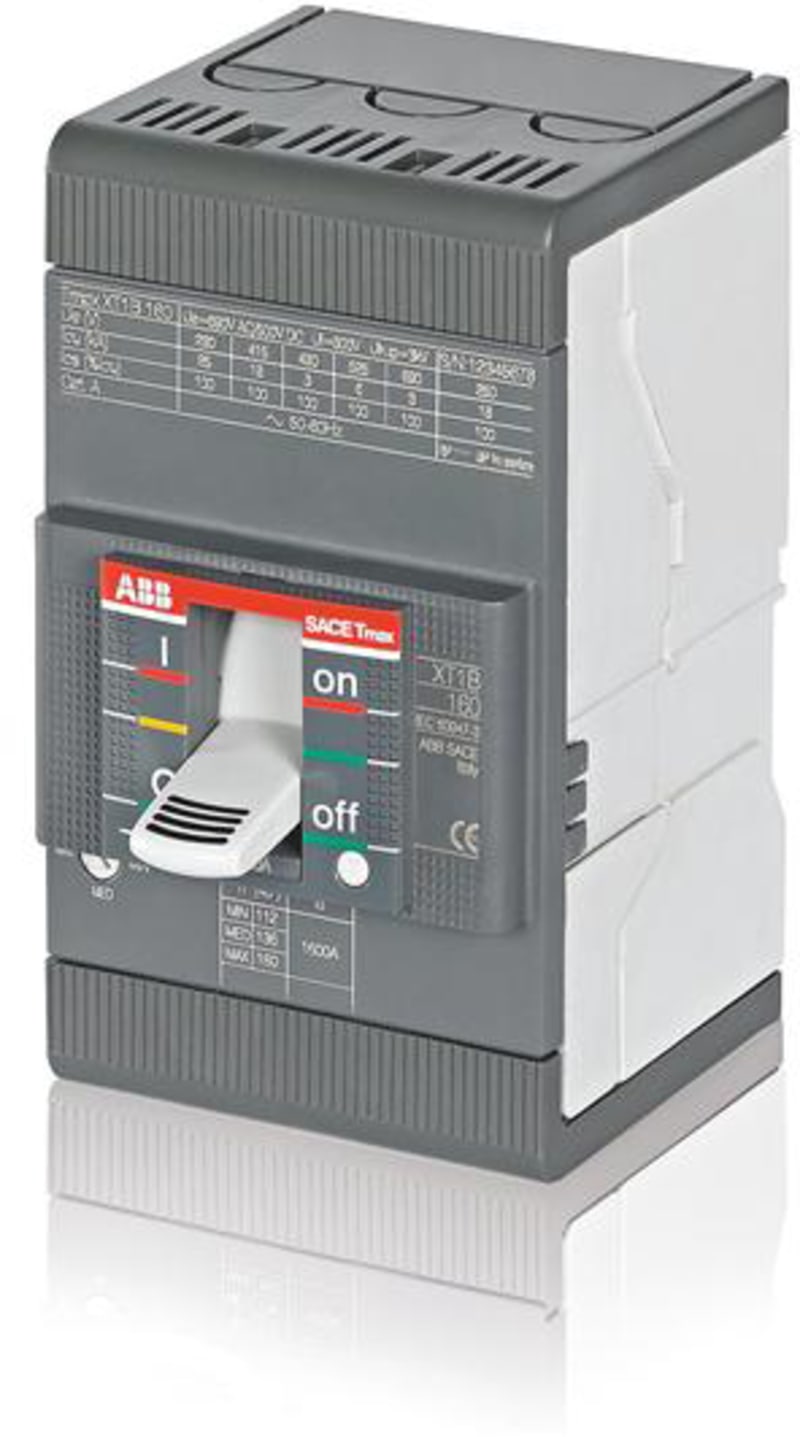

ABB SACE Tmax XT1C 160 Moulded-Case Circuit Breaker — TMD 125-1250, In=125 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT1C 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 125 A, 3-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMD 125-1250 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class C; rated ultimate short-circuit breaking capacity Icu = 25 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. EAN 8015644012922, ABB/SAP material 1000488006, catalogue code 8802051.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT1 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT1C 160 TMD 125-1250 3p FF
- EAN / GTIN
- 8015644012922
- ABB / SAP material no.
- 1000488006
- Frame
- XT1 (160 A frame)
- Breaking-capacity class
- C
- Rated ultimate breaking capacity Icu (415 V AC)
- 25 kA
- Trip unit
- TMD 125-1250
- Rated uninterrupted current In
- 125 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644012922
- SAP 1000488006
- Code 8802051
