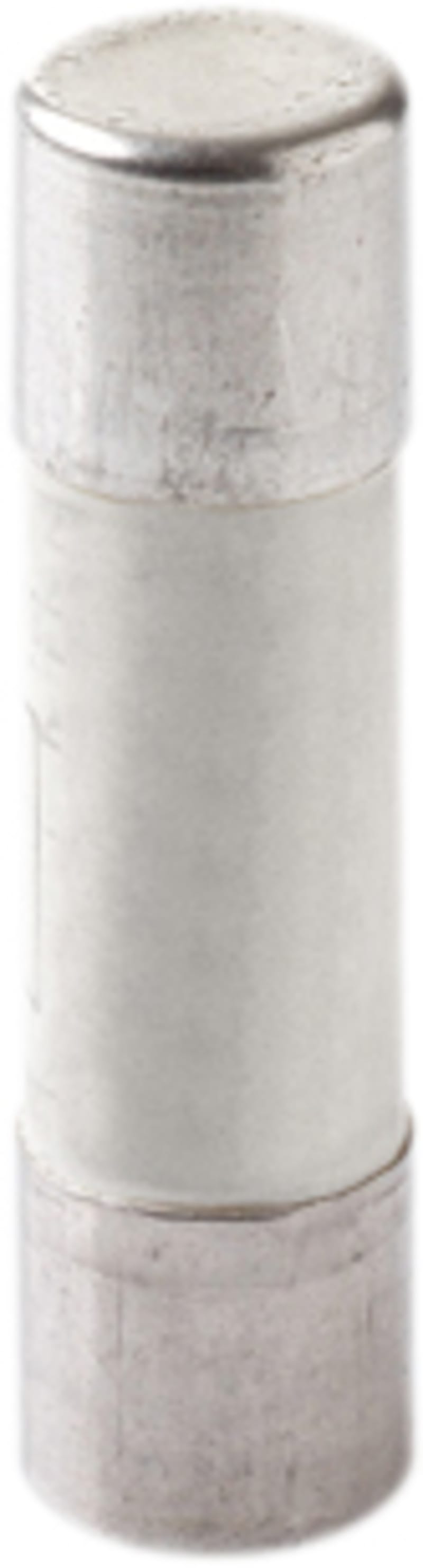

ABB 2CSM258783R1801 E 9F14 GG16 is a 14X51 mm cylindrical fuse for circuits protection
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CSM258783R1801 E 9F14 GG16 is a 14X51 mm cylindrical fuse for circuits protection is listed under Electrical Components / Fuses. Sales unit: pcs; Package quantity: 10 pcs; Fuse Type: gG; Construction Material: Ceramic; Fuse Size: 14x51; Contact Material: copper silver plated (Cu/Ag).
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM258783R1801
- EAN / GTIN
- 8012542587835
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Fuse Type
- gG
- Release Type
- gG: Used in general protection of cables and lines in installation and industrial applications
- Construction Material
- Ceramic
- Fuse Size
- 14x51
- Contact Material
- copper silver plated (Cu/Ag)
- Rated Voltage (U r )
- 690 V
- Rated Current (I n )
- 16 A
- Maximum Breaking Capacity
- 120 kA
- Power Loss
- Total 2.35 W; at Rated Operating Conditions per Pole 2.35 W
- I²t Characteristic
- 9AKK108467A0128
- Environmental Information
- See RoHS Information
- Product Net Width
- 1 mm
- Product Net Height
- 51 mm
- Product Net Depth / Length
- 1 mm
- Dimension Diagram
- 9AKK108466A8533
- Cut-off Current Characteristic
- 9AKK108466A9072
- Declaration of Conformity - CE
- 9AKK106713A5625
- ETIM 9
- EC002704 - Cylindrical fuse
- UNSPSC
- 39121606
- eClass
- V11.0 : 27142002
- Object Classification Code
- F
- Standards
- IEC 60269-2
- Size
- 14x51 mm
- Voltage type
- AC
- Utilization category according to IEC 60269
- gL/gG (cable protection/equipment protection)
- Nominal current
- 16 A
- With striker
- No
- Breaking capacity
- 120 kA
- Power loss at rated current
- 2.35 W
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 8012542587835
- SAP 1200640875
- Code 83054188
Product Documentation
More from ABB
ABB
ABB 2CKA001433A0036 for rocker 2520-...
ABB
ABB RD2 Residual Current Monitor (RCM) — Type A, 48 … 150 V AC/DC, External Toroidal Transformer
2CSM242120R1201
ABB

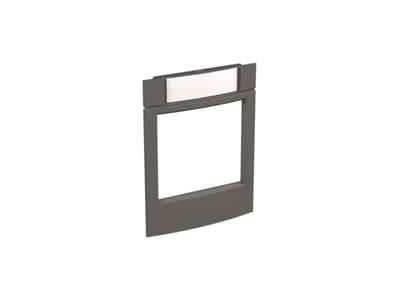

ABB 1SDA105140R1 FLA.xCOMP.DOORxMOE-RHD-FLD XT6 F
ABB
ABB SACE Tmax XT4N 160 Moulded-Case Circuit Breaker — Ekip In, In=160 A, 4-Pole
1SDA068151R1
ABB

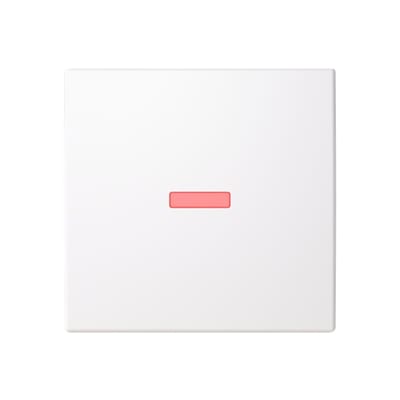

ABB SAGA Single Rocker Switch 1/6 with Red Window
2CKA001731A4030
ABB

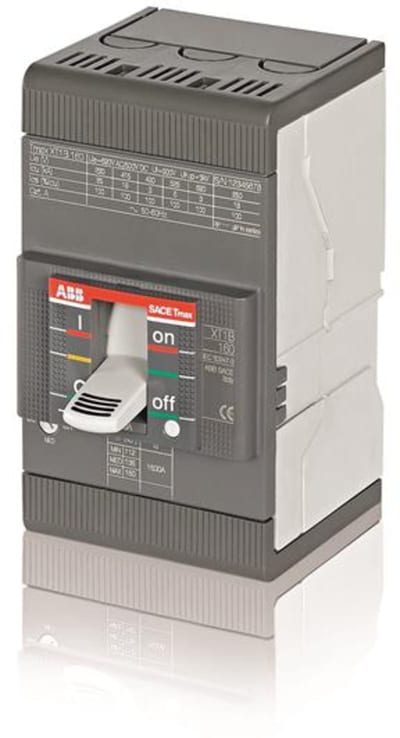

ABB SACE Tmax XT1H 160 Moulded-Case Circuit Breaker — TMD 125-1250, In=125 A, 3-Pole
1SDA067453R1
ABB

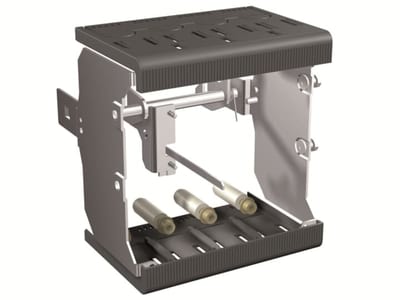

Kit W MP XT5 400A 4P
1SDA104712R1
ABB

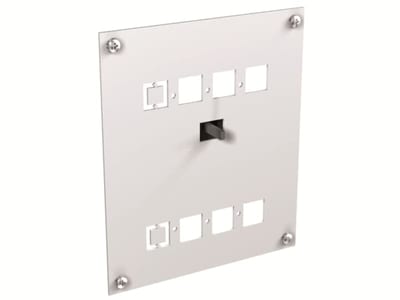

ABB 1SDA066643R1 Plate FOR Mechanical Interlock FOR Fixed Circuit-Breaker XT3
