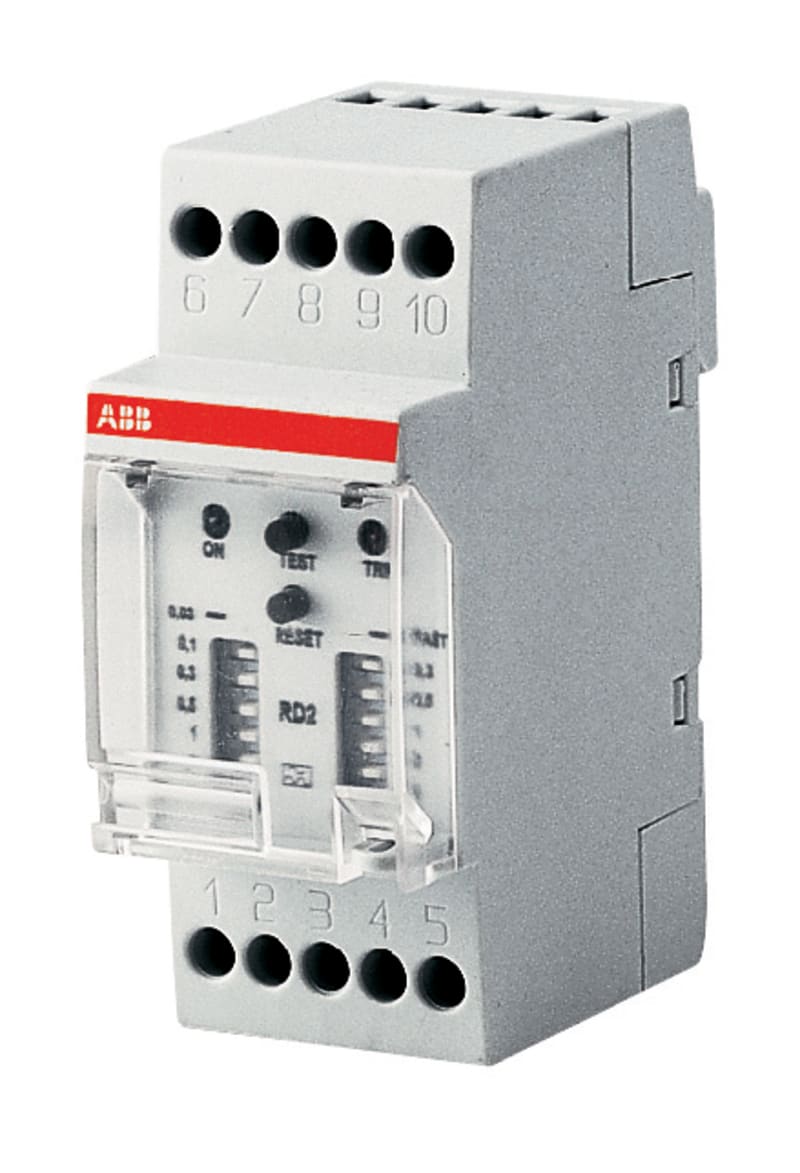

ABB RD2 Residual Current Monitor (RCM) — Type A, 48 … 150 V AC/DC, External Toroidal Transformer

The ABB 2CSM242120R1201 is an RD2 residual current monitor (RCM). Unlike an RCD, it does not break the circuit itself: it measures the leakage current flowing through an external toroidal transformer and signals through its output contact, so the tripping is done by a separate breaker or contactor — or not at all, where the requirement is to warn about deteriorating insulation while keeping a process running. Sensitivity and intervention time are set with the minidip switches on the front. This makes it the usual choice for monitoring large or continuous-process installations, and for retrofitting earth-fault monitoring where the existing breaker cannot be changed. It is a Type A device, so it detects sinusoidal AC and pulsating DC residual currents. Sensitivity and tripping delay are both set on the device, which is what lets one part number cover a range of installations and lets discrimination be arranged with the devices downstream. Supply voltage is 48 … 150 V AC/DC. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

2CSM242120R1201

EAN / GTIN

8012542537809

Sales unit

pcs

Country of Origin

Romania

Lead Time

0 day

Product Sales Status

Active

Type of Residual Current

Type A

Function

For AC-current system

Current Rating

Response value amperage 1 2000 ... 2000 mA

Number of Contacts

1 Delay Time ( τ ): Delay-On Energization, Maximum, Permitted 5 s; Delay-On Energization, minimum, Adjustable 0.3 s

Filter Option

no frequency filter

Options Provided

Pre-alarm threshold: no Rated Voltage (U r ): 400...400 V

Rated Operational Voltage

48 ... 150 V AC/DC Rated Control Supply Voltage (U s ): (DC) 120...150 V; (DC) 120...150 V; (50 Hz) 150...150 V; (50 Hz) 150...150 V; (60 Hz) 150...150 V; (60 Hz) 150...150 V Rated Frequency (f): 50 … 60 Hz

Power Loss

Total 3.4 W

Number of Contacts CO

1

Number of Contacts NC

0

Number of Contacts NO

0

Product Net

Width

35 mm

Product Net

Height

0.085 m

Product Net Depth / Length

65 mm

Declaration of Conformity - CE

9AKK106713A5627

Instructions and Manuals

0400 - 9924

Mounting Type

DIN-Rail

ETIM 9

EC001445 - Residual current monitoring relay

UNSPSC

39121601

eClass

V11.0 : 27371809

Object Classification Code

F

Standards

IEC EN 62020

Type of electric connection

Screw connection Rated control supply voltage AC 50 Hz: 150 V Rated control supply voltage AC 60 Hz: 150 V Rated control supply voltage DC: 120–150 V Voltage type for actuating: AC/DC With detachable clamps: No Response value amperage 1: 2000 mA Response value amperage 2: 2000 mA Min. adjustable delay-on energization time: 0.3 s Max. permitted delay-on energization time: 5 s Indication of difference current: No Error registration possible: No Number of contacts as change-over contact: 1

Width

35 mm

Height

85 mm

Depth

65 mm

Product family

ABB RD2 residual current monitor

Model

RD2

Device type

Residual current monitor (RCM), external toroidal transformer

Supply voltage

48 … 150 V AC/DC

Reset

Manual

Pre-alarm threshold

Not fitted

Frequency filter

Not fitted

LED bar indicator

Not fitted

HS Code

8536.41

• EAN 8012542537809
• SAP 1200640903
• Code 83056002
• MPN 2CSM242120R1201
• Model RD2
