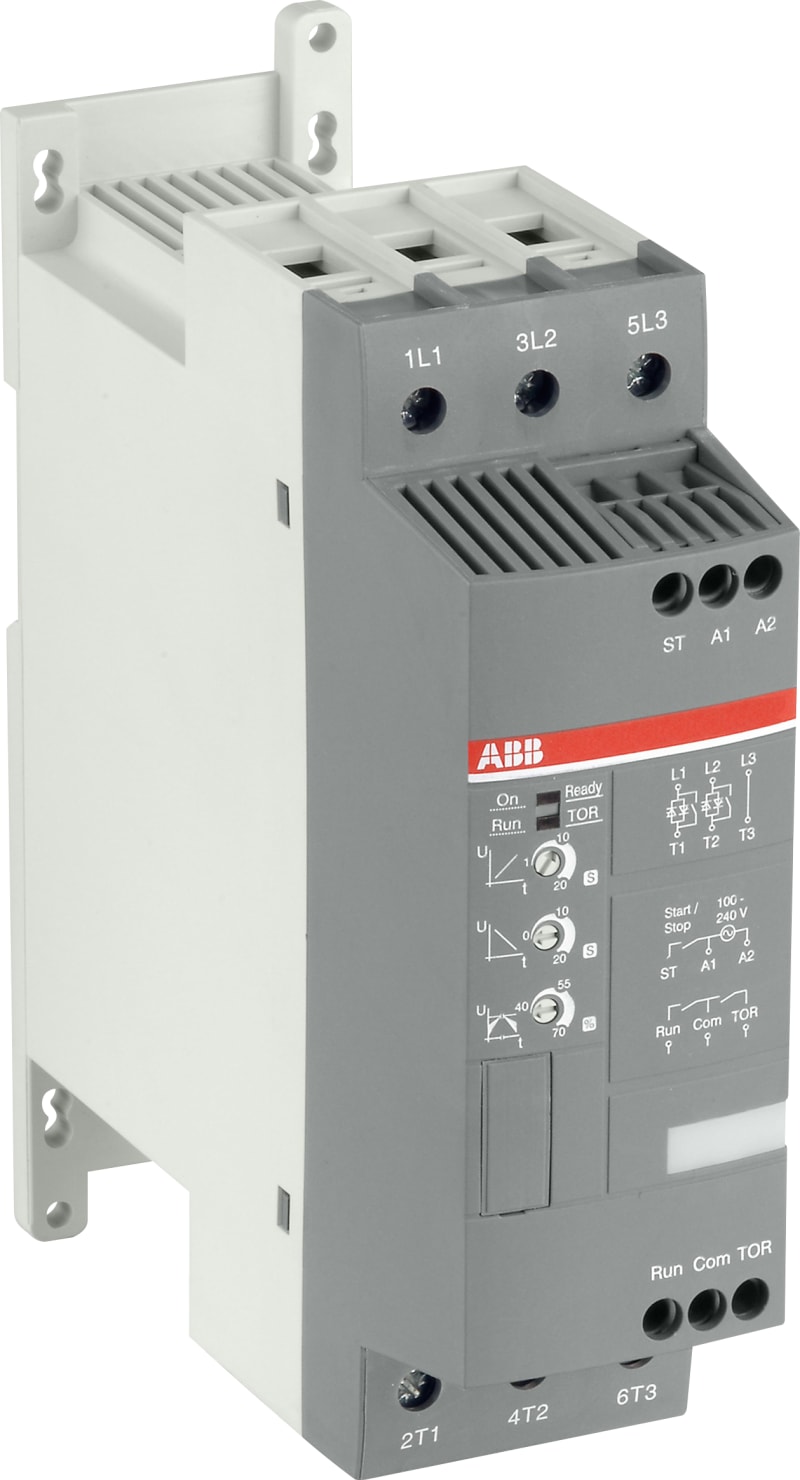

SOFT Starter PSR85-600-11

ABB PSR85-600-11 — The soft starter PSR85-600-11 has a rated maximum operational current of 85 A with an operating voltage span from 208.600 V AC. The rated control voltage is 24 V AC/DC. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact soft starters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3.105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.

Manufacturer part number (MPN)

PSR85-600-11

EAN / GTIN

7320500477250

Sales unit

pcs

Configuration Only

No

Country of Origin

Sweden

Criticality

No

Lead Time

0 day

Note

No

Product Availability Class

Only for warranty purposes. Not available for normal sales

Product Sales Status

Active

Storage Location

4014

Product Net Width

70 mm

Product Net Height

220 mm

Product Net Depth / Length

180 mm

Rated Operational Voltage

208 ... 600 V AC

Rated Control Supply Voltage (U s )

24 V AC/DC

Rated Control Circuit Voltage (U c )

24 V DC

Rated Frequency (f)

50/60 Hz; Main Circuit 50 / 60 Hz

Rated Operational Power - In-Line Connection (Pe)

(230 V) 22 kW; (400 V) 45 kW; (500 V) 55 kW

Rated Operational Current - In-Line Connection (Ie)

85 A

Service Factor Percentage

100 %

Overload Protection

Recommended MS495 70 ... 90

Integrated Electronic Overload

No

Starting Capacity at Maximum Rated Current Ie

4xIe for 6s

Ramp Time

0 ... 20 s; 1 ... 10 s

Initial Voltage During Start

40 ... 70 %

Step Down Voltage Special Ramp

100 ... 60 %

Current Limit Function

No

Switch for Inside Delta Connection

No

Run Signal Relay

Yes

By-pass Signal Relay

Yes

Fault Signal Relay

No

Overload Signal Relay

No

Signal Indication Completed Start Ramp (LED)

Green

Signal Indication Ready to Start/Standby ON (LED)

Green

Signal Indication Running R (LED)

Green

Signal Indication Ramping Up/Down (LED)

Green

Communication

FiledBusPlug(Optional)

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

Terminal Type

Main Circuit: Bars

Connecting Capacity Main Circuit

Rigid 1x 6 ... 95 mm²; Rigid 2 x 6 ... 35 mm²

Connecting Capacity Control Circuit

1 x 0.75 ... 2.5 mm²; 2 x 0.75 ... 2.5 mm²; Rigid 1/2 x 0.75 ... 2.5 mm²

Connecting Capacity Supply Circuit

Rigid 1 x 0.75 ... 2.5

Tightening Torque

Control Circuit 0.6 N·m; Main Circuit 8 N·m; Supply Circuit 0.6 N·m

Product Main Type

PSR85

Function

Soft start with voltage ramp; Soft stop with voltage ramp

Horsepower Rating UL/CSA

(200 ... 208 V AC) Three Phase 25 Hp; (220 ... 240 V AC) Three Phase 30 Hp; (440 ... 480 V AC) Three Phase 60 Hp; (550 ... 600 V AC) Three Phase 75 Hp

Maximum Operating Voltage UL/CSA

Main Circuit 600 V

Tightening Torque UL/CSA

Control Circuit 5.3 in·lb; Main Circuit 70.8; Supply Circuit 5.3 in·lb

Ambient Air Temperature

Operation -25 ... +60 °C; Storage -40 ... +70 °C

ABB EcoSolutions

Yes

EcoSolutions Profile

1SFC100125C0417

Environmental Product Declaration - EPD

1SFC132517D0201

CQC Certificate

CQC2008010304295498

Declaration of Conformity - CCC

2020980304001090

Declaration of Conformity - CE

2CMT004861

EU Data Act Compliance Declaration

1SFC132496M0201

Object Classification Code

Q

ETIM 7

EC000640 - Soft starter

eClass

V11.0 : 27370907

UNSPSC

39121521

IDEA Granular Category Code (IGCC)

4740 >> Soft starter

HS Code

8537.10
