ABB E215-16-11D Pushbutton 1 NO + 1 NC, Rated current: 16A/250 VACPDC, Button colour: green, Module width 0,5
Pricing
Request a quote
We reply within 24 hours
Overview
ABB E215-16-11D Pushbutton 1 NO + 1 NC, Rated current: 16A/250 VACPDC, Button colour: green, Module width 0,5 is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Maximum Switching Voltage: 250 V; Tightening Torque: 1.2-1.5 N·m; Switch Type: Double Interrupting Contacts; Material of Conductor: Copper.
Technical Specifications
- Manufacturer part number (MPN)
- E215-16-11D
- EAN / GTIN
- 7612270938834
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Maximum Switching Voltage
- 250 V
- Number of Main Contacts NC
- 1
- Number of Main Contacts NO
- 1
- Number of Poles
- 2P
- Tightening Torque
- 1.2-1.5 N·m
- Switch Type
- Double Interrupting Contacts
- Material of Conductor
- Copper
- Remarks
- Sealable in the On and Off positions
- Connecting Capacity
- Solid 1x1…6 mm²; Solid 2x2.5 mm²; Flexible 1x0.75…2x2.5 mm²
- Rated Voltage (U r )
- Lamp 48 ... 48 V
- Rated Operational Voltage
- acc. to EN 250 V AC; acc. to UL 508 240 V AC
- Rated Current (I n )
- 16 A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 0.5 W
- Power Watt
- 0.72 W
- Number of Contacts NC
- 1
- Number of Contacts NO
- 1
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Color
- Green
- Control Element Color
- Green
- Ambient Air Temperature
- Operation -25...+55 °C; Storage -40...+70 °C
- Degree of Protection
- IP20
- Environmental Information
- 2CCC441003C0201
- Width in Number of Modular Spacings
- 0.5
- Product Net Width
- 9 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 68 mm
- Built-In Depth ( t 2 )
- 68 mm
- EPLAN Data
- 9AAC407653_EPLAN
- CB Certificate
- 9AKK108466A3845
- CCC Certificate
- 9AKK108466A3830
- Declaration of Conformity - CE
- 2CCC441014D0201
- Declaration of Conformity - UKCA
- 9AKK108467A6137
- VDE Certificate
- 9AKK107991A9822
- ETIM 9
- EC001546 - Push button for distribution board
- UNSPSC
- 39122216
- eClass
- V11.0 : 27142302
- IDEA Granular Category Code (IGCC)
- 5210 >> Push button switch
- Object Classification Code
- S
- Standards
- EN60068-2-1; EN60068-2-2; EN60068-2-30; DIN EN 60669-1; VDE 0632-1; UL508
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Switching current
- 16 A
- Switching voltage
- 250 V
- Voltage type
- AC
- With signal lamp
- No
- Colour calotte
- Green
- Max. lamp power
- 0.72 W
- Lamp voltage
- 48 V
- Colour button
- Green
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 7612270938834
- SAP 1000225137
- Code 8124100
Product Documentation
More from ABB
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C32 A300MA
2CSR275180R3324
ABB
Lysbueautomat S-ARC1 M C16
2CSA275901R9164
ABB
YO XT5-XT6 24...60 Vac/dc
1SDA104925R1
ABB
Impressivo Service KIT DIM. Aluminium
2CKA006599A3036
ABB
ABB 2CSM277303R1801 E 9F14 GG4 is a 14X51 mm cylindrical fuse for circuits protection
ABB
Impressivo 2-H KAP WITH RAM 54/80 Black Matte
2TKA00004458
ABB

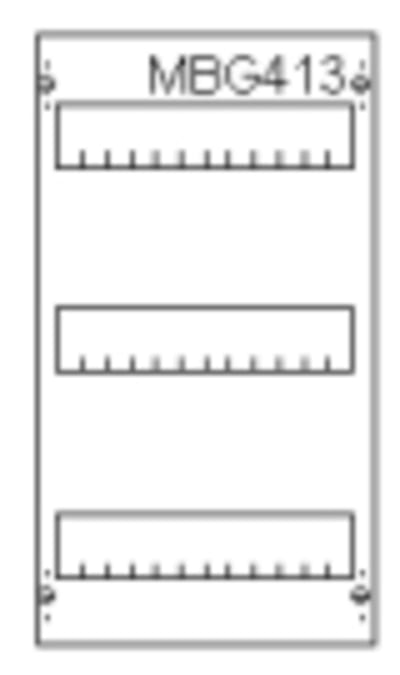

MBG413 Din-rail module
