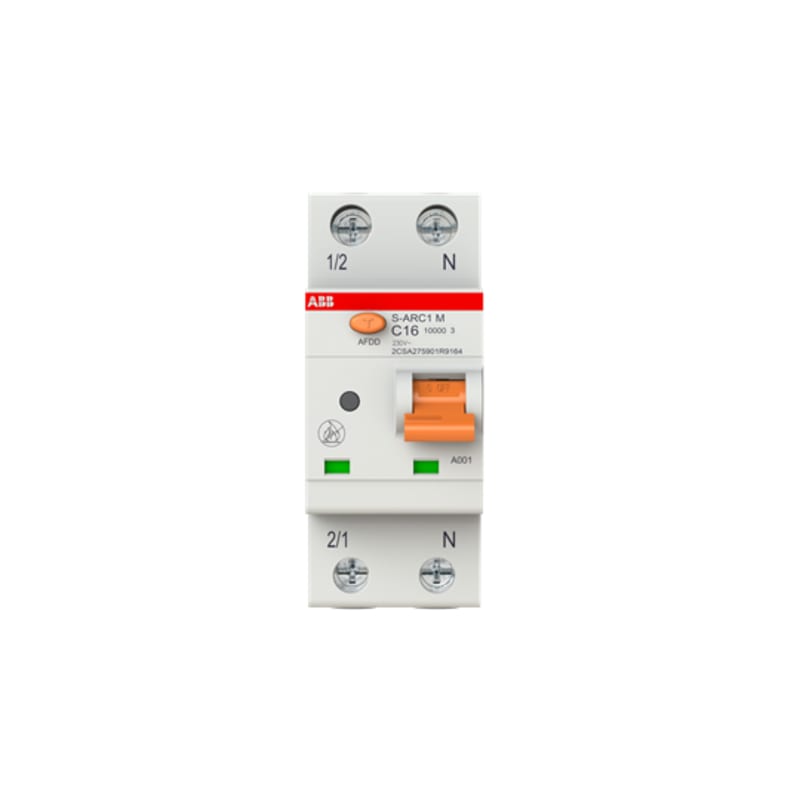

Lysbueautomat S-ARC1 M C16

ABB 2CSA275901R9164 — S-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated MCB in two modules, for the protection against short-circuit currents, overload, earth arc faults, parallel arc faults and series arc faults.

Manufacturer part number (MPN)

2CSA275901R9164

EAN / GTIN

8012542340416

Sales unit

pcs

Carbon Footprint (Full Lifecycle)

10.145854 kg CO₂ eq

EcoSolutions Profile

9AKK108471A1002

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 81.91 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Extended Product Lifetime

Product Durability

End Of Life Disassembling Instructions

9AKK108469A4799

Environmental Product Declaration - EPD

9AKK108468A8866

Dielectric Test Voltage

2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (I cu )

10 kA

Rated Service Short-Circuit Breaking Capacity (I cs )

7.5 kA

Power Supply Connection

Arbitrary

Contact Position Indication

Red ON / Green OFF

Energy Limiting Class

3

Electrical Endurance

10000 cycle

Mechanical Endurance

20000 cycle

Number of Protected Poles

1

Number of Poles

1P+N

Number of Modular Spacings per DIN Rail

2

Operating Characteristic

Instantaneous

Position of Neutral Terminals

Right

Tightening Torque

2.8 N·m

Accessory Type

Auxiliary contact; Auxiliary/Signal contact; Shunt trip; Undervoltage release; Overvoltage release

Housing Type

Insulation group I, RAL 7035

Screw Terminal Type

Failsafe Bi-directional Cylinder-lift Terminal

Includes

Fire protection switch

Accessories Available

Yes

Mounting Position of Accessories

Right

Number of Batteries

0

Connecting Capacity

Busbar 10 mm²; Rigid 1…25 mm²; Flexible 1…16 mm²

Wire Stripping Length

12 mm

Terminal Type

Screw Terminals

Actuator Type

Toggle

Tripping Characteristic

C

Rated Operational Voltage

230...240 V AC

Rated Insulation Voltage (U i )

500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Input Voltage Type

AC

Rated Current (I n )

16 A

Rated Short-Circuit Capacity

10 kA

Rated Frequency (f)

50 Hz

Power Loss

Total 2.8 W

Overvoltage Category

III

Number of Modules

2

Ambient Air Temperature

Operation -25 ... 55 °C; Storage -40 ... 70 °C

Reference Ambient Air Temperature

30 °C

Degree of Protection

Terminals IP20; Housing IP40

Pollution Degree

2

Environmental Conditions

28 cycles; with 55 °C / 90-96 %; and 25 °C / 95-100 %

Resistance to Vibrations

20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-27

30g 2 shocks 13 ms

Width in Number of Modular Spacings

2

Product Net Width

35 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Built-In Depth ( t 2 )

69 mm

Dimension Diagram

9AKK106930A8989

EPLAN Data

9AAC190689_EPLAN

Declaration of Conformity - CE

9AKK107045A1563

IMQ Certificate

9AKK107045A4216

VDE Certificate

9AKK107045A7202

Instructions and Manuals

9AKK106930A8985; 9AKK106930A8986

Mounting Type

DIN-Rail

Mounting Position

Any

ETIM 9

EC002694 - Miniature circuit breaker (MCB) with auxiliary device

UNSPSC

39121603

eClass

V11.0 : 27141906

IDEA Granular Category Code (IGCC)

4900 >> Miniature circuit breaker (MCB) with auxiliary device

Object Classification Code

F

Standards

IEC/EN 62606; IEC/EN 60898-1

Release characteristic

C

Rated voltage

240 V

Rated short-circuit breaking capacity according to EN 60898

10 kA

Voltage type

AC

Current limiting class

3

Frequency

50 Hz

Concurrently switching neutral conductor

Yes

Additional equipment attached at delivery

Fire protection switch

Rated voltage auxiliary device

230 V

Control voltage type auxiliary equipment

AC

Country of origin

Italy

HS Code

8536.30
