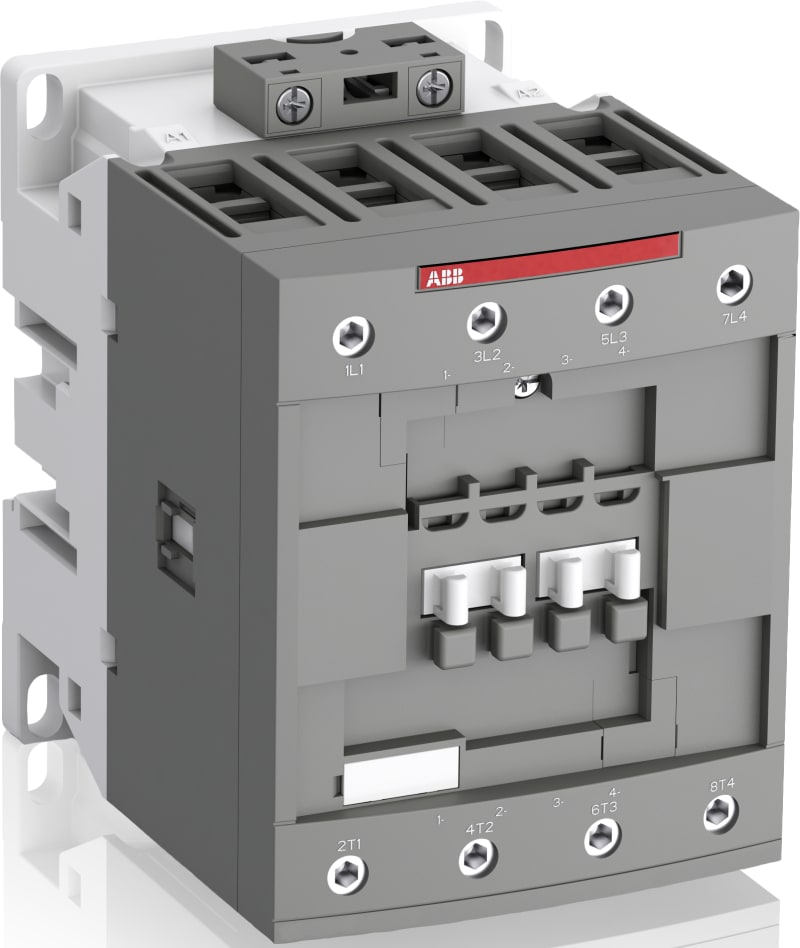

Contactor AF80-40-00-13 (AF80-40-00-13 100-250V50/60HZ-DC)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF80-40-00-13 100-250V50/60HZ-DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. AF80-40-00-13 100-250V50/60HZ-DC Contactor 90.
Technical Specifications
- Manufacturer part number (MPN)
- AF80-40-00-13 100-250V50/60HZ-DC
- EAN / GTIN
- 3471523133730
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 90 mm
- Height
- 125.5 mm
- Depth
- 116 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 37 kW
- Number of normally open contacts as main contact
- 4
- Rated operation current Ie at AC-3, 400 V
- 80 A
- Rated operation current Ie at AC-1, 400 V
- 125 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523133730
- SAP 1000687261
- Code 8394971
Product Documentation
