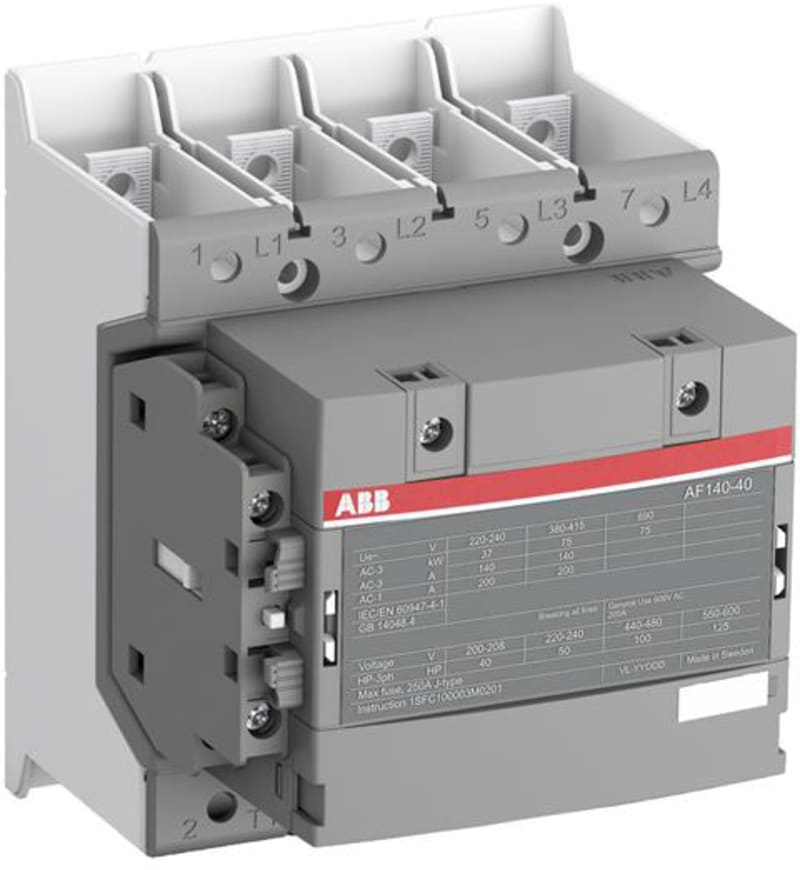

Contactor AF140-40-11B-13

ABB AF140-40-11B-13 — The AF140-40-11B-13 is a 4 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 75 kW / 400 V AC (AC-3) / and switching power circuits up to 200 A (AC-1) or 175 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Manufacturer part number (MPN)

AF140-40-11B-13

EAN / GTIN

7320500505205

HS code

8536.90

Sales unit

pcs

Product Net Width

120 mm

Product Net Depth / Length

128 mm

Product Net Height

150 mm

Dimension Diagram

1SFB535001G1121

Number of Main Contacts NO

4

Number of Main Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Auxiliary Contacts NC

1

Number of Poles

4P

Rated Operational Voltage

Main Circuit 690 V

Rated Frequency (f)

Main Circuit 60 Hz; Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 200 A

Rated Operational Current AC-1 (I e )

(690 V) 40 °C 200 A; (690 V) 60 °C 175 A; (690 V) 70 °C 160 A

Rated Operational Current AC-3 (I e )

(415 V) 55 °C 140 A; (440 V) 55 °C 140 A; (380 / 400 V) 55 °C 140 A; (220 / 230 / 240 V) 55 °C 140 A

Rated Operational Power AC-3 (P e )

(415 V) 75 kW; (440 V) 90 kW; (380 / 400 V) 75 kW; (220 / 230 / 240 V) 37 kW

Rated Breaking Capacity AC-3

8 x Ie AC-3

Rated Breaking Capacity AC-3e

8.5 x Ie AC-3e

Rated Making Capacity AC-3

10 x Ie AC-3

Rated Making Capacity AC-3e

12 x Ie AC-3e

Short-Circuit Protective Devices

gG Type Fuses 250 A

Rated Short-time Withstand Current Low Voltage (I cw )

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 200 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 674 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1460 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1168 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 477 A

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V; acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U imp )

Main Circuit 8 kV

Maximum Electrical Switching Frequency

(AC-1) 300 cycles per hour; (AC-3) 300 cycles per hour

Mechanical Durability

5 million

Maximum Mechanical Switching Frequency

300 cycles per hour

Coil Operating Limits

(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)

Rated Control Circuit Voltage (U c )

50 Hz 100 ... 250 V; 60 Hz 100 ... 250 V; DC Operation 100 ... 250 V

Coil Consumption

Holding at Max. Rated Control Circuit Voltage 50 Hz 30.7 V·A; Holding at Max. Rated Control Circuit Voltage 60 Hz 30.7 V·A; Holding at Max. Rated Control Circuit Voltage DC 2.8 V·A; Holding at Max. Rated Control Circuit Voltage DC 2.8 W; Pull-in at Max. Rated Control Circuit Voltage 50 Hz 220 V·A; Pull-in at Max. Rated Control Circuit Voltage 60 Hz 220 V·A; Pull-in at Max. Rated Control Circuit Voltage DC 275 V·A; Pull-in at Max. Rated Control Circuit Voltage DC 275 W

Power Loss

at Rated Operating Conditions per Pole 18 W

Operate Time

Between Coil De-energization and NO Contact Opening 40 ... 70 ms; Between Coil Energization and NO Contact Closing 20 ... 55 ms

Connecting Capacity Main Circuit

Flexible 2 x 10 ... 70 mm²; Rigid Cu-Cable 1 x 10 ... 95 mm²; Rigid Cu-Cable 2 x 10 ... 95 mm²

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²; Flexible 2x0.75 ... 2.5 mm²; Solid 2 x 1 ... 4 mm²; Stranded 2 x 1 .... 4 mm²

Connecting Capacity

Flexible 2 x 10 ... 70 mm²; Rigid Cu-Cable 2 x 10 ... 95 mm²

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40; acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20; acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Tightening Torque

Cable Lug 9 N·m; Main Circuit 8 N·m

Terminal Type

Main Circuit: Bars

NEMA Size

4

Horsepower Rating NEMA

(200 V AC) Three Phase 40 Hp; (230 V AC) Three Phase 50 Hp; (460 V AC) Three Phase 100 Hp; (575 V AC) Three Phase 100 Hp

Maximum Operating Voltage UL/CSA

Main Circuit 600 V

General Use Rating UL/CSA

(600 V AC) 175 A

Horsepower Rating UL/CSA

(200 ... 208 V AC) Three Phase 15 Hp; (200 V AC) Three Phase 40 hp; (208 V AC) Three Phase 40 hp; (220 ... 240 V AC) Three Phase 20 Hp; (220 ... 240 V AC) Three Phase 50 hp; (440 ... 480 V AC) Three Phase 40 Hp; (440 ... 480 V AC) Three Phase 100 hp; (550 ... 600 V AC) Three Phase 50 Hp; (550 ... 600 V AC) Three Phase 125 hp

Ambient Air Temperature

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C; Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C; Close to Contactor for Storage -40 ... 70 °C

Maximum Operating Altitude Permissible

Without Derating 3000 m

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility; UL 2799 Zero Waste To Landfill Validation available

EcoSolutions Profile

1SFC100125C0366

End Of Life Disassembling Instructions

1SFC100112M0001

Environmental Product Declaration - EPD

1SFC100092D0201

Improved Energy Efficiency for Customers

Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line; Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 87.8 %

ABS Certificate

14-LD1092198-PDA; 14-LD1092198-1-PDA-DUP

BV Certificate

BV_36353_A0BV

CB Certificate

SEMKO_SE-77317

CCS Certificate

GB14T00030

CQC Certificate

CQC2013010304604055

cULus Certificate

E73397_20140710

Declaration of Conformity - CE

2CMT2015-005439

Declaration of Conformity - UKCA

2CMT2020-006118

DNV Certificate

DNV_E-14043

LR Certificate

16-20064

PRS Certificate

TE_2092_880423_16

RINA Certificate

ELE060313XG_002

Object Classification Code

Q

ETIM 7

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4758 >> Iec Contactors

E-Number (Finland)

3707174

E-Number (Norway)

4117781

E-Number (Sweden)

3210323

HS Code

8536.90

• EAN 7320500505205
• SAP 1000692765
• Code 8302883
