Impressivo Frame 4-Hole 100mm Black Matte
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00004081 — Flush mounting cover plate for 2-gang cover plated accessories, such as double socket outlets. Also 1-gang accessories, such as switches, can be mounted with the adaptor 2519-xx. Suitable for both horizontal and vertical installation. The manufacture material is a durable high quality plastic. The surface is matt and easy to keep clean. Cleaning with a mild, standard household detergent. Be careful when cleaning with a powerful dissolvent.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00004081
- EAN / GTIN
- 6438199006062
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Type of Fastening
- Clamp; Screw
- Mounting Orientation
- Horizontal; Vertical
- Degree of Protection
- IP21
- Design Range
- Impressivo
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- Label Space Provided
- Without Label Space
- RAL Number
- RAL 9005 - Jet Black
- Color
- Black
- Number of Gangs
- 4-gang
- Number of Modules
- Horizontal 0; Vertical 0
- Product Net Width
- 100.0 mm
- Product Net Height
- 12.000 mm
- Product Net Depth / Length
- 100.0 mm
- Dimension Diagram
- 9AKK108470A8029
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000007 - Cover frame for domestic switching devices
- Colour
- Black
- Width
- 100 mm
- Halogen free
- Yes
- Height
- 12 mm
- Depth
- 100 mm
- Number of units
- 4
- With hinged lid
- No
- Surface protection
- Lacquered
- Label space/information surface
- No
- Material quality
- Thermoplastic
- Mounting direction
- Horizontal and vertical
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Suitable for wall duct
- No
- Suitable for built-in installation
- No
- Flush-mounted installation
- Yes
- Number of units horizontal
- 4
- Number of units vertical
- 4
- With mounting grid
- No
- Number of switch inserts
- 4
- Anti-bacterial treatment
- No
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 6438199006062
- SAP 1200495459
- Code 82651697
Product Documentation
More from ABB
ABB
Frame 2-Hole, 80mm, PURE Steel
2CKA001754A4318
ABB
ABB 1SDA066637R1 Chassis Group FOR Mechanical Interlock Horizontal Between 2 C.BREAKER XT1...XT4
ABB

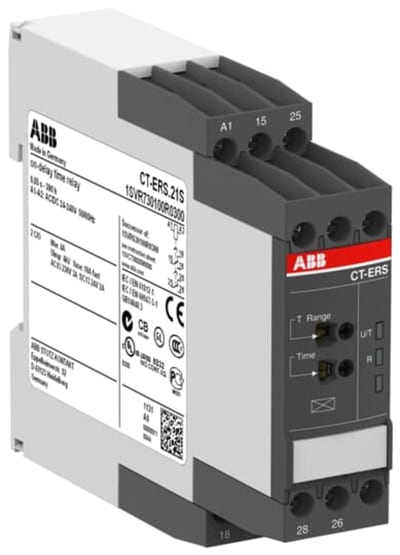

TIME Relay CT-ERS.21S
1SVR730100R0300
ABB
ABB GMB1 BOX-SIZE 1 Gemini IP66 Insulating switchboards
ABB

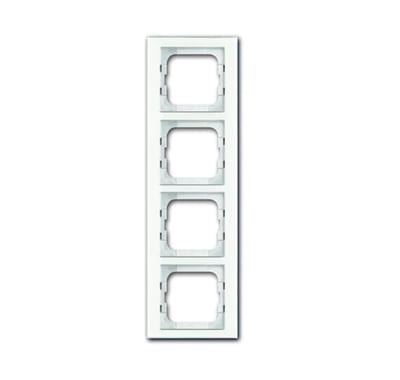

ABB 1724-280 for vertical or horizontal installation.
ABB

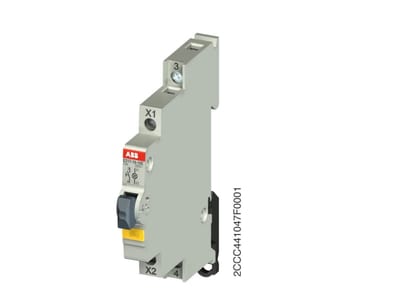

Illuminated Push Button E217-16-01E
2CCA703253R0001
ABB
Illuminated Push Button E217-16-10D48
2CCA703172R0001
ABB

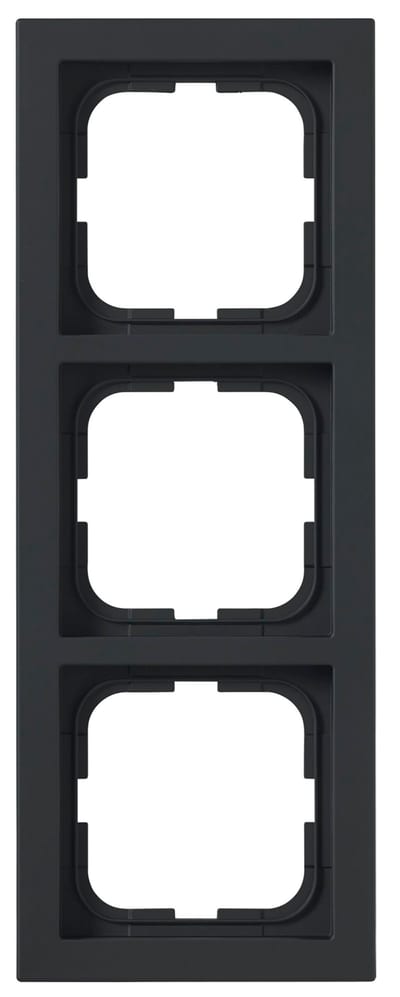

Impressivo Frame 3-Hole 85mm Black Matte
2TKA00004074
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2TKA00004081?
- 2TKA00004081 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 2TKA00004081.
- What is the HS code for 2TKA00004081?
- The customs tariff (HS) code for 2TKA00004081 is 8538.90.
- Who manufactures 2TKA00004081?
- 2TKA00004081 is a ABB product in the Electrical Components range.
- Is a datasheet available for 2TKA00004081?
- Yes — the 2TKA00004081 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2TKA00004081?
- The minimum order quantity is 1.
- Is 2TKA00004081 available?
- Yes — 2TKA00004081 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
