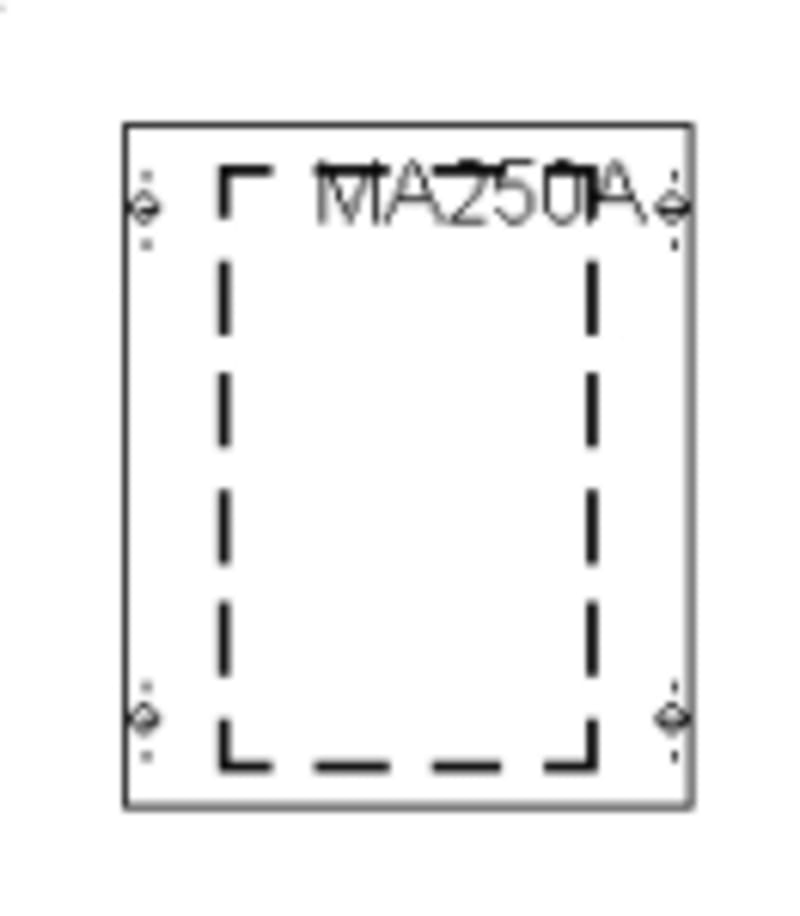

MBA250A Powerbr. Module
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041807R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Universal switch unequipped, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units,, usable width of 170 mm, unequipped for the installation of 1 Universal switch OT250E, for busbar system -pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 200 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041807R9999
- EAN / GTIN
- 4011617418078
- HS code
- 8536.90
- Sales unit
- pcs
- Rated Operational Current (I e )
- 250 A
- Number of Switches
- 0
- Number of Mountable Devices
- 1
- Number of Panel Heights
- 2
- Enclosure Module Equipment
- Excludes Devices
- Enclosure Mounting Frame
- WR or EDF
- Device
- OT250E
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 000
- DIN Place Units
- 24
- Meter Boards
- 0
- Module Function
- Universal switch unequipped
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 250 A
- Color
- Light grey
- Number of Modules
- 24
- Product Net Width
- 250 mm
- Product Net Height
- 300 mm
- Product Net Depth / Length
- 120 mm
- Section Width
- 1
- Built-In Depth ( t 2 )
- 200 mm
- EPLAN Data
- 9AAF623206_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112298M5601
- ETIM 9
- EC001897 - Distributor assembly switch
- eClass
- V11.0 : 27400611
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011617418078
- SAP 1000120226
- Code 81099038
Product Documentation
More from ABB
ABB
MBA195T for XT4 (2CPX042907R9999)
ABB
Ekip G Dip LS/In In=400 4P XT5
1SDA100701R1
ABB
Illuminated Push Button E217-16-10D220
2CCA703167R0001
ABB
MBB116 Blind module (2CPX041722R9999)
ABB
ABB 2CDL240102R1630 PS 4/30/16 H AFDD Busbar 4PH., 30PINS, 16 MM²
ABB
Warning Light LED 230V/25MA RED
2TKA000874G1
ABB

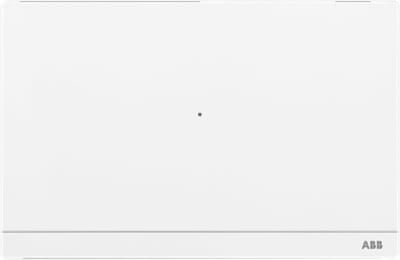

WMIP Smart Access Punkt PRO
D04011
ABB

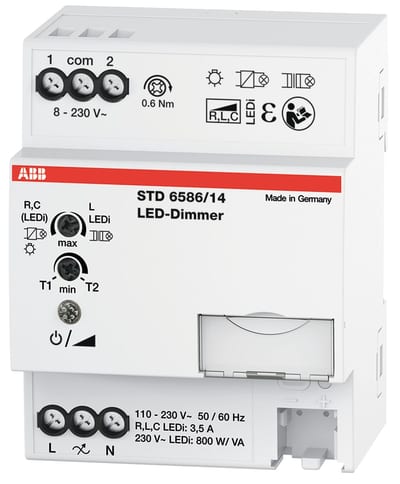

DIN DIM. UNIV. LED 20-800VA
