ABB
DIN DIM. UNIV. LED 20-800VA
Part numberSTD6586/14EAN / GTIN4011395251775HS code8536.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

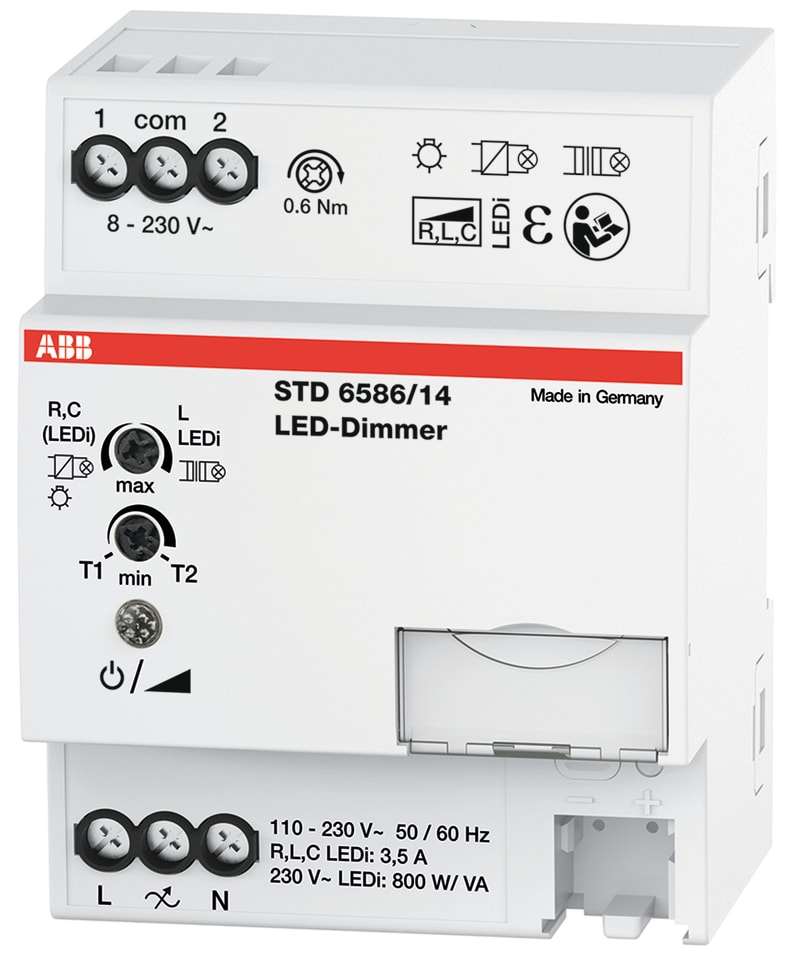

ABB STD6586/14 Din dimmer universal led 20-800VA, STD 6586/14.
Technical Specifications
- Manufacturer part number (MPN)
- STD6586/14
- EAN / GTIN
- 4011395251775
- HS code
- 8536.90
- Sales unit
- pcs
- Assembly arrangement
- Modular device for domestic switching devices
- Method of operation
- Push button
- Colour
- Grey
- Halogen free
- No
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Click in mounting
- Light value memory
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 7035
- Serial dimmer
- Yes
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- Yes
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal power
- 110–250 VA
- Nominal voltage
- 110–230 V
- Control voltage
- 8–230 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 1–4 mm²
- Device width
- 70 mm
- Device height
- 90 mm
- Device depth
- 65 mm
- Constant light output (CLO)
- No
- Number of modules (module system)
- 4
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- App control via Bluetooth
- No
- Nominal power resistive load
- 10–250 W
- Nominal power inductive load
- 110–250 VA
- Nominal power capacitive load
- 110–250 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Device emplacement
- Indoor positioning
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395251775
- SAP 1200124557
- Code 81982292
