ABB 2CDL240102R1630 PS 4/30/16 H AFDD Busbar 4PH., 30PINS, 16 MM²
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CDL240102R1630 PS 4/30/16 H AFDD Busbar 4PH., 30PINS, 16 MM² is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Sub-Function: Space for auxiliary contatct; Sub-Function 2: AFDD; Suitable For: DS-ARC1; Suitable for Product Class: DS-ARC1 (AFDD).
Technical Specifications
- Manufacturer part number (MPN)
- 2CDL240102R1630
- EAN / GTIN
- 4016779063159
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Sub-Function
- Space for auxiliary contatct
- Sub-Function 2
- AFDD
- Suitable For
- DS-ARC1
- Suitable for Product Class
- DS-ARC1 (AFDD)
- Pitch
- 18.0
- Number of Poles
- 4P
- Number of Phases
- 4-phase
- Number of Mountable Devices
- 15
- Number of Terminals (N term )
- 30
- Accessory Type
- Busbar
- Connection Type
- Pin
- Options Provided
- HAFDD
- Rated Cross-Section
- 16 mm²
- Rated Operational Voltage
- 230 / 400 V AC; Maximum 400 V
- Voltage Protection Level ( Up)
- 4
- Rated Uninterrupted Current (I u )
- 80 A
- Rated Frequency (f)
- 50 / 60 Hz; DC
- Overvoltage Category
- III
- RAL Number
- RAL 7035 - Light Grey
- Color
- grey
- Pollution Degree
- 2
- Width in Number of Modular Spacings
- 45
- Product Net Width
- 902 mm
- Product Net Height
- 30 mm
- Product Net Depth / Length
- 24 mm
- Declaration of Conformity - CE
- 9AKK108469A0841
- Declaration of Conformity - UKCA
- 9AKK108469A0914
- Mounting Position
- any
- ETIM 9
- EC000215 - Phase busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27371306
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Standards
- IEC/EN 60947-1
- Colour
- Grey
- Insulated
- Yes
- Cross section
- 16 mm²
- Rated permanent current Iu
- 80 A
- Length
- 24 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Rated surge voltage
- 4 kV
- Type of electric connection
- Pin
- Suitable for devices with auxiliary switch
- Yes
- Suitable for number of devices
- 15
- Max. rated operation voltage Ue
- 400 V
- Module width
- 18 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779063159
- SAP 1200611361
- Code 83032889
Product Documentation
More from ABB
ABB
Warning Light LED 230V/25MA RED
2TKA000874G1
ABB
WMIP Smart Access Punkt PRO
D04011
ABB
DIN DIM. UNIV. LED 20-800VA
STD6586/14
ABB

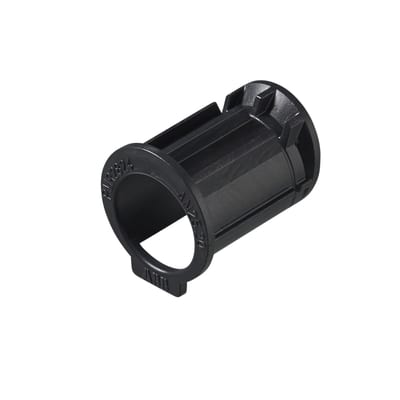

AN25.20 RED.SPIGOT 25-20mm
