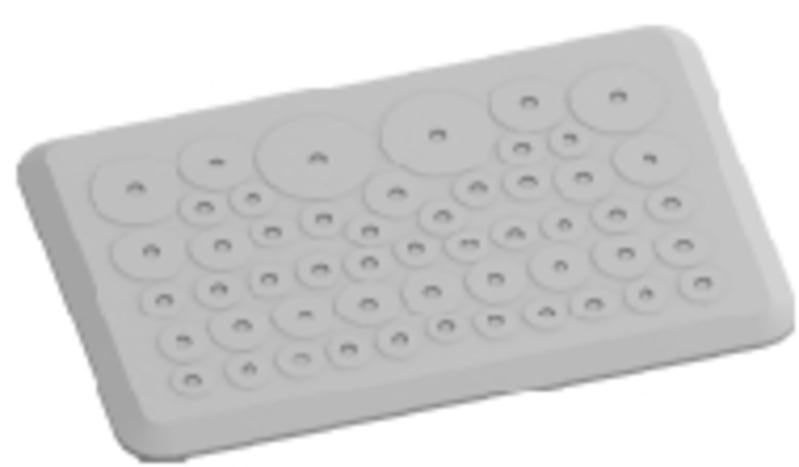

ABB 2CPX010450R9999 TZ101 Plastic Membrane Flange IP55 TwinLine-G
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX010450R9999 is a plastic membrane flange with integrated gasket for ABB TwinLine-G (SZ) meter cabinets and TwinLine wall and standing cabinets. The 223 x 147 x 20 mm plate is tool-free mounted using a locking gear and accommodates a range of line diameters including 2 x 6–32.5 mm, 4 x 6–19 mm and 31 x 6–11 mm. IP55 rated with straight profile and untreated surface. TZ101 membrane flanges are factory-fitted to the top openings of TwinLine-G (SZ).
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX010450R9999
- EAN / GTIN
- 4011617104506
- Sales unit
- pcs
- IP rating
- IP55
- Model Number
- Membrane
- Number of Connection Holes
- 0
- Enclosure Type
- Flange
- Product Type
- Straight
- Accessories Available
- No
- Accessory Group
- Flange
- Number of Batteries
- 0
- Surface Finishing
- Untreated
- Material
- Plastic
- Product Net Width
- 223 mm
- Product Net Height
- 147 mm
- Product Net Depth / Length
- 20 mm
- Thickness
- 3 mm
- EPLAN Data
- 9AAC184273_EPLAN
- Declaration of Conformity - CE
- 2CPC100021X0201
- Instructions and Manuals
- 2CPC133967M5601
- ETIM 9
- EC000211 - Gland plate for enclosure/cabinet
- eClass
- V11.0 : 27142421
- Object Classification Code
- U
- Width
- 223 mm
- Model
- Membrane
- Height
- 147 mm
- Depth
- 20 mm
- Surface protection
- Untreated
- Pre-stamping
- Yes
- Type
- Straight
- Thread type
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617104506
- SAP 1000690347
- Code 8299319
Product Documentation
