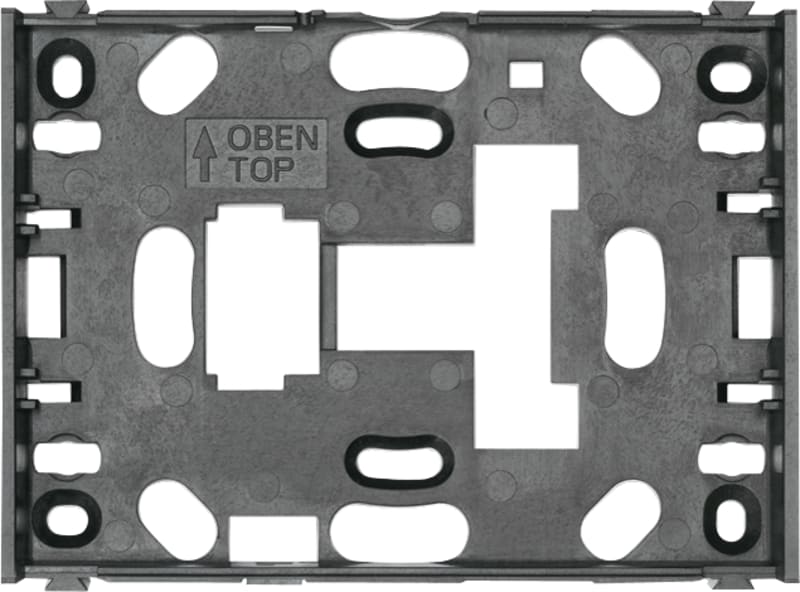

ABB Busch-priOn 6346/10-101-500 Support Frame 1-Gang Flush Mount
Pricing
Request a quote
We reply within 24 hours
Product Description
The ABB 6346/10-101-500 is a 1-gang flush-mounted support frame for the Busch-priOn KNX control system. It accommodates and terminates rotary, 1-gang and 3-gang control elements, flush-mounted Watchdog units, and the standard top, bottom, IR/proximity, display/RTC and temperature-sensor end strips. It also provides contacting for bus couplers 6120/12-101 and 6120/13, the 6920/13 power mains coupler and the 6920/40 switch/blind actuator. The body is black thermoplastic (similar to RAL 9005) with an IP20 rating for vertical mounting in dry indoor locations.
Technical Specifications
- Manufacturer part number (MPN)
- 6346/10-101-500
- EAN / GTIN
- 4011395131190
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000073B7299
- Mounting Type
- Flush Mounted
- Mounting Orientation
- Vertical
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA000073B7389
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Design Range
- priOn
- Surface Finishing
- Untreated; Matt
- Material
- Thermoplastic
- RAL Number
- Similar to RAL 9005
- Color
- black
- Product Net Width
- 100 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 11 mm
- Dimension Diagram
- 2CKA000097E0654
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000013 - Base plate for flush mounted installation
- ETIM 10
- EC000013 - Base plate for surface mounted wiring devices
- eClass
- V11.0 : 27144010
- Colour
- Black
- Model
- 1-fold
- Halogen free
- Yes
- Surface protection
- Untreated
- Material quality
- Thermoplastic
- Mounting direction
- Vertical
- Suitable for installation duct
- No
- Transparent
- No
- Device width
- 100 mm
- Device height
- 71 mm
- Device depth
- 11 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395131190
- SAP 1000464453
- Code 8745278
