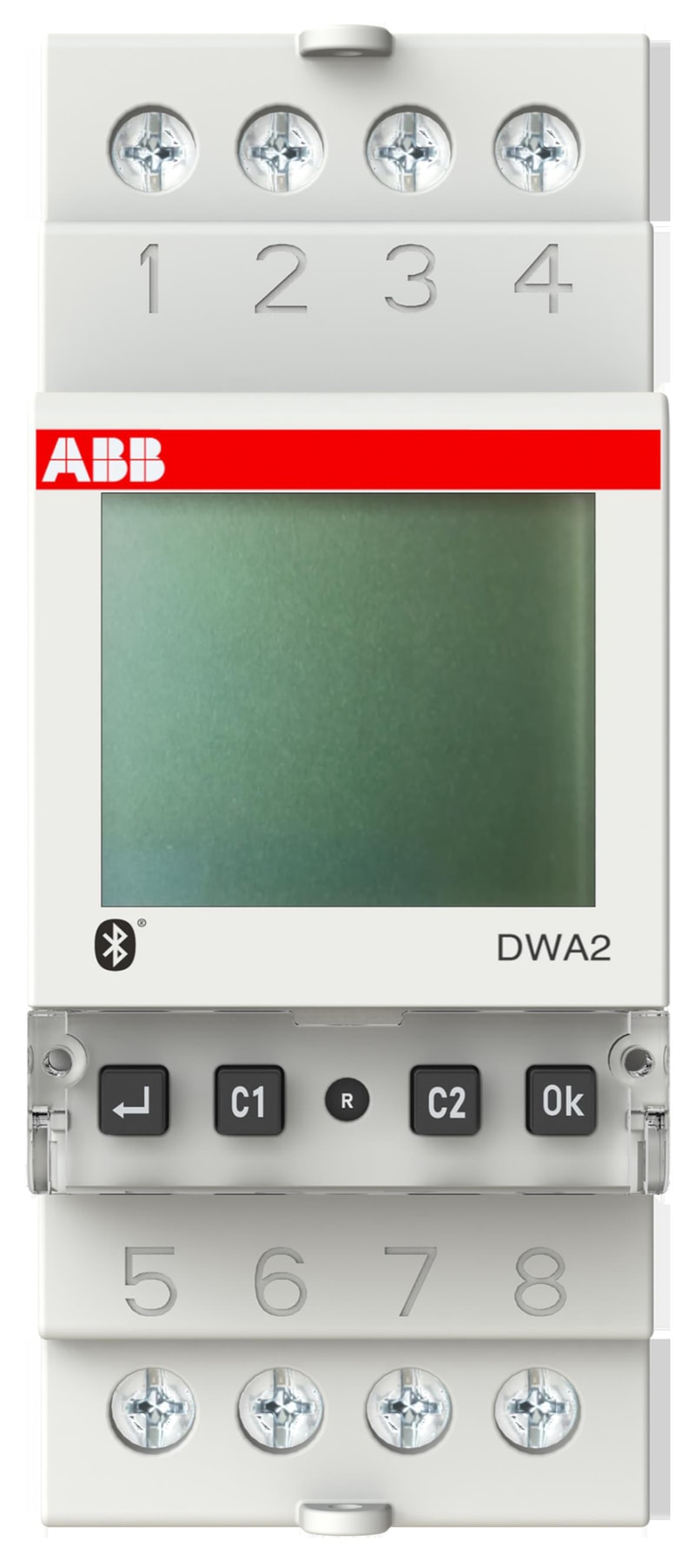

ABB 2CSM222501R1000 digital time switch, weekly and asto programming, two channels

ABB 2CSM222501R1000 digital time switch, weekly and asto programming, two channels is listed under HVAC & Refrigeration / Thermostats & Controls. HS code: 8536.49.

Manufacturer part number (MPN)

2CSM222501R1000 EAN / GTIN: 8012542225010 Sales unit: pcs Function: Weekly astro Maximum Load Capacity: 16 A; 10 A Power Supply: 230 V AC Accuracy: ± 0.5sec/24h Number of Channels: 2 Maximum Number of Programs: 120 Tightening Torque: 0.5 N·m minimum Switching Time: 1 min Contact Type: Change-Over (CO) Meter Type: digital Options Provided: With running reserve Number of Batteries: 1 Battery Size: CR2032 Battery Chemical Composition: Lithium Metal Battery Integration Type: Replaceable Non-Rechargeable Battery Life: 5 year Battery Weight: 0.003 kg Battery Lithium Amount: 0.07 g Battery Report UN 38.3: C-601-00 Connecting Capacity: Solid 2.5 mm² Communication Protocol: Bluetooth Operational Voltage: 195.5 … 253 V AC Supply Voltage: 230 V AC Rated Impulse Withstand Voltage (U imp ): Maximum 4 kV Maximum Switching Current: 16 A Rated Frequency (f): 50 ... 60 Hz Maximum Switching Power: 4000 W Power Consumption (@P cons ): 2 W Power Loss: Total 2 W Rated Switching Capacity: 2000 W; FluorescentLamps 600 V·A; 2000 W; 600 V·A; 500 W Ambient Air Temperature: Operation -20 ... +50 °C; Storage -25 ... +70 °C Degree of Protection: Housing IP20 Width in Number of Modular Spacings: 2 Product Net Width: 35 mm Product Net Height: 65 mm Product Net Depth / Length: 87 mm Declaration of Conformity - CE: 2CSC441018D2701 Instructions and Manuals: 2CSM441044D0201 Mounting Type: DIN-Rail ETIM 9: EC002305 - digital time switch for distribution board UNSPSC: 39122208 Dangerous Goods UN Number: UN 3090 eClass: V11.0 : 27200110 IDEA Granular Category Code (IGCC): 5188 >> digital time switch for distribution board Object Classification Code: K Standards: EN 60730-2-7; EN-301 489-17; EN-300 328; EN-62479; EN 50581 Shortest switching time channel 1: 1 s Shortest switching time channel 2: 1 s Mounting method: DIN rail Voltage type (supply voltage): AC Frequency supply voltage: 50–60 Hz Autonomy in years: 5 Accuracy per day: 0.5 s Text guidance in display: Yes External programming: Yes With memory card: No 60 min program: No 24 h program: Yes Weekly program: Yes Annual program: No Holiday program: Yes Impulse program: Yes Cycle program: Yes Astro program: Yes Random program: Yes Hour meter: Yes Mains synchronous: Yes Quartz controlled: Yes Radio-controlled: No GPS (global positioning system): No Number of memory locations: 400 Automatic switching summer/winter time: Yes Suitable for manual operation: Yes External push button input: Yes Switching preselection: Yes Nominal switching current at 250 V AC: 16 A Potential free switch contact: Yes Width: 35 mm Height: 65 mm Depth: 87 mm Country of origin: Italy

HS Code

8536.49

• EAN 8012542225010
• SAP 1200452135
• Code 82520733
