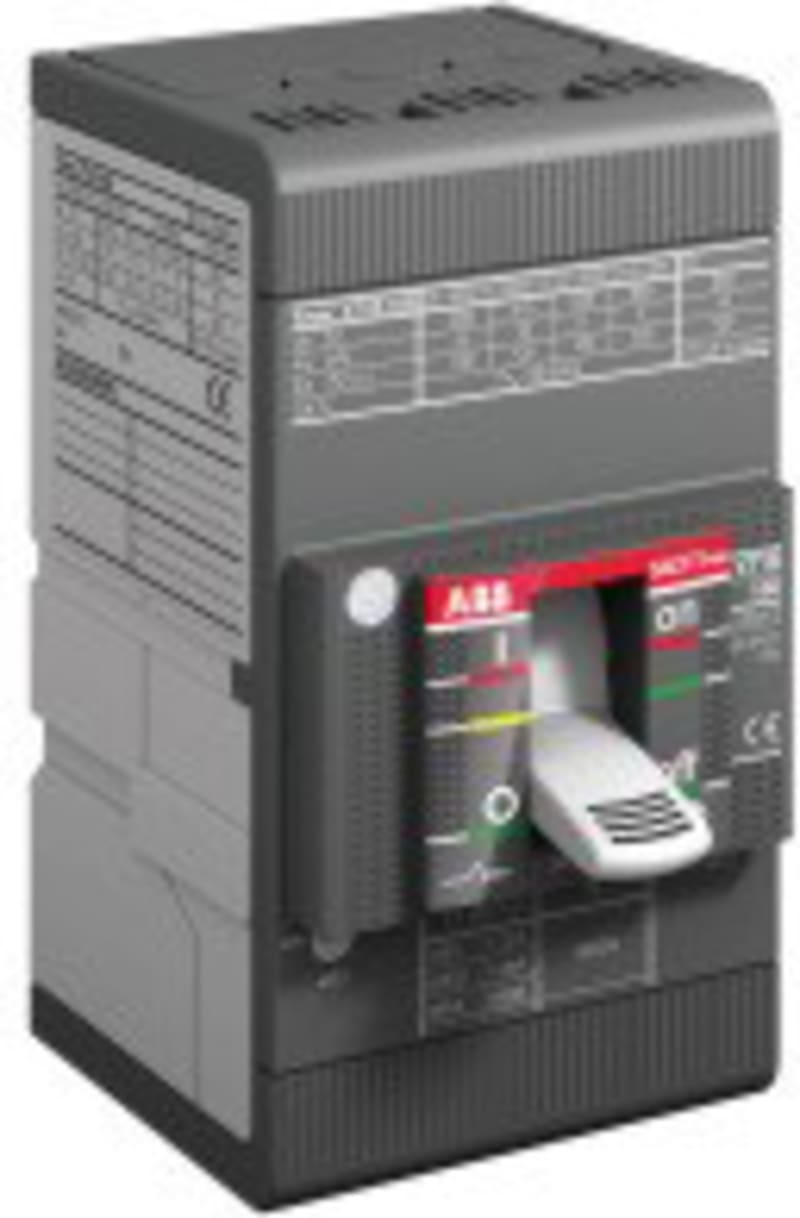

ABB SACE Tmax XT1B 160 Moulded-Case Circuit Breaker — TMD R50, In=50 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SDA066804R1 SACE Tmax XT1B 160 moulded-case breaker, 3-pole, 50A thermal-magnetic trip unit (TMD). 18kA breaking capacity at 400V. Fixed front connection. Installed as the primary motor branch-circuit protection device between the incoming feeder and the contactor.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT1 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT1B 160 TMD R50 3p FF
- ABB order code (MPN)
- 1SDA066804R1
- EAN / GTIN
- 8015644007119
- ABB / SAP material no.
- 1000746366
- Frame
- XT1 (160 A frame)
- Breaking-capacity class
- B
- Rated ultimate breaking capacity Icu (415 V AC)
- 18 kA
- Trip unit
- TMD R50
- Rated uninterrupted current In
- 50 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Material
- Glass-reinforced polyester housing
- Classification / Approval
- IEC 60947-2, UL 489
- HS Code
- 8536.20
