ABB Mistral 65 Distribution Enclosure 36-Module 3-Row IP65 Transparent Door
Pricing
Request a quote
We reply within 24 hours
Product Description

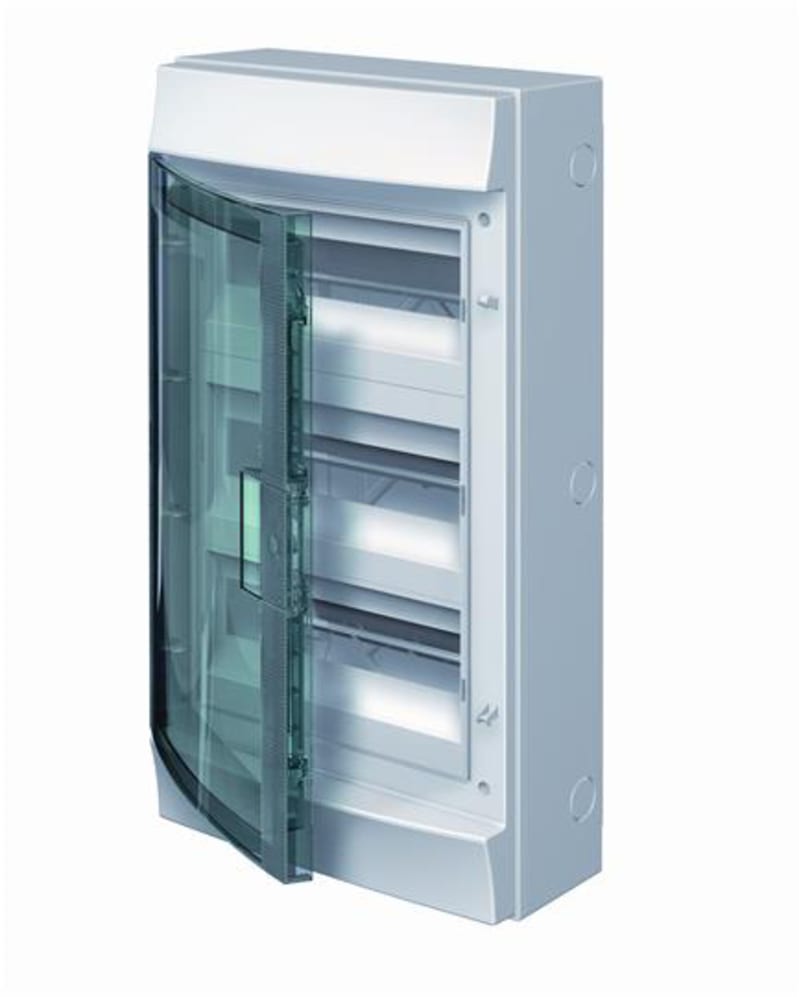

ABB Mistral 65 is a surface-mounted distribution enclosure with 36 modules across 3 rows and a transparent lockable door, rated IP65. Overall dimensions are 320 x 600 x 155 mm with a built-in area of 252 x 528 mm and 98 mm mounting depth. Housing material is halogen-free plastic, glow-wire tested to 650 degC, and finished RAL 7035.
Technical Specifications
- Manufacturer part number (MPN)
- Group panel 36M 3R m/Blue-Grøn låge IP65
- EAN / GTIN
- 8000126099331
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Modular width
- 36 modules
- Mounting method
- Surface mounted
- Colour
- Grey
- Width
- 320 mm
- UV resistant
- No
- Height
- 600 mm
- Depth
- 155 mm
- RAL-number
- 7035
- With mounting plate
- No
- Built-in depth
- 98 mm
- Number of rows
- 3
- Built-in height
- 528 mm
- Type of covering
- Door
- Built-in width
- 252 mm
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 84 mm
- DIN-rail
- Yes
- Sealable
- No
- Housing material
- Plastic
- With N-disconnect slide
- No
- Width in number of modular spacings
- 12
- Type of door
- Single
- Degree of protection (IP)
- IP65
- Transparent cover/door
- No
- With lock
- Yes
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Italy
Standards & Compliance
- Material
- Halogen-free thermoplastic, grey RAL 7035
- HS Code
- 8538.10
Cross References
- EAN 8000126099331
- SAP 1000599731
- Code 8219505
- ABB 1SL1206A00
- ABB type 65P12X32
Product Documentation
More from ABB
ABB
AF09-40-00-13 100-250V AC/DC
AF09-40-00-13 100-250V50/60HZ-DC
ABB

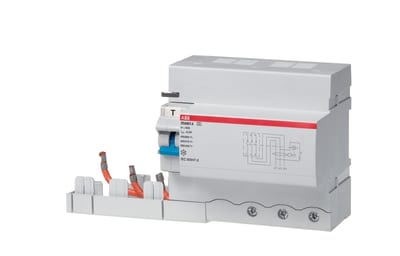

ABB DDA803 RCD Block — 3-Pole, Type A APR, 63 A, 30 mA, 10 ms Delay, for S800 MCB
2CSB803401R1630
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Switch-Disconnector — 4-Pole
1SDA068170R1
ABB

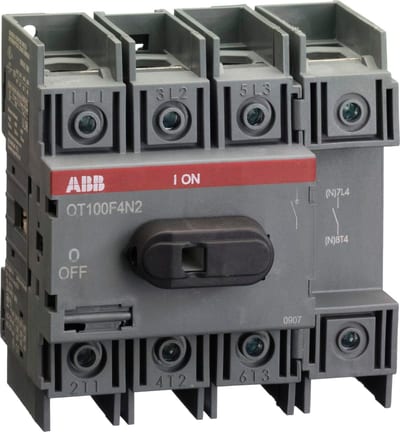

Load-Break Switch OT100F4N2
ABB
ABB Indicator light with maintenance-free LED, LED colour: yellow 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC Module width 0,5 2CCA703408R0001
ABB

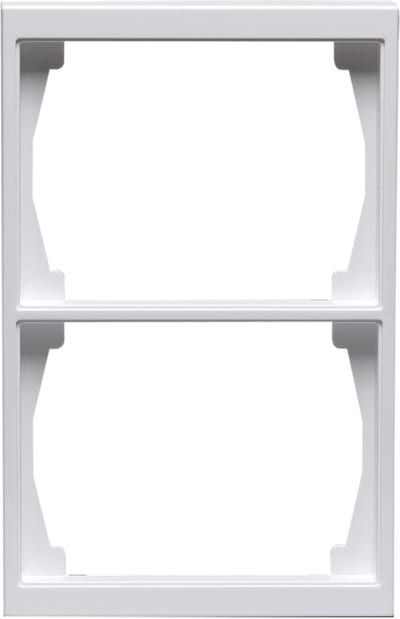

Frame 2V, 100mm, White
1722F100-84
ABB

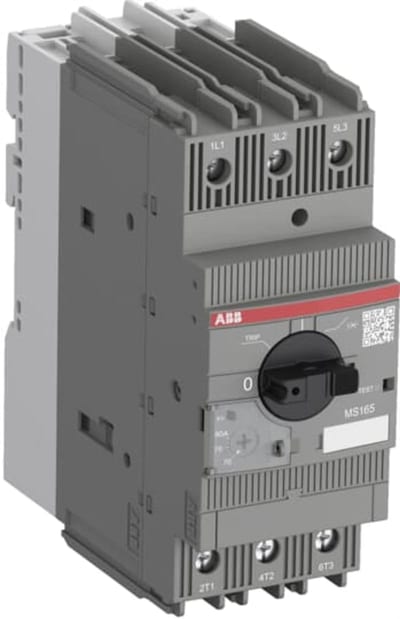

Motor protection circuit breaker 70 - 80 A
MS165-80
ABB

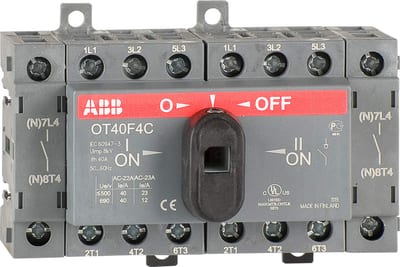

ABB OT40F4C 40A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
