Frame 2V, 100mm, White
Pricing
Request a quote
We reply within 24 hours
Product Description

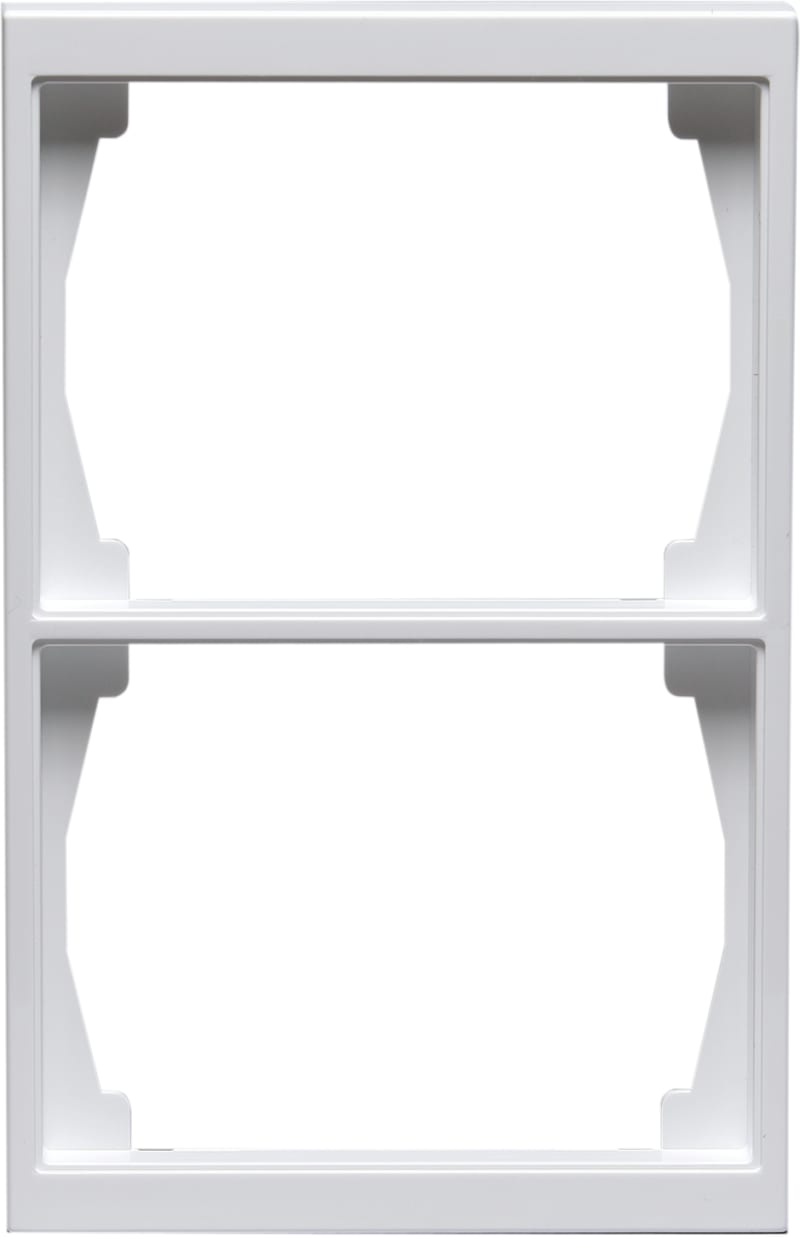

ABB 1722F100-84 — Flush mounting cover plate for 2-gang cover plated accessories, such as double socket outlets. Also 1-gang accessories, such as switches, can be mounted with the adaptor 2519-xx. Suitable for both horizontal and vertical installation. The manufacture material is a durable high quality plastic. The surface is glossy and easy to keep clean. Cleaning with a mild, standard household detergent. Be careful when cleaning with a powerful dissolvent.
Technical Specifications
- Manufacturer part number (MPN)
- 1722F100-84
- EAN / GTIN
- 6418677328015
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Type of Fastening
- Clamp; Screw
- Mounting Orientation
- Horizontal; Vertical
- Degree of Protection
- IP21
- Environmental Information
- 9AKK107680A2951
- Design Range
- Impressivo
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic; Thermoplastic
- Label Space Provided
- Without Label Space
- RAL Number
- RAL 9016 - Traffic White
- Color
- White
- Number of Gangs
- 2-gang
- Number of Modules
- Horizontal 0; Vertical 0
- Product Net Width
- 100 mm
- Product Net Height
- 12 mm
- Product Net Depth / Length
- 156 mm
- Dimension Diagram
- 9AKK108470A8018
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000007 - Cover frame for domestic switching devices
- Colour
- White
- Width
- 100 mm
- Halogen free
- Yes
- Height
- 12 mm
- Depth
- 156 mm
- Number of units
- 2
- With hinged lid
- No
- Surface protection
- Untreated
- Built-in height
- 100 mm
- Built-in width
- 156 mm
- Label space/information surface
- No
- Material quality
- Thermoplastic
- Mounting direction
- Horizontal and vertical
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Suitable for wall duct
- No
- Suitable for built-in installation
- No
- Flush-mounted installation
- Yes
- Number of units horizontal
- 2
- Number of units vertical
- 2
- Diameter bore hole (opening)
- 74 mm
- With mounting grid
- No
- Number of switch inserts
- 2
- Anti-bacterial treatment
- No
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 6418677328015
- SAP 1000428553
- Code 820635
Product Documentation
