100-250V AC/DC NF40E-13

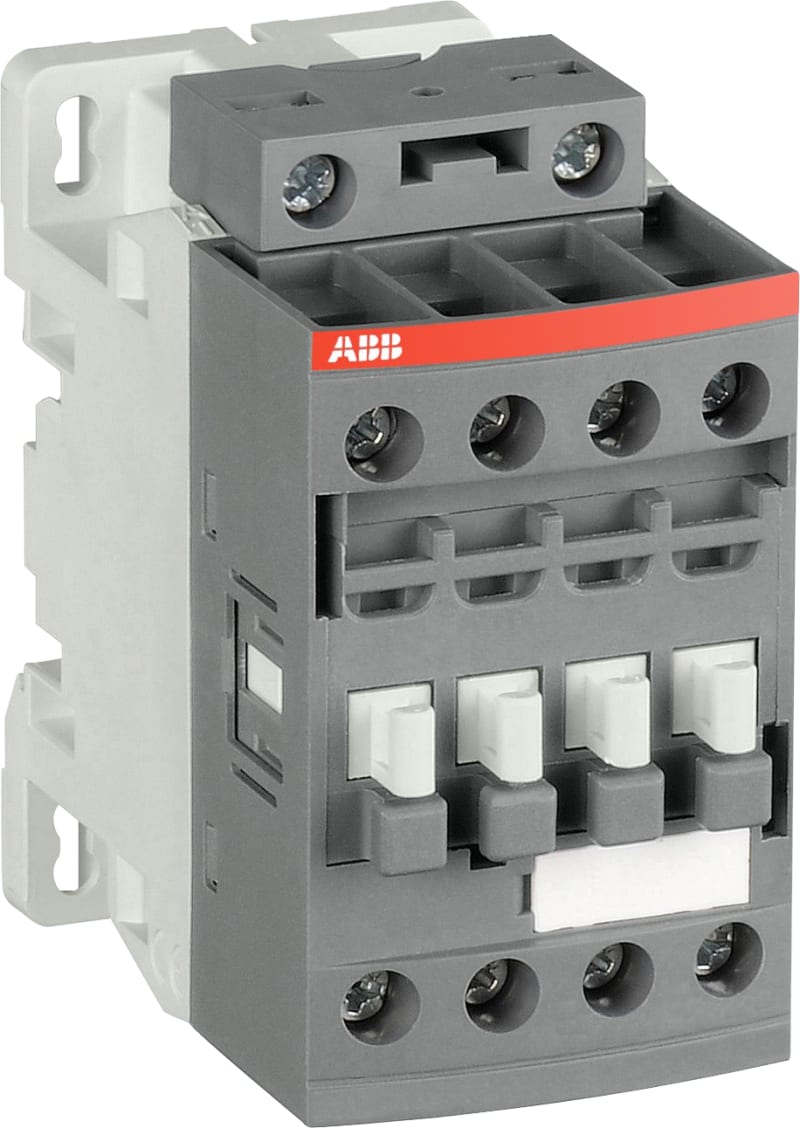

ABB NF40E-13 — NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min.. Uc max. Only four coils cover control voltages between 24.500 V 50/60 Hz or 20.500 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. NF contactor relays have built-in surge protection and do not require additional surge suppressors. - Poles: 4-pole contactor relays - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.

Manufacturer part number (MPN)

NF40E-13

EAN / GTIN

3471523100039

Sales unit

pcs

Package quantity

54 pcs

Country of Origin

India

Lead Time

0 day

Product Sales Status

Active

Product Net Width

45 mm

Product Net Depth / Length

77 mm

Product Net Height

86 mm

Number of Auxiliary Contacts NO

4

Number of Auxiliary Contacts NC

0

Number of Poles

4P

Standards

IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13

Rated Operational Voltage

Auxiliary Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz; Control Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I e )

(500 V) 2 A; (690 V) 2 A; (24 / 127 V) 6 A; (220 / 240 V) 4 A; (400 / 440 V) 3 A

Rated Operational Current DC-13 (I e )

(24 V) 6 A / 144 W; (48 V) 2.8 A / 134 W; (72 V) 1 A / 72 W; (110 V) 0.55 A / 60 W; (125 V) 0.55 A / 69 W; (220 V) 0.27 A / 60 W; (250 V) 0.27 A / 68 W; (400 V) 0.15 A / 60 W; (500 V) 0.13 A / 65 W; (600 V) 0.1 A / 60 W

Rated Short-time Withstand Current Low Voltage (I cw )

for 0.1 s 140 A; for 1 s 100 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-5-1 690 V; acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Maximum Electrical Switching Frequency

(AC-15) 1200 cycles per hour; (DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency

6000 cycles per hour

Rated Control Circuit Voltage (U c )

50 Hz 100 ... 250 V; 60 Hz 100 ... 250 V; DC Operation 100 ... 250 V

Power Loss

at 6 A per Pole 0.1 W

Operate Time

Between Coil De-energization and NC Contact Closing 13 ... 98 ms; Between Coil De-energization and NO Contact Opening 11 ... 95 ms; Between Coil Energization and NC Contact Opening 38 ... 90 ms; Between Coil Energization and NO Contact Closing 40 ... 95 ms

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied)

2 x M4 Screws Placed Diagonally

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Rigid Solid 1/2x 1 ... 2.5 mm²; Rigid Stranded 1/2x 1 ... 2.5 mm²

Connecting Capacity Control Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Rigid Solid 1/2x 1 ... 2.5 mm²; Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length

Auxiliary Circuit 10 mm; Control Circuit 10 mm

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20; acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

Tightening Torque

Auxiliary Circuit 1.2 N·m; Control Circuit 1.2 N·m

Terminal Type

Screw Terminals

Connecting Capacity Auxiliary Circuit UL/CSA

Rigid Solid 1/2x 18-14 AWG; Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 11 in·lb; Control Circuit 11 in·lb

Ambient Air Temperature

Close to Contactor for Storage -60 ... +80 °C; Near Contactor for Operation in Free Air -40 ... 70 °C

Climatic Withstand

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27

Closed, Shock Direction: B1 25 g; Open, Shock Direction: B1 5 g; Shock Direction: A 30 g; Shock Direction: B2 15 g; Shock Direction: C1 25 g; Shock Direction: C2 25 g

Resistance to Vibrations

4g Closed Position & 2g Open position 5 ... 300 Hz

Pollution Degree

3

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill

EcoSolutions Profile

1SBC100156C0308

End Of Life Disassembling Instructions

1SBC101080M6801

Environmental Product Declaration - EPD

1SBD250584E3000

Improved Energy Efficiency for Customers

Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 92.7 %

A2L Certificate – UL

9AKK108469A4900; 9AKK108469A4902

ABS Certificate

ABS_26-0348269-PDA_FR; ABS_26-0348269-PDA-DUP_CN

BV Certificate

BV_2634H24899C1

CB Certificate

CB_SE-117902

CCC Certificate

CCC_2024010303656666

Declaration of Conformity - CCC

CQC2011010303465426

Declaration of Conformity - CE

1SBD250005U1000

Declaration of Conformity - UKCA

1SBD250036U1000

DNV Certificate

DNV_TAE00001BV-5

LR Certificate

LRS_LR2003684TA-02

RINA Certificate

RINA_ELE142224XG

RMRS Certificate

RMRS_1802702280

UL Certificate

UL_20180227_E252354_2_1

UL Listing Card

UL_E252354

Object Classification Code

K

ETIM 7

EC000196 - Contactor relay

eClass

V11.0 : 27371001

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4763 >> Power contactor, DC switching

E-Number (Finland)

3706415

E-Number (Sweden)

3211456

HS Code

8536.49
