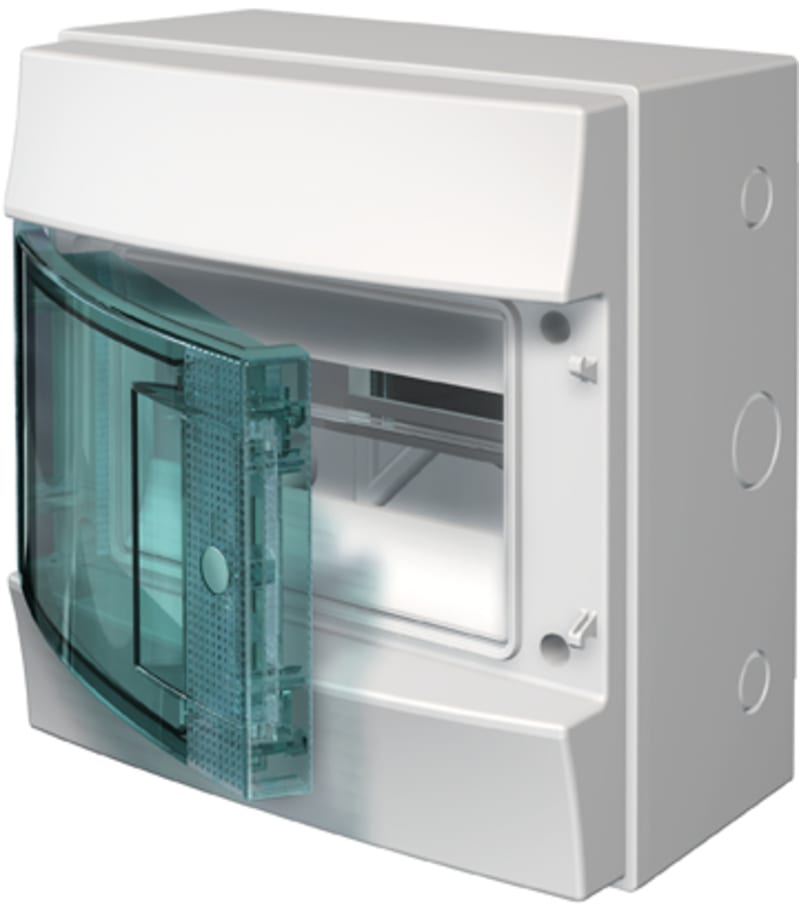

ABB Mistral 65 Group Distribution Board 8 Modules IP65
Pricing
Request a quote
We reply within 24 hours
Product Description
Surface-mounted group distribution enclosure with transparent blue-green hinged door, 8 module width, single DIN rail row. Halogen-free housing, glow-wire tested to 650 degrees C, RAL 7035 grey, IP65 rated for wet and dusty locations. External 232 x 250 x 155 mm with lockable door, suitable for domestic, service and light industrial supply panels.
Technical Specifications
- Manufacturer part number (MPN)
- Group panel 8M m/Blue-Grøn låge IP65
- EAN / GTIN
- 8000126097924
- Sales unit
- pcs
- Package quantity
- 11 pcs
- Modular width
- 8 modules
- Mounting method
- Surface mounted
- Colour
- Grey
- Width
- 232 mm
- UV resistant
- No
- Height
- 250 mm
- Depth
- 155 mm
- RAL-number
- 7035
- With mounting plate
- No
- Built-in depth
- 98 mm
- Number of rows
- 1
- Built-in height
- 193 mm
- Type of covering
- Door
- Built-in width
- 164 mm
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 84 mm
- DIN-rail
- Yes
- Sealable
- No
- Housing material
- Plastic
- With N-disconnect slide
- No
- Width in number of modular spacings
- 8
- Type of door
- Single
- Degree of protection (IP)
- IP65
- Transparent cover/door
- Yes
- With lock
- Yes
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Italy
Standards & Compliance
- Material
- Halogen-free thermoplastic, grey RAL 7035
- HS Code
- 8538.10
Cross References
- EAN 8000126097924
- SAP 1000599725
- Code 8403720
- ABB 1SL1201A00
Product Documentation
More from ABB
ABB
Grensesnitt
USB/S1.2
ABB
SAGA Flush Socket Single with KONT.LIGHT without Frame
2CKA002013A5486
ABB
FUSE Holder E 93/50 (2CSM277962R1801)
ABB
OVR T1-T2 3N 12.5-275S P QS
2CTB815710R1900
ABB
ABB with big opal lense. Operating voltage of LED's: 9,5 - 28 V ac / 9,5 - 35 V dc. Current consumption: 60 mA ac / 30 mA dc. 2TKA002127G1
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LS/I, In=160 A, 3-Pole
XT2N 160 Ekip LS/I In=160A 3p F F
ABB

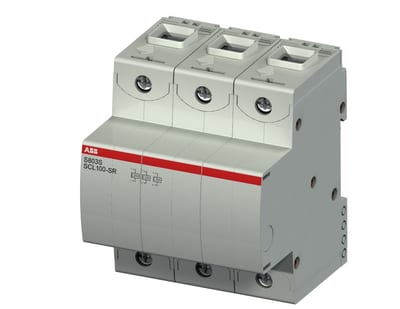

ABB 2CCS803901R0639 S803S-SCL100-SR Self-resetting short-circuit current limiter 100A 3-Pole tested acc. to IEC 60947-2
