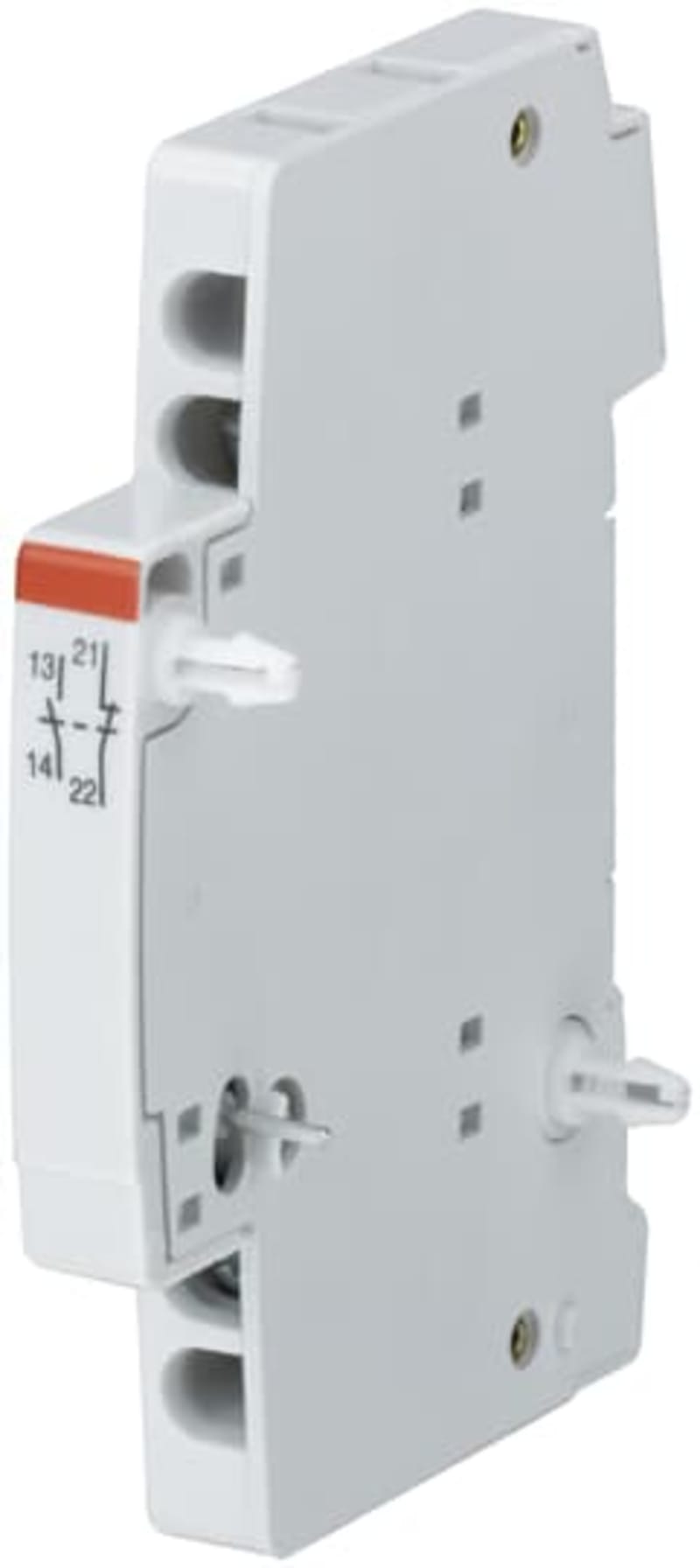

Auxiliary contact S2C-H11L 1NC+NO
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S2C-H11L — Indication of the position of the device’s contacts. To be mounted on the left side of the MCBs. Suitable for MCBs S 200 series.
Technical Specifications
- Manufacturer part number (MPN)
- S2C-H11L
- EAN / GTIN
- 4016779648820
- Sales unit
- pcs
- Contact configuration
- 1 NC + NO
- Country of Origin
- India
- Lead Time
- 0 day
- Product Sales Status
- Active
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 44.5 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Offered with Takeback Services
- Take Back for Recycling
- End Of Life Disassembling Instructions
- 9AKK108472A0832
- Environmental Product Declaration - EPD
- 9AKK108468A8791
- Function
- Auxiliary Contact
- Suitable For
- S200; S200M; S200P; S200S; S200 MT; S200 MUC; S300P
- Suitable for Product Class
- Miniature Circuit Breaker
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Accessory Type
- Auxiliary Contact
- Power Loss
- 1 W; Maximum 1 W
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Product Net Width
- 8.8 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 69 mm
- EPLAN Data
- 9AAC179079_EPLAN
- Declaration of Conformity - CE
- 9AKK108468A4564
- Instructions and Manuals
- GHS2007017P0025
- Mounting Position
- left
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- UNSPSC
- 39121522
- eClass
- V11.0 : 27143502
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- Q
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 0.75
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Auxiliary switch
- Voltage type for actuating
- AC/DC
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. current main contact unit
- 45 A
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4016779648820
- SAP 1000201181
- Code 8715968
Product Documentation
