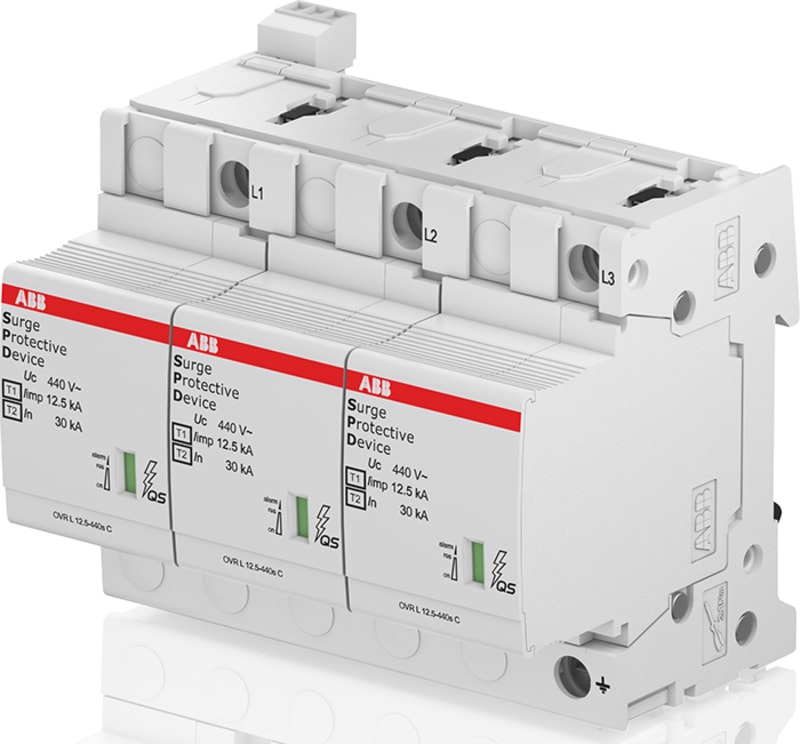

ABB 2CTB815710R3500 OVR T1-T2 3L 12.5-440S P TS QS Surge Protective Device

ABB 2CTB815710R3500 OVR T1-T2 3L 12.5-440S P TS QS Surge Protective Device is listed under Switchgear & Protection / Surge Protectors. HS code: 8536.30.

Manufacturer part number (MPN)

2CTB815710R3500 EAN / GTIN: 3660308525086 Sales unit: pcs Carbon Footprint (Full Lifecycle): 24.323234 kg CO₂ eq EcoSolutions Profile: 9AKK108472A3406 Environmental Product Declaration - EPD: 9AKK108472A1709 Type of Low Voltage Distribution System: TN-C; IT Suitable For: To protect the systems against the transient overvoltage (lightning) Nominal AC Voltage of the System (U o ): 400 / 690 V Maximum Continuous Operating Voltage (U c ): (L-PE) 440 V; (L-L) 760 V; (L-N) - V; (N-PE) - V Temporary Overvoltage Test Value (U T ): 581 V Discharge Current: Nominal 20 kA; Maximum 80 kA; Total 240 kA Impulse Current: I (imp, 10 / 350 µs, L-N) 12.5 kA; I (total, 10 / 350 µs) 37.5 kA Lightning Impulse Current: 12.5 kA Short Circuit Withstand Icc: 100 kA Follow Current Extinction Capacity If (I fi): (L-N) - kA; (N-PE) - kA Short-Circuit Protective Devices: Curve B Breakers ≤ 125 A; Curve C Breakers ≤ 125 A; gL Type Fuses ≤ 160 A; gG Type Fuses ≤ 160 A Arrester Class: I; II Number of Protected Poles: 3 Number of Auxiliary Contacts NC: 1 Number of Auxiliary Contacts NO: 1 Number of Poles: 3P Version: Plug-in Product Type: QS Options Provided: Industry, commercial building Auxiliary Circuit Load: minimum 12Vdc - 10mA; Maximum 250Vac - 1A Preventive Maintenance Feature: Yes Status Indicator: Yes Fuse Size: 6 modular spacing Voltage Protection Level ( Up): (L-N) - kV; (N-PE) - kV; (L-PE) 2 kV Power Loss: Total 121 mW Degree of Protection: IP20 Maximum Operating Altitude Permissible: Without Derating 5000 Width in Number of Modular Spacings: 6 Product Net Width: 106.8 mm Product Net Height: 95.8 mm Product Net Depth / Length: 76.7 mm CQC Certificate: 9AKK107680A1975 Declaration: 2CTC432056G1701 Declaration of Conformity - CE: 9AKK108466A4617 Instructions and Manuals: 2CTC431030M1701 Mounting Type: DIN-Rail ETIM 9: EC001457 - Combined arrester for power supply systems UNSPSC: 39121610 eClass: V11.0 : 27130808 Object Classification Code: 141BEC Standards: IEC 61643-11 / EN 61643-11 Mounting method: DIN rail (top hat rail) 35 mm Construction size: 6 modular spacing Exhausting: No Remote signalling: Yes Follow current extinguishing capability: 100 kA Max. continuous voltage AC: 440 V Nominal voltage AC: 400 V Nominal voltage DC: 560 V Test class: Type 1 + 2 Voltage protection level L-N: 1.8 kV Signalling at the device: Optical Max. continuous voltage DC: 560 V Voltage protection level N-PE: 1.8 kV Integrated backup fuse: No Max. conductor cross section solid (solid, stranded): 35 mm² Max. conductor cross section flexible (fine-strand): 25 mm² System configuration DC: No System configuration IT: Yes System configuration TN: Yes System configuration TN-C: Yes System configuration TT: Yes System configuration other: No Voltage protection level L-PE: 2 kV Voltage switching spark gap technology: No Overcurrent protected voltage tapping: No Country of origin: Bulgaria

HS Code

8536.30

• EAN 3660308525086
• SAP 1200026059
• Code 81443527
