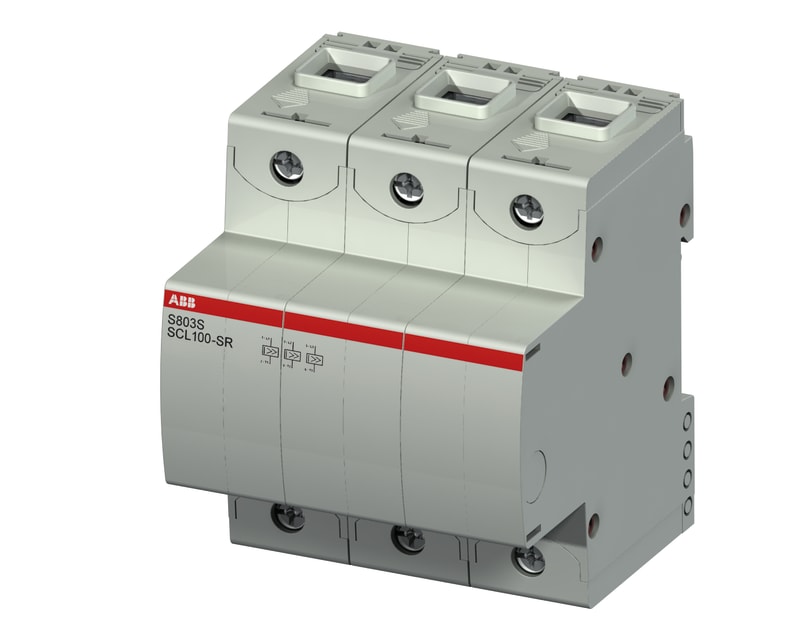

ABB 2CCS803901R0639 S803S-SCL100-SR Self-resetting short-circuit current limiter 100A 3-Pole tested acc. to IEC 60947-2
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CCS803901R0639 S803S-SCL100-SR Self-resetting short-circuit current limiter 100A 3-Pole tested acc. to IEC 60947-2 is listed under Electrical Components / Miniature Circuit Breakers. Sales unit: pcs; Suitable For: S800P; S800S; S800N; S800C; S800B; Rated Operational Current (I e ): 100 A; Apparent Power Output: Secondary 69000 V·A; Rated Operational Voltage: Auxiliary Circuit 400 / 690 V; Rated Current (I n ): 100 A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS803901R0639
- EAN / GTIN
- 7612271411954
- Sales unit
- pcs
- Suitable For
- S800P; S800S; S800N; S800C; S800B
- Rated Operational Current (I e )
- 100 A
- Rated Ultimate Short-Circuit Breaking Capacity (I cu )
- (240 / 415 V AC) 100 kA; (254 / 440 V AC) 100 kA; (289 / 500 V AC) 65 kA; (400 / 690 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity (I cs )
- (240 / 415 V AC) 100 kA; (254 / 440 V AC) 100 kA; (289 / 500 V AC) 65 kA; (400 / 690 V AC) 50 kA
- Apparent Power Output
- Secondary 69000 V·A
- Number of Poles
- 3P
- Rated Operational Voltage
- Auxiliary Circuit 400 / 690 V
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Current (I n )
- 100 A
- Rated Conditional Short-Circuit Current (I nc )
- 50 kA
- Rated Uninterrupted Current (I u )
- 100 A
- Power Loss
- Total 7.8 W; at Rated Operating Conditions per Pole 2.6 W
- Environmental Information
- 2CCY413207D0203
- Product Net Width
- 81 mm
- Product Net Height
- 142 mm
- Product Net Depth / Length
- 82.5 mm
- EPLAN Data
- 9AAC212941_EPLAN
- Declaration of Conformity - CE
- 2CCC413015D0601
- Instructions and Manuals
- 9AKK106930A3418
- Mounting Type
- DIN-Rail
- ETIM 9
- EC000239 - Current limiter
- UNSPSC
- 39121636
- eClass
- V11.0 : 27370416
- IDEA Granular Category Code (IGCC)
- 4991 >> Current limiter
- Object Classification Code
- F
- Standards
- IEC 60947-2; IEC 60947-4-1
- Mounting method
- DIN rail
- Rated permanent current Iu
- 100 A
- Conditioned rated short-circuit current Iq
- 50 kA
- Short-circuit current limiter
- Yes
- Max. apparent power
- 69000 VA
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 7612271411954
- SAP 1000519442
- Code 8835169
Product Documentation
