Residual Current Circuit Breaker WITH Overcurrent DS201 M B10 A10MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB DS201 M B10 A10 — System pro M compact RCBO. Residual current circuit breaker with overcurrent, IEC 61009 DIN-rail modular. DS201 M B10 A10, 10kA, 2mod, B kar, 10A, 1 pole+N, 10mA 90.
Technical Specifications
- Manufacturer part number (MPN)
- DS201 M B10 A10
- EAN / GTIN
- 8012542574613
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power loss
- 2.3 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 10 A
- Rated fault current
- 0.01 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Voltage type
- AC
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 0.75–16 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542574613
- SAP 1200385250
- Code 82430890
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT7S 1000 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI 1000A, In=1000 A, 3-Pole
XT7S 1000 Ekip Hi-Touch LSI 1000A 3p FF
ABB
TMD 25-300 XT4 4P (1SDA067469R1)
ABB

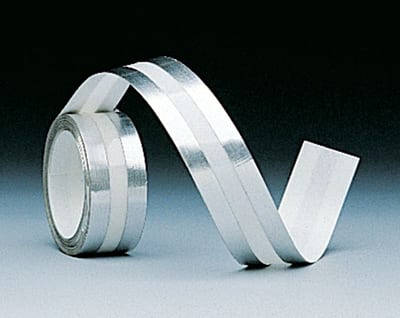

ABB Jussi Leak Guard Sensor Tape 50 m
