ABB S204M-Z35 Miniature Circuit Breaker — 4P, Type Z, 35 A, 10 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S204M-Z35 miniature circuit breaker (MCB) from the System pro M compact range. 4P, rated current In = 35 A, Type Z tripping characteristic. Rated breaking capacity Icn = 10 kA (IEC 60898-1); rated operational voltage Ue 230/400 V AC. DIN-rail modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC 60898-1 and IEC 60947-2. ABB order code 2CDS274061R0548, EAN 4013614437946, ABB/SAP material 1200329989, catalogue code 82312670.
Technical Specifications
- Manufacturer
- ABB
- Product family
- System pro M compact
- Type designation
- S204M-Z35
- Manufacturer part number (MPN)
- 2CDS274061R0548
- EAN / GTIN
- 4013614437946
- ABB / SAP material no.
- 1200329989
- Poles
- 4P
- Tripping characteristic
- Type Z
- Rated current In
- 35 A
- Rated breaking capacity Icn
- 10 kA
- Rated operational voltage Ue
- 230/400 V AC
- Standard
- IEC 60898-1, IEC 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60898-1
- HS Code
- 8536.20
Cross References
- EAN 4013614437946
- SAP 1200329989
- Code 82312670
Product Documentation
More from ABB
ABB
Cover frame TZP206 900X500X30MM
2CPX010634R9999
ABB
UVR-C 220-240VAC-220-250VDC (UVR-C XT1..XT4 F/P 220-240VAC-220-250VDC)
UVR-C XT1..XT4 F/P 220-240Vac-220-250Vdc
ABB
ABB KNX Switch Actuator 2-Channel, 16 A AC3 C-Load, DIN Rail
2CDG110265R0011
ABB

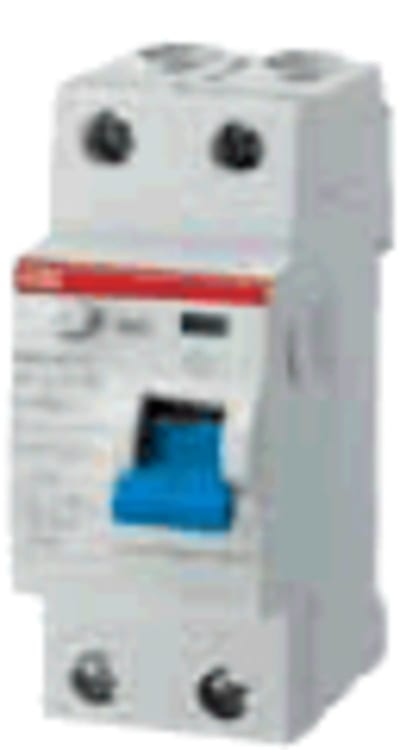

Residual Current Circuit Breaker F202 A 80A/500MA
2CSF202101R4800
ABB

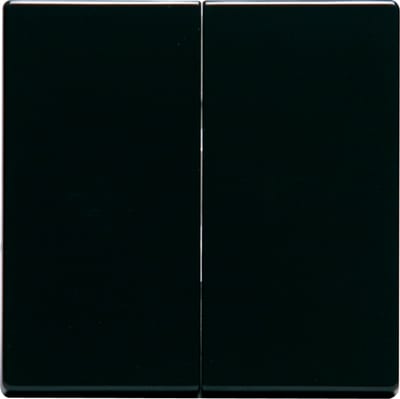

ABB Impressivo Two-Part Rocker Switch, Anthracite
