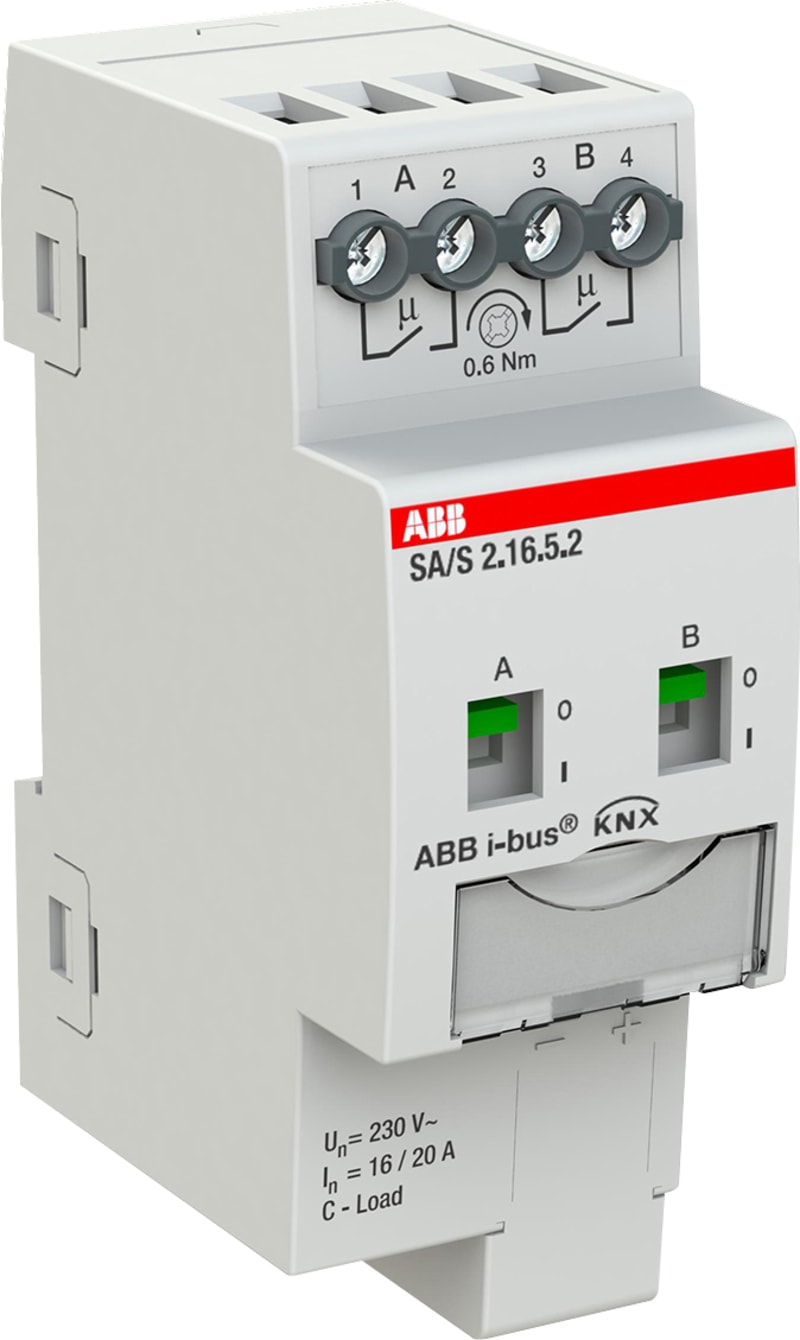

ABB KNX Switch Actuator 2-Channel, 16 A AC3 C-Load, DIN Rail
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110265R0011 (SA/S2.16.5.2) is a 2-channel KNX switch actuator that uses potential-free contacts to switch two independent electrical loads via the ABB i-bus KNX. Rated 16/20 A and 16 A AC3 (C-load) per EN 60669, the device is well suited to loads with high inrush currents such as fluorescent lighting. Manual operation and switching-state indication are provided. 2 modular spacings wide, IP20, 2 W power loss.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110265R0011
- EAN / GTIN
- 4016779066457
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941216P0001
- Wiring Diagram
- 9AKK108464A0329
- Mounting Type
- DIN-Rail
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC505196D0211
- Contact Position Indication
- ON / OFF
- Number of Outputs
- 2
- Number of LEDs
- 1
- Maximum Number of Switching Outputs
- 2
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Suitable for C-Load
- Yes
- Number of Batteries
- 0
- Voltage Range
- 230 V AC
- Auxiliary Voltage AC/DC
- KNX
- Output Voltage (U out )
- 230 V AC
- Rated Current (I n )
- 20 A
- Maximum Switching Current
- 20 A
- Maximum Switching Power
- 3680 W
- Load Type
- Resistive Load; Capacitive Load; Inductive Load
- Power Loss
- 2 W; Total 2 W
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072025F0017
- EPLAN Data
- 9AAC189170_EPLAN
- EcoSolutions Profile
- 9AKK108470A2429
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 35.3 %
- Circular Design Principles Lifetime
- 2CKA000073B5454
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Extended Product Lifetime
- Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services; Product Durability; Product Modularity
- Offered with Takeback Services
- Take Back for Recycling
- Environmental Product Declaration - EPD
- 9AKK108469A7986
- CB Certificate
- 9AKK107991A3225
- Declaration of Conformity - CE
- 2CDK505242D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0737
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001097 - Switch actuator for bus system
- eClass
- V11.0 : 27143125
- UNSPSC
- 31251516
- IDEA Granular Category Code (IGCC)
- 3268 >> Switch actuator
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779066457
- SAP 1200426095
- Code 82454916
Product Documentation
