Main fuse Circuit Breaker S754DR-E80 SEL
Pricing
Request a quote
We reply within 24 hours
Product Description

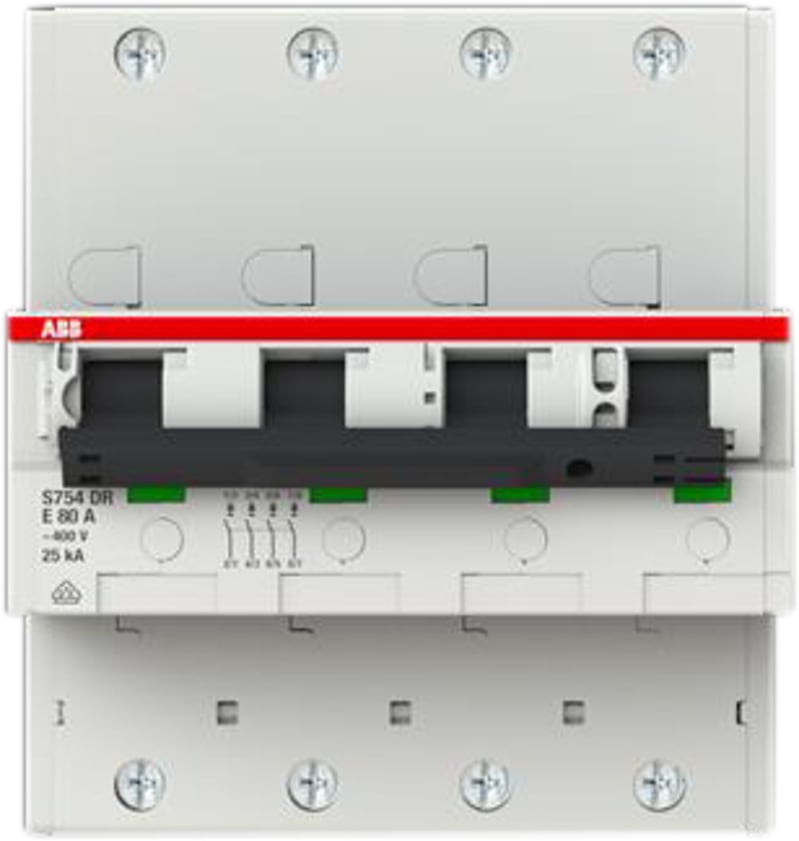

ABB 2CDH784010R0802 — Selective main circuit-breakers of the S 750 DR series are SMCBs based on DIN VDE 0641-21 with voltage-independent operating principle. This means that they do not rely on a control circuit to make or break contact (SHU) and are therefore particularly suitable for use in energy distribution systems with maximum availability requirements. They offer total selectivity to downstream MCBs and outstanding selectivity to upstream protective devices due to unique current limiting selectivity.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDH784010R0802
- EAN / GTIN
- 4016779879842
- HS code
- 8536.90
- Sales unit
- pcs
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 45.9 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Extended Product Lifetime
- Product Durability
- End Of Life Disassembling Instructions
- 9AKK108469A4877
- Environmental Product Declaration - EPD
- 9AKK108468A5768
- Suitable for Isolation
- Yes
- Dielectric Test Voltage
- 50 / 60 Hz - 1 min 2 kV
- Rated Ultimate Short-Circuit Breaking Capacity (I cu )
- (400 V AC) 25 kA
- Rated Service Short-Circuit Breaking Capacity (I cs )
- (400 V AC) 12.5 kA
- Power Supply Connection
- Arbitrary
- Contact Position Indication
- Red ON / Green OFF
- Number of Poles
- 4P
- Tightening Torque
- 2.5 ... 3 N·m
- Screw Terminal Type
- Cable Clamp
- Actuator Marking
- I / O
- Recommended Screw Driver
- Cross Recess Pozidriv 2; Slotted 1 x 5.5
- Accessories Available
- Yes
- Connecting Capacity
- Flexible with Ferrule 2.5 ... 50 mm²; Flexible 2.5 ... 50 mm²; Rigid 2.5 ... 50 mm²; Stranded 2.5 ... 50 mm²
- Installation Size
- acc. to DIN 43880 3
- Terminal Type
- Screw Terminals
- Tripping Characteristic
- E (Selective)
- Rated Operational Voltage
- 400 V AC; acc. to IEC 60947-2 400 V AC
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV; at 2000 m 8 kV; at Sea Level 9.8 kV
- Input Voltage Type
- AC
- Rated Current (I n )
- 80 A
- Rated Short-Circuit Capacity
- (400 V AC) 25 kA
- Rated Frequency (f)
- 50 / 60 Hz
- Power Loss
- at Rated Operating Conditions per Pole 10.5 W
- Overvoltage Category
- IV
- I²t Characteristic
- 9AKK108466A4490
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -40 ... +70 °C
- Degree of Protection
- IP20; Enclosure with Cover IP40
- Pollution Degree
- 3
- Environmental Conditions
- 28 cycles; with 55 °C / 90-96 %; and 25 °C / 95-100 %
- Resistance to Vibrations
- 20 Cycles with Load 0.8 In: 2g 5 ... 150 ... 5 Hz
- Resistance to Shock acc. to IEC 60068-2-27
- 30g 3 shocks 11 ms
- Product Net Width
- 116 mm
- Product Net Height
- 130 mm
- Product Net Depth / Length
- 96 mm
- Dimension Diagram
- 9AKK108466A4497
- Declaration of Conformity - CE
- 2CDK400633D2701
- Instructions and Manuals
- 2CDS707001P0004
- Mounting Type
- DIN-Rail
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- any
- ETIM 9
- EC001047 - Selective main line circuit breaker
- UNSPSC
- 39121614
- eClass
- V11.0 : 27141903
- Object Classification Code
- F
- Standards
- IEC/EN 60947-2
- Certification Agency
- EN; IEC
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779879842
- SAP 1200641691
- Code 83053876
