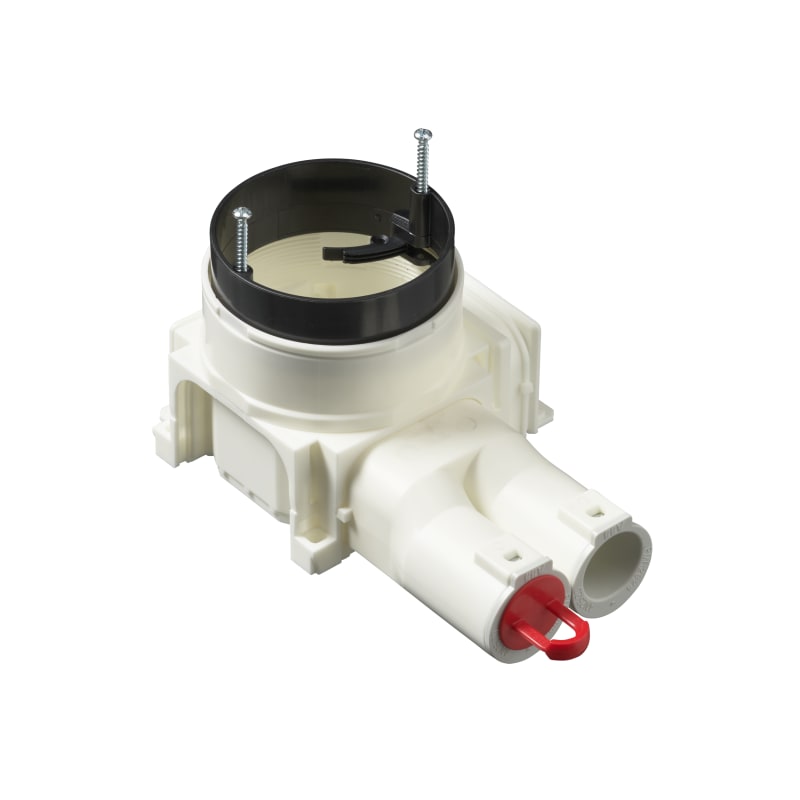

2-Run 25/20mm Concrete Box HIGH
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AUB60H — Mounting box AUB60H is especially designed for off site and on site casting applications. Box height is 82 mm. Box includes two inlets with locking springs for 20 or 25 mm conduits. Additional inlets can be attached to other sides without need of any tooling. The mounting box includes a rotating, steplessly adjustable extension ring. The extension ring can be tilted 0-4º. Box combinations can be created without additional accessories and box has large inside space. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (650 °C). Maximum number of conductors is 30 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- AUB60H
- EAN / GTIN
- 6438199008844
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Application
- None
- Model Number
- Single
- Number of Conduit Inlets
- 8
- Number of Inlet Inserts Included
- 2
- Design
- Device Connection Box (Round / Square)
- Cover Mounting Type
- Snap On
- Switching Equipment Mounting Type
- Screw
- Includes
- None
- Number of Batteries
- 0
- Rated Cross-Section
- 2.5 mm²
- Shape
- Round
- Surface Finishing
- Untreated
- Material
- Plastic
- Cover Style
- Construction Protective Cover
- Color
- White
- Number of Gangs
- 1-gang
- Degree of Protection
- IP3X
- Environmental Information
- 9AKK108472A0748
- Product Net Width
- 0.098 m
- Product Net Height
- 0.082 m
- Product Net Depth / Length
- 0.167 m
- Dimension Diagram
- 9AKK108470A8351
- Building Information Modeling – BIM
- 9AKK108468A3697
- Declaration of Conformity - CE
- 9AKK106713A4627
- Mounting Type
- Concrete building
- ETIM 9
- EC002601 - Box/housing for built-in mounting in the wall/ceiling
- Mounting method
- Concrete building
- Model
- Single
- Provided with revolving ring
- Yes
- Couplable
- Yes
- Equipped with
- None
- Diameter
- 71 mm
- Length
- 167 mm
- Width
- 98 mm
- Depth
- 167 mm
- Inner depth
- 77 mm
- Suitable for wall/board thickness
- 0–46 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 20/25 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- No
- Number of inlets
- 8
- Number of included spouts
- 2
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- White
- Cover model
- Construction protective cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Max. conductor cross section
- 2.5 mm²
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- Yes
- Special application
- None
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 6438199008844
- SAP 1200681882
- Code 83539795
