Residual Current Circuit Breaker F204 B-63/0,3 BULK
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSF204568U3630 RESIDUAL CURRENT CIRCUIT BREAKER F204, 4 pole, Type B, 63 A, 30mA, BULK.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF204568U3630
- EAN / GTIN
- 8012542356257
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated current
- 63 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 440 V
- Number of poles
- 4
- Leakage current type
- B
- Selective protection
- No
- Surge current capacity
- 3 kA
- Pollution degree
- 3
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 15.6 W
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- With interlocking device
- No
- Ambient temperature during operating
- -25–50 °C
- Additional equipment possible
- Yes
- Device width
- 70 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542356257
- SAP 1200641000
- Code 83053326
Product Documentation
More from ABB
ABB
Main fuse Circuit Breaker S754DR-E80 SEL
2CDH784010R0802
ABB
2-Run 25/20mm Concrete Box HIGH
AUB60H
ABB
ABB SACE Tmax XT4N 250 Moulded-Case Circuit-Breaker Body — 4-Pole
XT4N 250 BREAKING PART 4p F F
ABB
IMPRESSIVO In. Double SOCKET without EARTH WHITE
2TKA00000432
ABB
ABB 2CDE400000R1601 E233-24 is a working hour meter, working with 24V voltage and 50Hz frequency
ABB

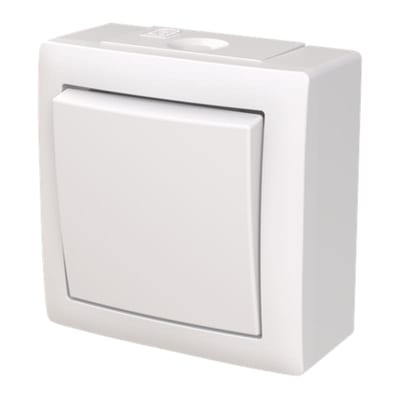

SAGA WALL-Mounted 6 Switch 1-POLE/Two-Way IP44
1066SW-916
ABB

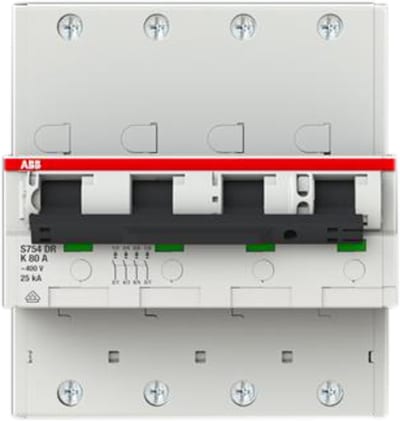

Main fuse Circuit Breaker S754DR-K80 SEL
