ABB
Residual Current Circuit Breaker F204 B S-40/300MA
Part number2CSF204868R3400EAN / GTIN8012542342557HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

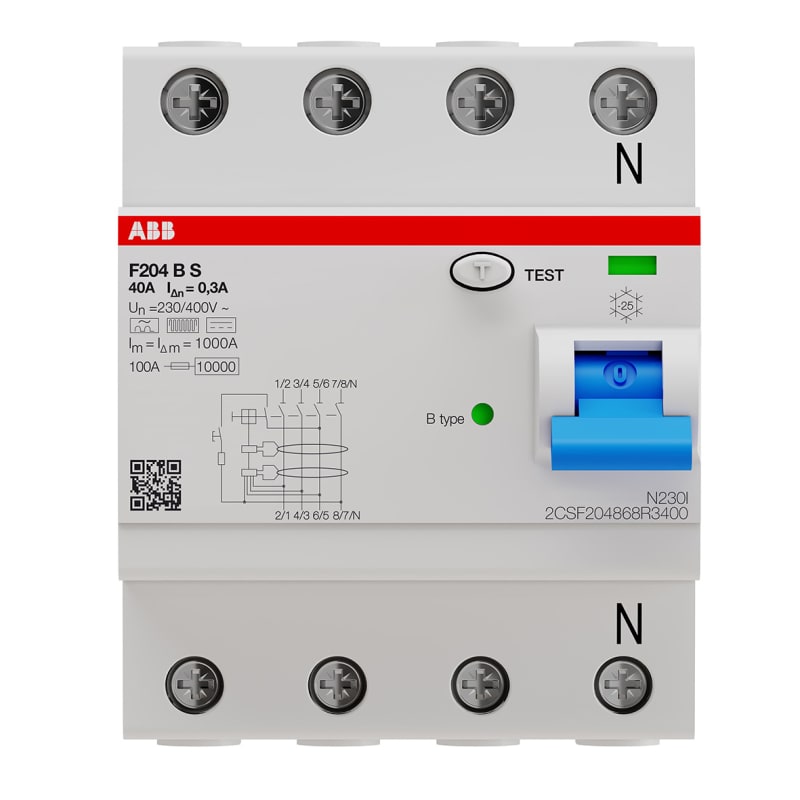

ABB 2CSF204868R3400 RESIDUAL CURRENT CIRCUIT BREAKER F204, 4 pole, Type B, Selective, 40 A, 300mA.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF204868R3400
- EAN / GTIN
- 8012542342557
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated current
- 40 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 440 V
- Number of poles
- 4
- Leakage current type
- B
- Selective protection
- Yes
- Surge current capacity
- 5 kA
- Pollution degree
- 3
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 6.95 W
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- With interlocking device
- No
- Ambient temperature during operating
- -25–65 °C
- Additional equipment possible
- Yes
- Device width
- 70 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542342557
- SAP 1200626180
- Code 83031503
Product Documentation
Document preview: ABB 2CSF204868R3400 — OEM Product Page
