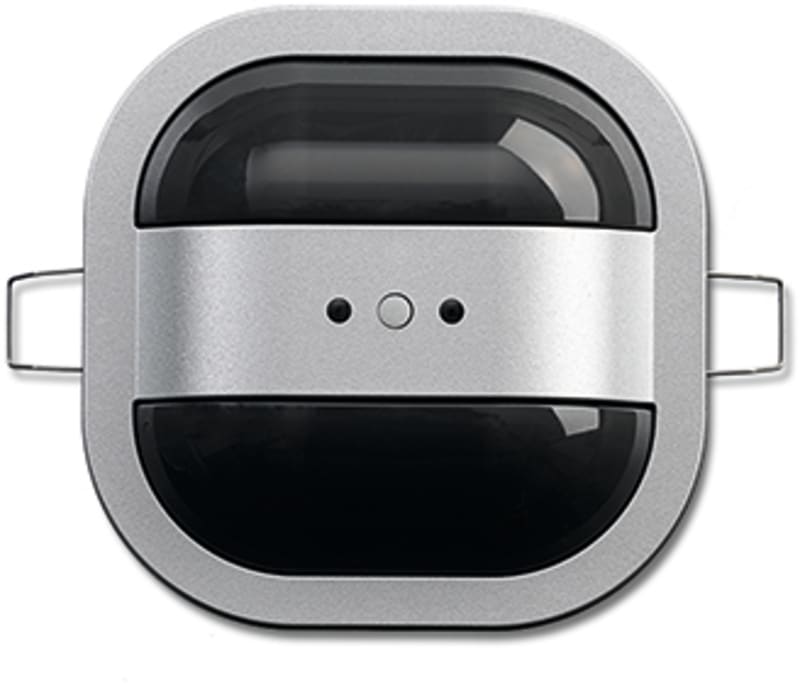

TILSTEDEV.360° STAND.6131/30-183-500 Aluminium

ABB 6131/30-183-500 — Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 8 m, max. 10 m and max. 14 m. Walking persons Ø: max. 10 m, max. 12 m and max. 16 m. Visible height 23 mm. With 2 channels. Targeted for connection and disconnection of lights bands depending on the room brightness. Regulation in response to the movement possible. Using the device as presence and/or movement detectors. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area. With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flushmounted box. Recommendation: Installation housing from Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates (1281-xx for fair faced concrete) or IBTronic H120-68 from Spelsberg.

Manufacturer part number (MPN)

6131/30-183-500 EAN / GTIN: 4011395185933 Sales unit: pcs Mounting Type: Surface Mounted Mounting Position: Ceiling Mounting Height: Optimum 2 m Modular Components Included: Complete Device Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information: 2CKA006132D0202 Measuring Range: 0 ... 8 Number of Channels: 2 Compatible Bus Systems: KNX (TP) Product Range: KNX Transmission Standard: Twisted Pair Wiring minimum Switching Time: Switch-On 10 s Sensor Detection Range: 360 °; Frontal 8 m; Lateral 12 m Surface Finishing: Lacquered; Matt material: Plastic; Thermoplastic RAL Number: Similar to RAL 9006 Color: aluminium silver Product Net Width: 91 mm Product Net Height: 91 mm Product Net Depth / Length: 45 mm Built-In Depth ( t 2 ): 22 mm Dimension Diagram: 2CKA000097E3999 EPLAN Data: 9AKK108464A1145 Building Information Modeling – BIM: 2CKA110002E3646 EcoSolutions Profile: 9AKK108470A2570 Circular Design Principles Lifetime: 2CKA000073B5454 ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill Sustainable material Content in Packaging (wt. %): FSC Recycled Paperboard - 90 % Improved Energy Efficiency for Customers: digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset Extended Product Lifetime: Product Upgradability Offered with Takeback Services: Take Back for Recycling Environmental Product Declaration - EPD: 9AKK108468A1033 Declaration of Conformity - CE: 2CKA100000E1058 Declaration of Conformity - UK-PSTI: 2CKA410000E0106 EU Data Act Compliance Declaration: 9AKK108470A9399 KNX Certificate: 9AKK108472A0644 Cyber Security Software Support Period: 2 year EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC001582 - Movement sensor for bus system eClass: V11.0 : 27143144 UNSPSC: 39121801 Bus system KNX Secure: No Bus system KNX Secure-RF (Radio Frequency): No Bus system KNX: Yes Bus system KNX-RF (Radio Frequency): No Bus system radio frequency: No Bus system LON: No Bus system Powernet: No Radio frequency bidirectional: No Model: Presence detector Mounting method: Surface mounted material quality: Thermoplastic Surface protection: Lacquered Colour: Aluminium Transparent: No With bus connection: Yes Substation input: Yes Creep-under protection: Yes Operation mode switch: No Animal zone: No Staircase light controller: Yes Response value luminosity adjustable: Yes Teach-function for response value luminosity: Yes Switch-off delay self-learning: No Optimum mounting height: 2 m Max. reach sideways: 12 m Max. reach frontally: 8 m Diameter reach on floor: 12 m Min. switch-on time: 10 s Max. duty cycle: 1092 min Min. depth of built-in installation box: 22 mm Width: 91 mm Height: 91 mm Depth: 45 mm Country of origin: Germany

HS Code

8536.50

• EAN 4011395185933
• SAP 1000673003
• Code 8556842
