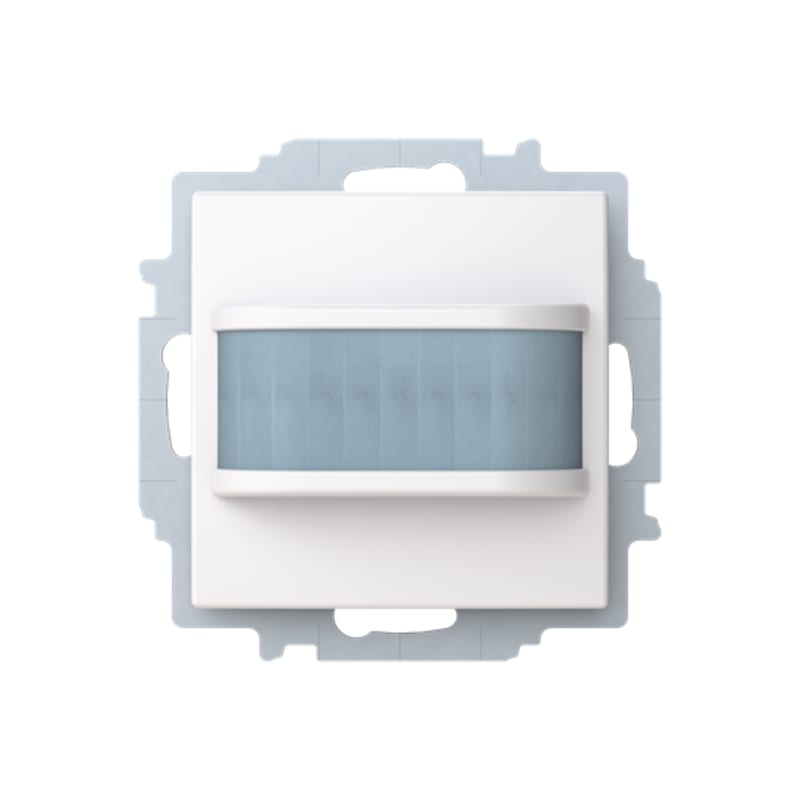

SAGA FLEX BEV.SENSOR Basic without Frame
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006800A3103 — Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness../. Compatible with all free@home flex inserts. Adjusting elements on rear side. Extension of the detection range by means of master/slave combination. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006800A3103 EAN / GTIN: 4011395321577 HS code: 8536.90 Sales unit: pcs Mounting Height: Optimum 1.1 m Modular Components Included: Cover with Flush Mounted Insert and Mounting Plate Ambient Air Temperature: -5 ... 45 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Number of Switching Zones: 14 minimum Switching Time: Switch-On 10 s Connection Type: Screw Sensor Type: Passive Infrared Manual Operation: No Illuminance: 5 ... 500 lx Sensor Detection Range: 13 ... 180 ° Rated Voltage (U r ): 230 ... 230 V Input Voltage Type: AC Rated Frequency (f): 50 ... 50 Hz Load Type: LEDi/CFLi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage; Fluorescent Lamp Design Range: Saga Surface Finishing: Glossy; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9003 Color: white Product Net Width: 71 mm Product Net Height: 71 mm Product Net Depth / Length: 52.6 mm Built-In Depth ( t 2 ): 25 mm Dimension Diagram: 2CKA000097E4121 Declaration of Conformity - CE: 2CKA100000E5827 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000133 - Movement sensor/presence detector complete eClass: V11.0 : 27144007
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395321577
- SAP 1200706250
- Code 83752063
Product Documentation
More from ABB
ABB

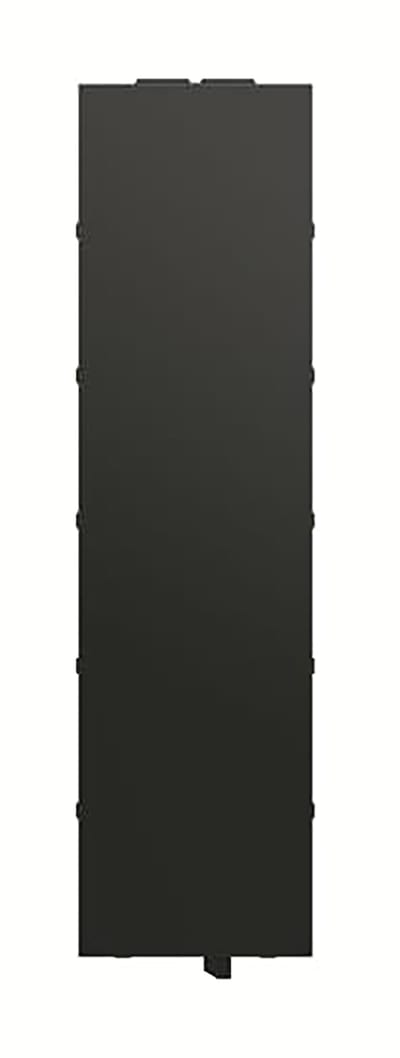

ABB 2CKA006330A0122 Marking coverplate for 12GANG control element
ABB
Bell Transformer TM 40/24
2CSM228785R0802
ABB

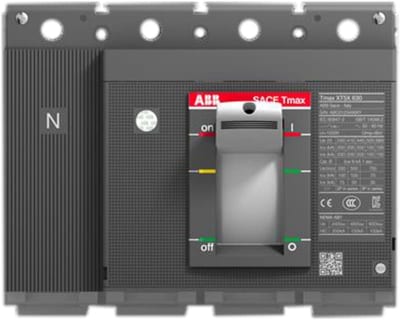

ABB SACE Tmax XT5V 630 Moulded-Case Switch-Disconnector — 4-Pole
1SDA100569R1
ABB

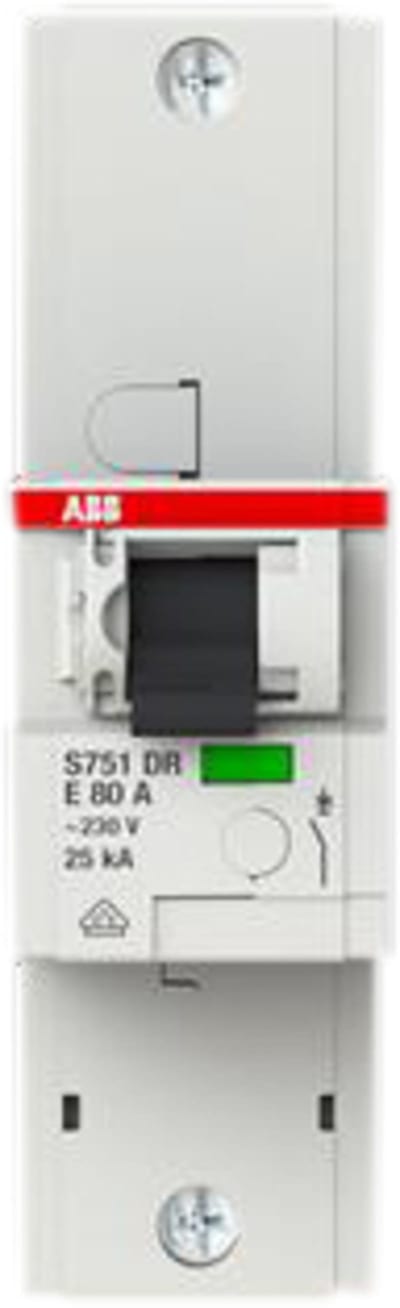

Main fuse Circuit Breaker S751DR-E80 SEL
2CDH781010R0802
ABB

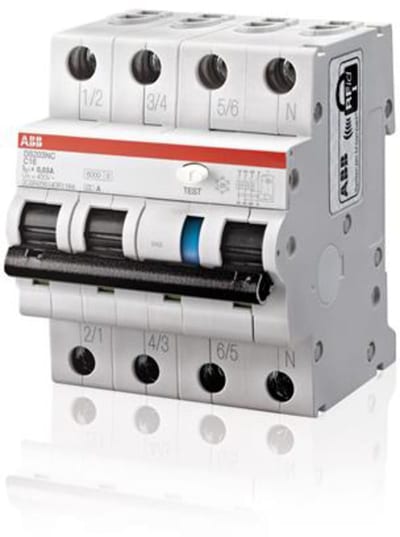

JF.AUT.DS203NC-C32/AS 0.3 (2CSR256240R3324)
ABB

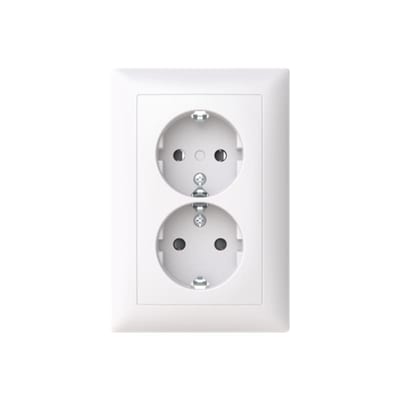

SAGA Flush Socket LOW 1.5
2TKA00004982
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C13 A300MA
2CSR275180R3134
ABB

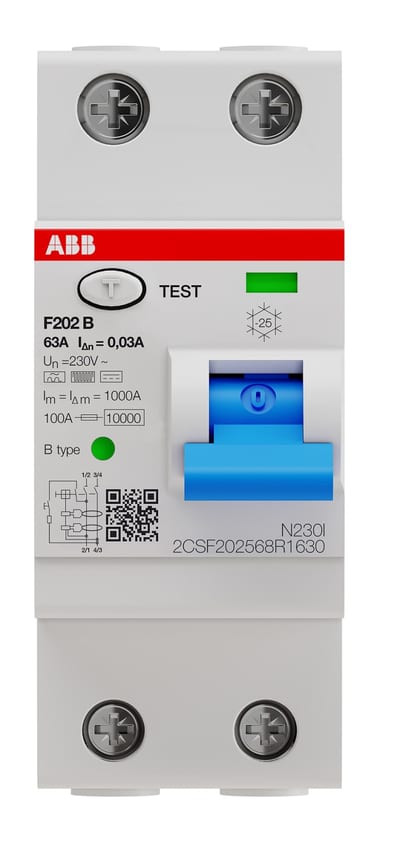

Residual Current Circuit Breaker F202 B 63A/30MA
2CSF202568R1630
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2CKA006800A3103?
- 2CKA006800A3103 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 2CKA006800A3103.
- What is the HS code for 2CKA006800A3103?
- The customs tariff (HS) code for 2CKA006800A3103 is 8536.90.
- Who manufactures 2CKA006800A3103?
- 2CKA006800A3103 is a ABB product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 2CKA006800A3103?
- Yes — the 2CKA006800A3103 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2CKA006800A3103?
- The minimum order quantity is 1.
- Is 2CKA006800A3103 available?
- Yes — 2CKA006800A3103 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
