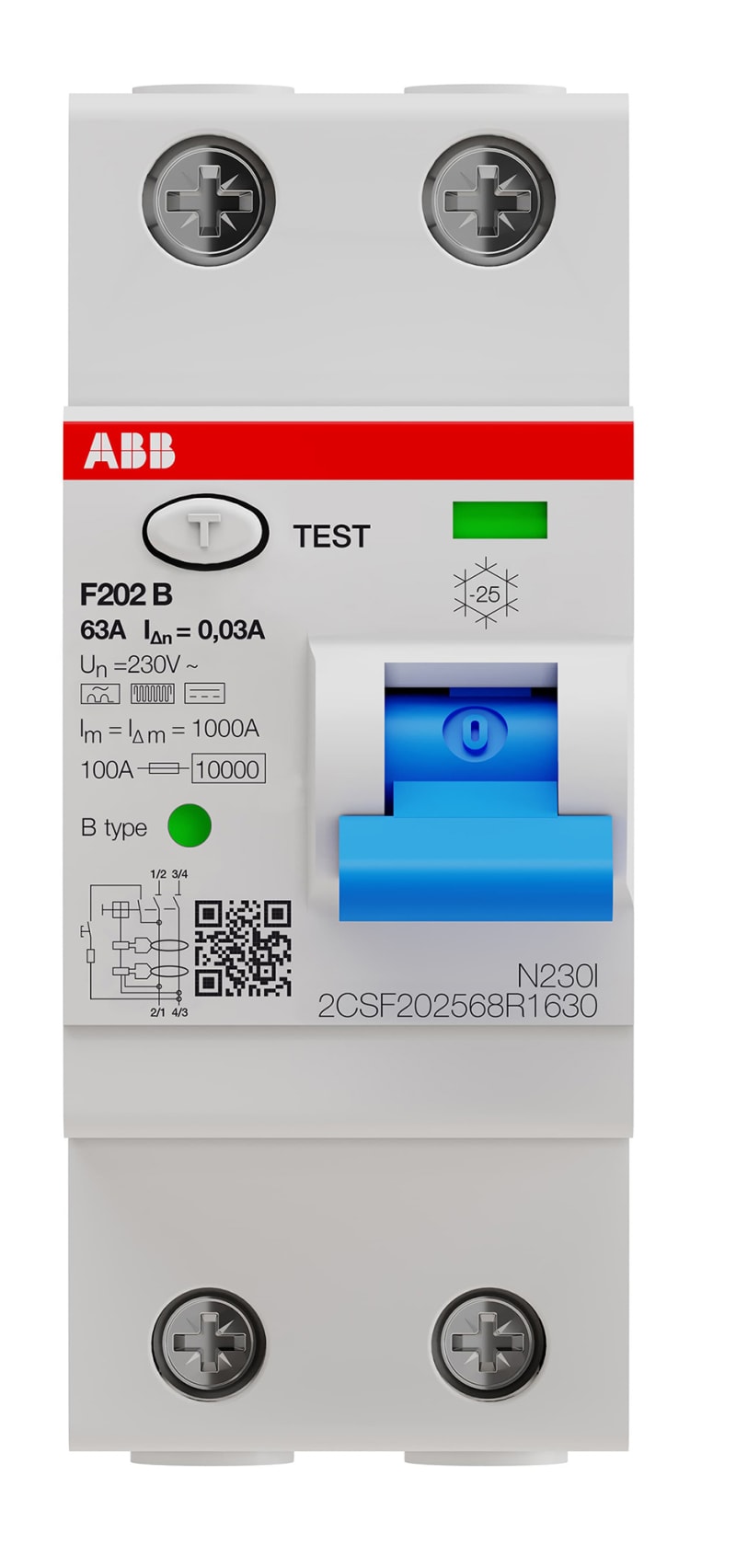

Residual Current Circuit Breaker F202 B 63A/30MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSF202568R1630 RESIDUAL CURRENT CIRCUIT BREAKER F202, 2 pole, Type B, 63 A, 30mA.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF202568R1630
- EAN / GTIN
- 8012542341451
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 63 A
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 440 V
- Number of poles
- 2
- Leakage current type
- B
- Selective protection
- No
- Surge current capacity
- 3 kA
- Pollution degree
- 3
- Width in number of modular spacings
- 2
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 8.58 W
- Frequency
- 50/60 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- With interlocking device
- No
- Ambient temperature during operating
- -25–50 °C
- Additional equipment possible
- Yes
- Device width
- 35 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542341451
- SAP 1200626170
- Code 83031502
Product Documentation
More from ABB
ABB
ABB 2CTB803876R0400 OVR T2 40-440 C QS Surge Protective Device
ABB
ABB DIN A4 plan pockets with transparent sleeve and reinforced back, self-adhesive 2CPX038227R9999
ABB
Cover frame RB210, B2/H10
2CPX045936R9999
ABB
ABB 2CKA001754A4324 for vertical or horizontal installation.
ABB
AUP-R XT5-XT6 P/W 1 Rac.-out cont. 250V
1SDA104817R1
ABB
External Sensor Tls FOR WALL
TLs
ABB

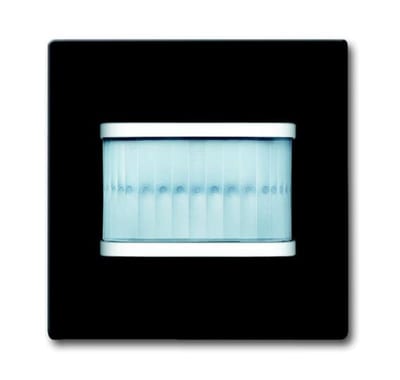

ABB Movement detector with up to 4 channels. the bus can be connected via enclosed terminal block. with integrated KNX bus coupler. 2CKA006132A0381
ABB

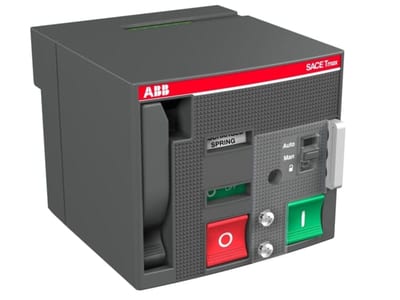

ABB MOE-E XT2-XT4 220..250V ac/dc X REM.CONT Motor Operator 220...250V AC-DC FOR Remote Control Modbus FOR EKIP LSI-LSIG-With LRIU WITH Ekip…
