ABB
JF.AUT.DS203NC-C32/AS 0.3 (2CSR256240R3324)
Part number2CSR256240R3324EAN / GTIN8012542077527HS code8536.30
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

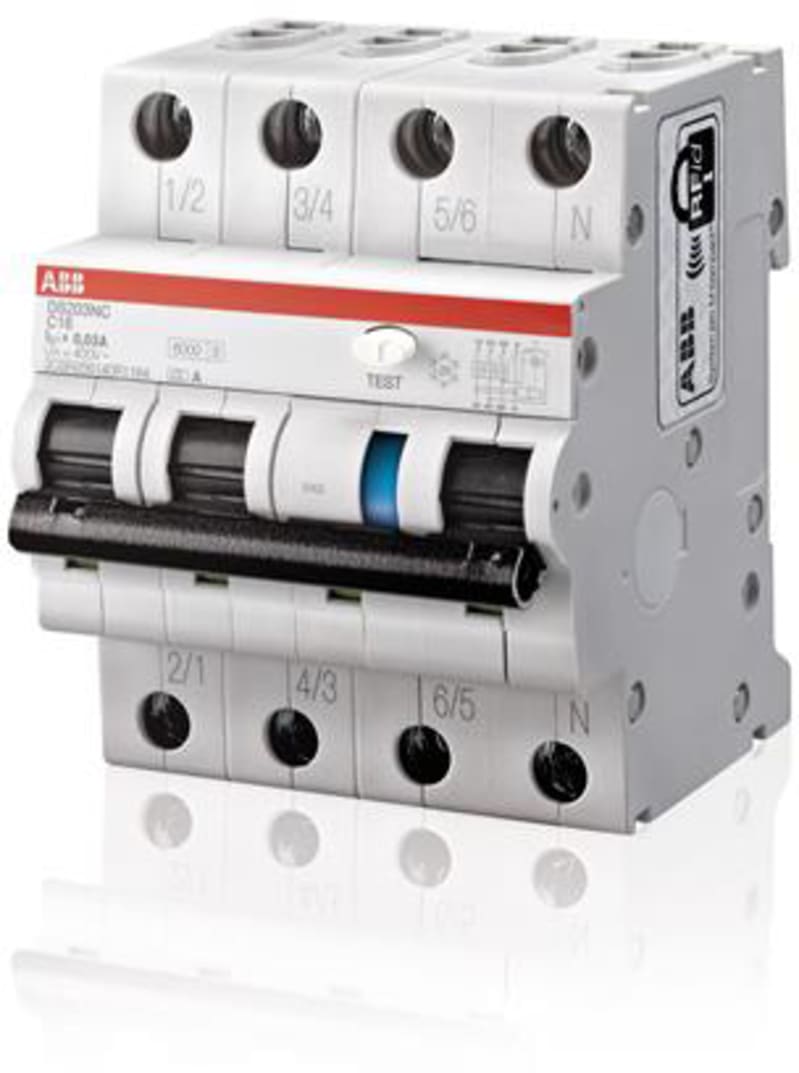

ABB 2CSR256240R3324 — DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR256240R3324
- EAN / GTIN
- 8012542077527
- Sales unit
- pcs
- Carbon Footprint (Full Lifecycle)
- 13.076764 kg CO₂ eq
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 83.26 %
- Sustainable Material Content in Packaging (wt. %)
- Recycled Paper - 00 %; Recycled Cardboard - 92 %; Recycled Paper - 00 %
- Extended Product Lifetime
- Product Durability
- End Of Life Disassembling Instructions
- 9AKK108469A7475
- Environmental Product Declaration - EPD
- 9AKK108469A9830
- Type of Residual Current
- Type A
- Rated Ultimate Short-Circuit Breaking Capacity (I cu )
- 10 kA
- Maximum Surge Current
- 5 kA
- Power Supply Connection
- Arbitrary
- Energy Limiting Class
- 3
- Electrical Endurance
- 10000 cycle
- Mechanical Endurance
- 20000 cycle
- Number of Protected Poles
- 3
- Number of Poles
- 3P+N
- Operating Characteristic
- Selective
- Position of Neutral Terminals
- Right
- Earthing Switch Type
- Selective
- Options Provided
- None
- Accessories Available
- Yes
- Connecting Capacity
- Busbar 10 mm²; Rigid 25 ... 25 mm²; Flexible 25 ... 25 mm²
- Rated Cross-Section
- 1 - Solid-Core 25 … 25 mm²; 4 - Multi-Wired 1 … 25 mm²
- Tripping Characteristic
- C
- Rated Operational Voltage
- acc. to IEC 60898-1 415 V
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 500 V
- Rated Impulse Withstand Voltage (U imp )
- 4 kV
- Input Voltage Type
- AC
- Rated Current (I n )
- 32 A
- Rated Residual Current
- 300 mA
- Rated Short-Circuit Capacity
- 6 kA
- Rated Conditional Short-Circuit Current (I nc )
- 10 kA
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 15.1 W
- Overvoltage Category
- III
- Ambient Air Temperature
- Operation -25 … 55 °C
- Degree of Protection
- IP2X
- Pollution Degree
- 2
- Environmental Information
- refer to RoHS information
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 71 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 69 mm
- Built-In Depth ( t 2 )
- 69 mm
- EPLAN Data
- 9AAC181438_EPLAN
- CCC Certificate
- 2021980307001650
- Declaration of Conformity - CE
- 9AKK106713A5597
- Instructions and Manuals
- 9AKK106713A8790
- Mounting Type
- DIN-Rail
- ETIM 9
- EC000905 - Earth leakage circuit breaker
- UNSPSC
- 39121601
- eClass
- V11.0 : 27142207
- Object Classification Code
- F
- Standards
- IEC 61009-1; IEC 61009-2-1; EN 61009-1; EN 61009-2-1
- Rated voltage
- 415 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.3 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 6 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Disconnection characteristic
- Selective
- Surge current capacity
- 5 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Anti-nuisance tripping version
- No
- Connectable conductor cross section solid-core
- 25 mm²
- Connectable conductor cross section multi-wired
- 25 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8012542077527
- SAP 1000715681
- Code 8334824
Product Documentation
