Cable Terminal AM 3 (2TKA110003G1)
Pricing
Request a quote
We reply within 24 hours
Product Description

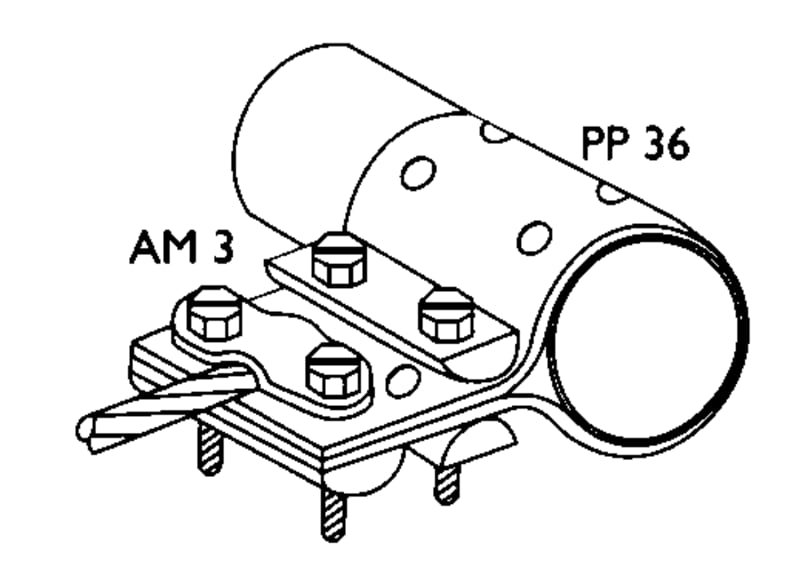

ABB 2TKA110003G1 — AM3 connector is used to connect one conductor to PP36 earthing band. Saddle terminal accepts conductors with sizes ranging between 6-70 mm². Saddle terminal is made of tinned copper while screws, washers and base block is made of galvanized steel. Bolts have slotted hex heads accepting 10 mm wrench and flat-bladed screwdriver (SL). Tightening torque for bolts is 3,0 Nm. Peeling lenght is 15 mm. If connecting conductor of over 35 mm² to PP36 earthing band, the connector must be attached to both ends of band to achieve sufficient conductivity.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA110003G1
- EAN / GTIN
- 6410050260967
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 86.2 %
- Sustainable Material Content in Packaging (wt. %)
- Mechanically Recycled Polymer - 8.1 %; Recycled Cardboard - 62.9 %
- End Of Life Disassembling Instructions
- 9AKK108468A2670
- Number of Conductors
- 1
- Cross-Section ( A cross )
- Connecting Conductors 4 ... 35 mm²
- Material
- Metal, Steel
- Environmental Information
- 9AKK108468A2670
- Product Net Width
- 0.015 m
- Product Net Height
- 0.036 m
- Product Net Depth / Length
- 0.03 m
- Dimension Diagram
- 9AKK108469A9145
- Declaration of Conformity - CE
- 9AKK108472A4270
- ETIM 9
- EC000493 - Earthing pipe clamp
- Cross section of the connecting conductor
- 4–35 mm²
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6410050260967
- SAP 1000513402
- Code 8800891
Product Documentation
