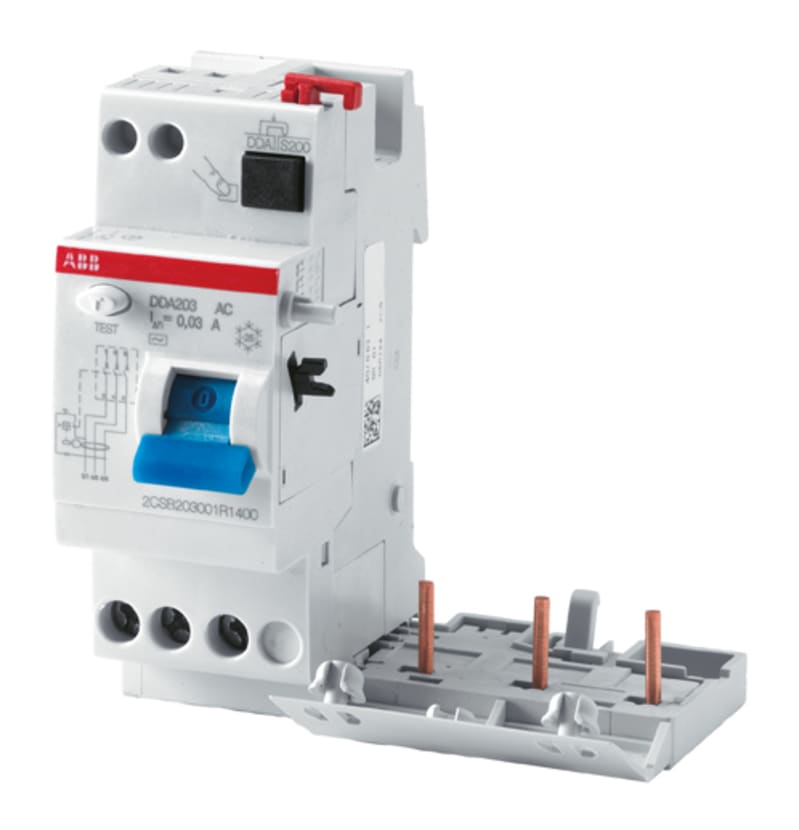

ABB DDA203 RCD Block — 3-Pole, Type A, 40 A, 30 mA, 110 V, for S200 MCB
Pricing
Request a quote
We reply within 24 hours
Product Description
The ABB 2CSB203199R1400 is a DDA203 residual current device (RCD) block from the DDA200 range. It assembles onto an ABB S200 series miniature circuit breaker and adds residual-current protection to that breaker's overcurrent protection, so earth-fault protection can be added to selected ways of a board without stocking a separate RCBO for every rating. It is 3-pole, rated 40 A at 110 V, with a rated residual current of 30 mA. Type A means it responds to sinusoidal AC and pulsating DC residual currents. At 30 mA it is rated for protection of people against electric shock, which is the sensitivity required for socket outlets and other circuits where direct contact is foreseeable. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSB203199R1400
- EAN / GTIN
- 8012542811701
- Sales unit
- pcs
- Voltage
- 110 V
- Rated current
- 40 A
- Power loss
- 4.8 W
- Nominal voltage
- 230–400 V
- Nominal current
- 40 A
- Rated fault current adjustable
- No
- Rated fault current
- 0.03 A
- Delay adjustable
- No
- Number of poles
- 3
- Leakage current type
- A
- Frequency
- 50/60 Hz
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Connectable conductor cross section solid-core
- 16 mm²
- Connectable conductor cross section multi-wired
- 16 mm²
- Anti-nuisance tripping version
- No
- With interlocking device
- Yes
- Degree of protection (IP)
- IP2X
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Country of origin
- Italy
- Product family
- ABB DDA200 RCD block (System pro M compact)
- Device type
- Add-on residual current device (RCD) block for MCB
- Model
- DDA203
- Rated residual current (IΔn)
- 30 mA
- Suitable for
- ABB S200 series miniature circuit breakers
- Tripping characteristic
- Instantaneous
- Protection purpose
- Protection of people against electric shock
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 8012542811701
- SAP 1200640336
- Code 83057525
- MPN 2CSB203199R1400
- Model DDA203
Product Documentation
