Detector TVOC-2-DP6 6M
Pricing
Request a quote
We reply within 24 hours
Product Description

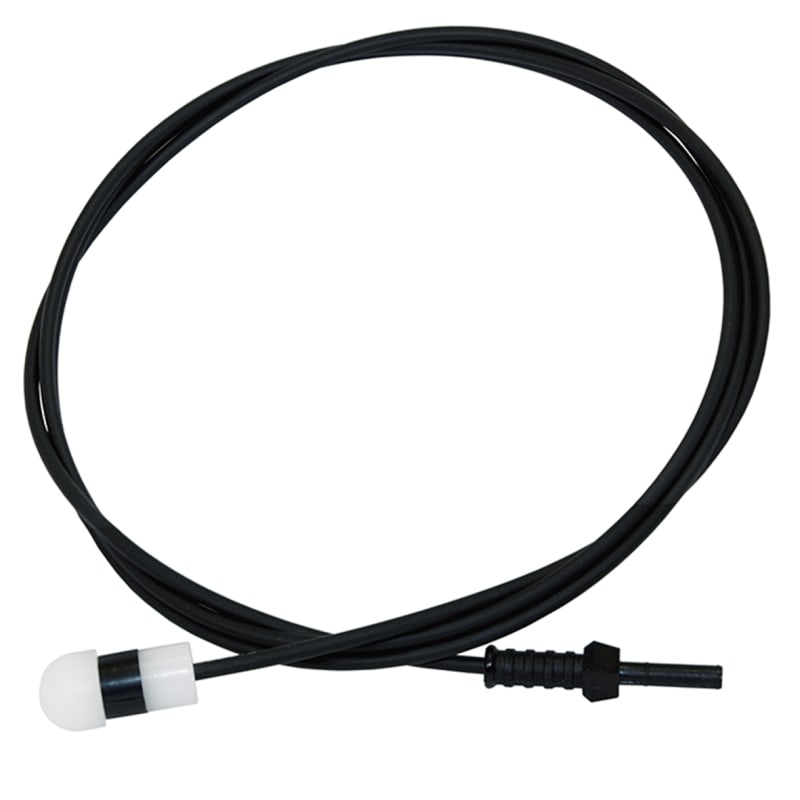

ABB TVOC-2-DP6 — The TVOC-2-DP6 Detector Cable 6 m is a key accessory to the TVOC-2 Arc Guard System. The detectors are installed in the switchgear panels to monitor for any unwanted arc flashes. The detectors consists of a fiber optic cable connected to a lens that can detect light in a 180 degree angle at distances of 3 m, depending on the light intensity.
Technical Specifications
- Manufacturer part number (MPN)
- TVOC-2-DP6
- EAN / GTIN
- 7320500382295
- Sales unit
- pcs
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Standard delivery time
- Storage Location
- 4001
- Environmental Product Declaration - EPD
- No certification needed
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -25 ... +85 °C
- Environmental Information
- 1SFC170003D0201
- Product Net Width
- 350 mm
- Product Net Height
- 20 mm
- Product Net Depth / Length
- 300 mm
- Additional Information
- DETECTOR suitable for TVOC-2
- Product Main Type
- TVOC-2
- Suitable For
- TVOC-2
- Suitable for Product Class
- Arc Monitor
- Mounting Type
- Connected to main unit or extension module
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 0
- BV Certificate
- 39407_B1
- CSA Certificate
- UL_20110511-E155370
- cULus Certificate
- UL_20110511-E155370
- Data Sheet, Technical Information
- 1SFC170001C0201
- Declaration of Conformity - CE
- 2CMT005420
- DNV Certificate
- DNV_E-12926
- EAC Certificate
- 9AKK106713A1450
- UL Certificate
- UL_20110511-E155370
- Instructions and Manuals
- 1SFC170011M0201
- Instructions and Manuals (Part 2)
- 1SFC170011M0201
- ETIM 9
- EC002911 - Arc detection and mitigation system
- IDEA Granular Category Code (IGCC)
- 6958 >> Fiber optic detector
- Object Classification Code
- B
- UNSPSC
- 43223319
- WEEE Category
- Product Not in WEEE Scope
- eClass
- V11.0 : 27142214
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7320500382295
- SAP 1000407864
- Code 81094864
Product Documentation
More from ABB
ABB
KIT FC CuAl 1X35...185MM2 XT5 4 Pcs
1SDA104747R1
ABB
ABB 2CSM277113R1801 E 9F10 GG1 is a 10,3X38 mm cylindrical fuse for circuit protection
ABB
XT5 P FP 630A 4P EF EF IEC/UL
1SDA104679R1
ABB
Modular LOAD-Break Switch SD201/16
2CDD281101R0016
ABB
SAGA Frame 1-Hole 100mm
1721F100-916
ABB
ABB OHYS2AJ Handle
ABB
ABB OTS40T1 Terminal Shroud
ABB
Safety Switch OT125GFCC3T
Catalogue entry last verified: 2026-08-20. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TVOC-2-DP6?
- TVOC-2-DP6 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is TVOC-2-DP6.
- What is the HS code for TVOC-2-DP6?
- The customs tariff (HS) code for TVOC-2-DP6 is 8538.90.
- Who manufactures TVOC-2-DP6?
- TVOC-2-DP6 is a ABB product in the SC002911 range.
- Is a datasheet available for TVOC-2-DP6?
- Yes — the TVOC-2-DP6 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TVOC-2-DP6?
- The minimum order quantity is 1.
- Is TVOC-2-DP6 available?
- Yes — TVOC-2-DP6 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
