Safety Switch OT125GFCC3T

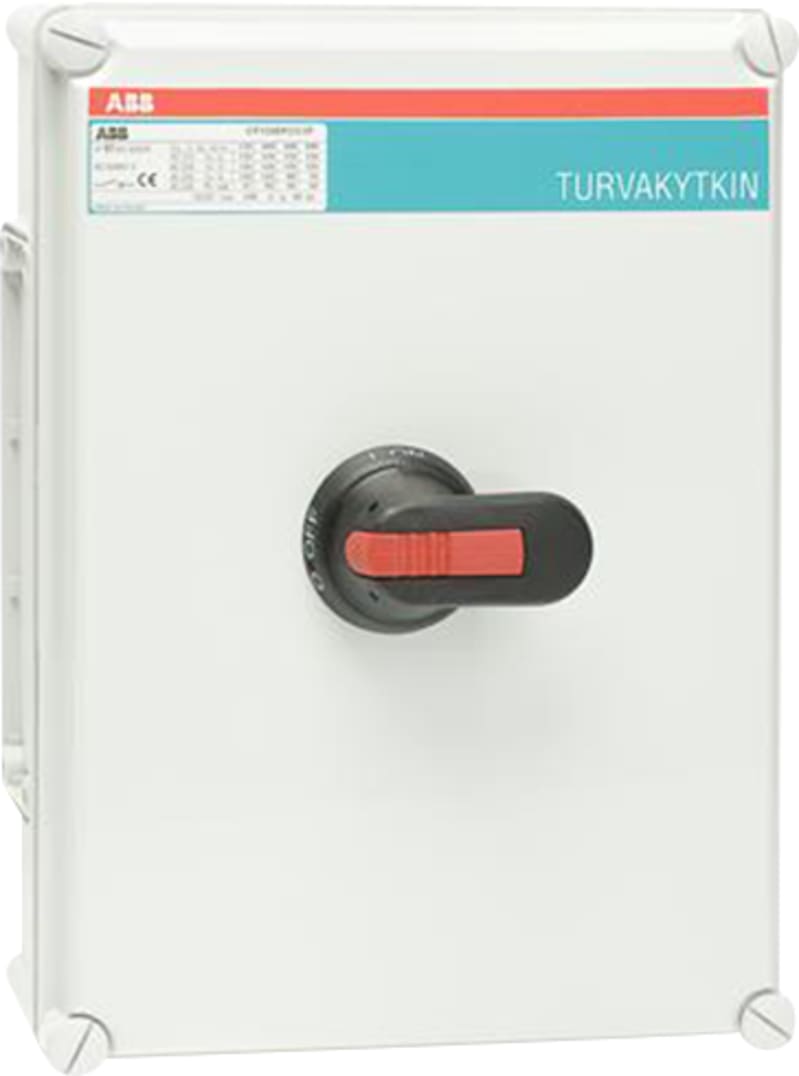

ABB OT125GFCC3T — Safety switch, 3-p. 415V AC23 125A, 55kW. Mounted auxiliary contact: 1NO1NC. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. PE terminals included.

Manufacturer part number (MPN)

OT125GFCC3T

EAN / GTIN

6417019781389

Sales unit

pcs

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

280 mm

Product Net Height

380 mm

Product Net Depth / Length

130 mm

Cable Cross-Section

10 ... 70 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

II-flange / II-flange

Color

RAL7035

Connecting Capacity Main Circuit

Screw Clamp 10 ... 70 mm²; Screw Clamp / PE Terminal 2pc 10 ... 70 mm²

Conventional Thermal Current (I the )

Fully Enclosed 125 A

Enclosure Material

Plastic

Enclosure Type

Fibox

Handle Color

Black

Handle Type

Pistol

Impact Resistance Rating

Housing IK08

Maximum Mounted Auxiliary Contacts

2 NO, 2 NC

Mounted Auxiliary Contacts

1 NO, 1 NC

Neutral Type

No Neutral Terminal

Number of Auxiliary Contacts NC

1

Number of Auxiliary Contacts NO

1

Number of Poles

3P

Position of Line Terminals

Top In - Bottom Out

Power Loss

at Rated Operating Conditions per Pole 6.3 W; Total 18.9 W

Rated Conditional Short-Circuit Current (I nc )

24 kA

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

750 V

Rated Operational Current AC-21A (I e )

(400 V) 125 A; (500 V) 125 A; (690 V) 125 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 125 A; (500 V) 125 A; (690 V) 125 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 125 A; (500 V) 125 A; (690 V) 125 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 55 kW; (500 V) 75 kW; (690 V) 110 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(690 V AC) 12 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 4 kA; for 0.2 s 4 kA

Recommended Screw Driver

Main Circuit Hexagon 4

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 6 N·m

Wire Stripping Length

20 mm

Declaration of Conformity - CE

1SCC340002D2703

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3640405

E-Number (Norway)

1428975

E-Number (Sweden)

3134565

HS Code

8536.30

• EAN 6417019781389
• SAP 1200023344
• Code 81443254
