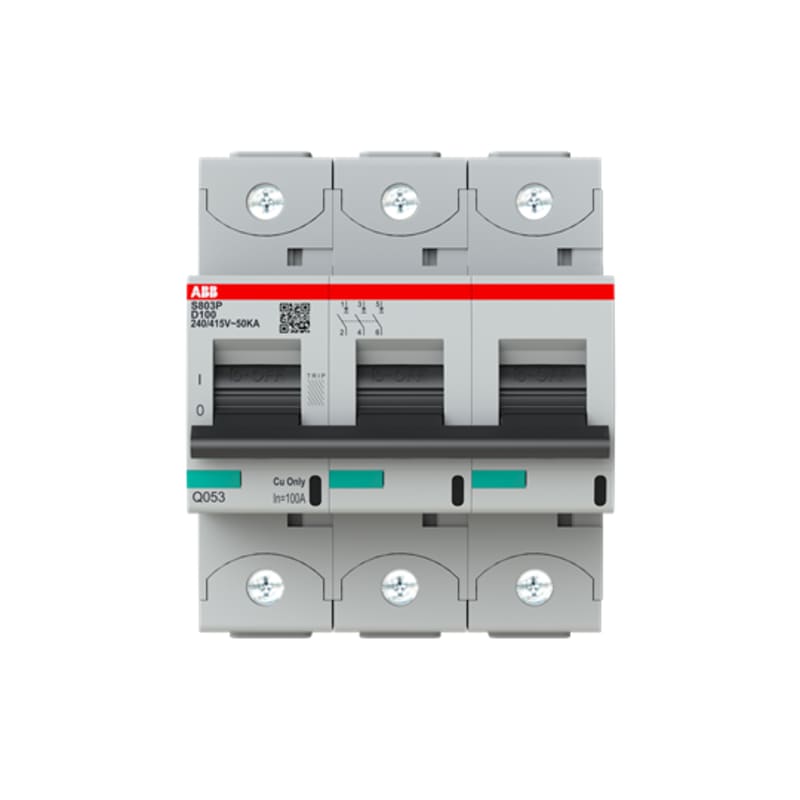

ABB S803P-D100 Miniature Circuit Breaker — 3P, Type D, 100 A, 50 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S803P-D100 miniature circuit breaker (MCB) from the S800 high performance range. 3P, rated current In = 100 A, Type D tripping characteristic. Rated ultimate short-circuit breaking capacity Icu = 50 kA (IEC 60947-2); rated operational voltage Ue 240/415 V AC. DIN-rail modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC 60947-2. ABB order code 2CCG001245R0001, EAN 7612271517144, ABB/SAP material 1200722113, catalogue code 83833594.
Technical Specifications
- Manufacturer
- ABB
- Product family
- S800 high performance
- Type designation
- S803P-D100
- Manufacturer part number (MPN)
- 2CCG001245R0001
- EAN / GTIN
- 7612271517144
- ABB / SAP material no.
- 1200722113
- Poles
- 3P
- Tripping characteristic
- Type D
- Rated current In
- 100 A
- Rated ultimate breaking capacity Icu
- 50 kA
- Rated operational voltage Ue
- 240/415 V AC
- Standard
- IEC 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60947-2
- HS Code
- 8536.20
Cross References
- EAN 7612271517144
- SAP 1200722113
- Code 83833594
