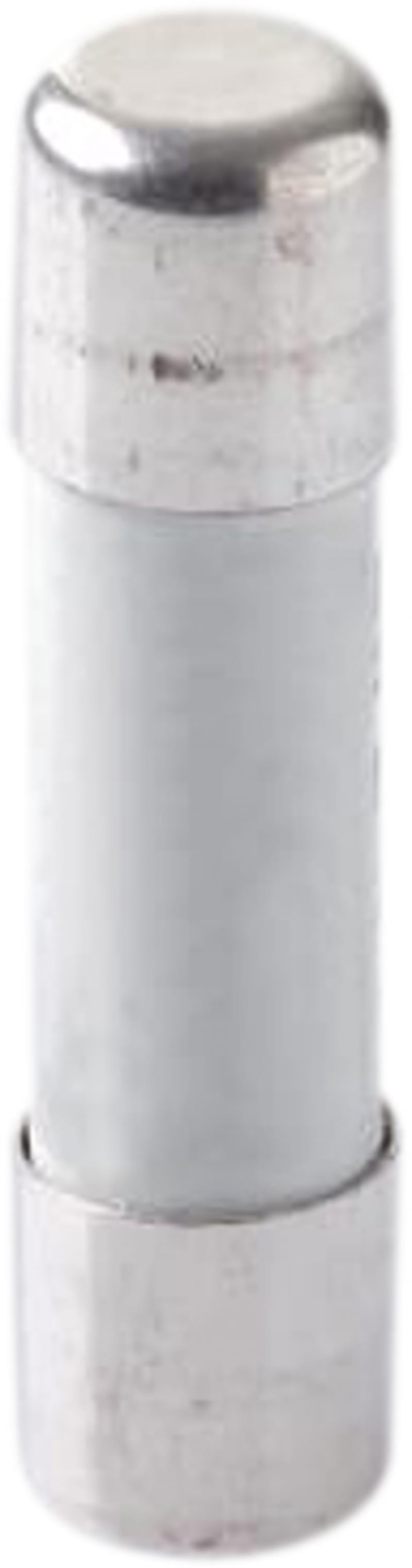

ABB 2CSM258713R1801 E 9F10 GG32 is a 10,3X38 mm cylindrical fuse for circuit protection
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CSM258713R1801 E 9F10 GG32 is a 10,3X38 mm cylindrical fuse for circuit protection is listed under Electrical Components / Fuses. Sales unit: pcs; Package quantity: 10 pcs; Fuse Type: gG; Construction Material: Ceramic; Fuse Size: 10x38; Contact Material: copper silver plated (Cu/Ag).
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM258713R1801
- EAN / GTIN
- 8012542587132
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Fuse Type
- gG
- Release Type
- gG: Used in general protection of cables and lines in installation and industrial applications
- Construction Material
- Ceramic
- Fuse Size
- 10x38
- Contact Material
- copper silver plated (Cu/Ag)
- Rated Voltage (U r )
- 400 V AC
- Rated Current (I n )
- 32 A
- Maximum Breaking Capacity
- 120 kA
- Power Loss
- Total 2.8 W; at Rated Operating Conditions per Pole 2.8 W
- I²t Characteristic
- 9AKK108466A9087
- Environmental Information
- See RoHS Information
- Product Net Width
- 1 mm
- Product Net Height
- 4 mm
- Product Net Depth / Length
- 1 mm
- Dimension Diagram
- 9AKK108466A8532
- Cut-off Current Characteristic
- 9AKK108466A9067
- Declaration of Conformity - CE
- 9AKK106713A5625
- ETIM 9
- EC002704 - Cylindrical fuse
- UNSPSC
- 39121606
- eClass
- V11.0 : 27142002
- Object Classification Code
- F
- Standards
- IEC 60269-2
- Size
- 10x38 mm
- Voltage type
- AC
- Utilization category according to IEC 60269
- gL/gG (cable protection/equipment protection)
- Nominal current
- 32 A
- With striker
- No
- Breaking capacity
- 120 kA
- Power loss at rated current
- 2.8 W
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 8012542587132
- SAP 1200640840
- Code 83054146
Product Documentation
