JF.AUT.DS203NC B16 A30 230V

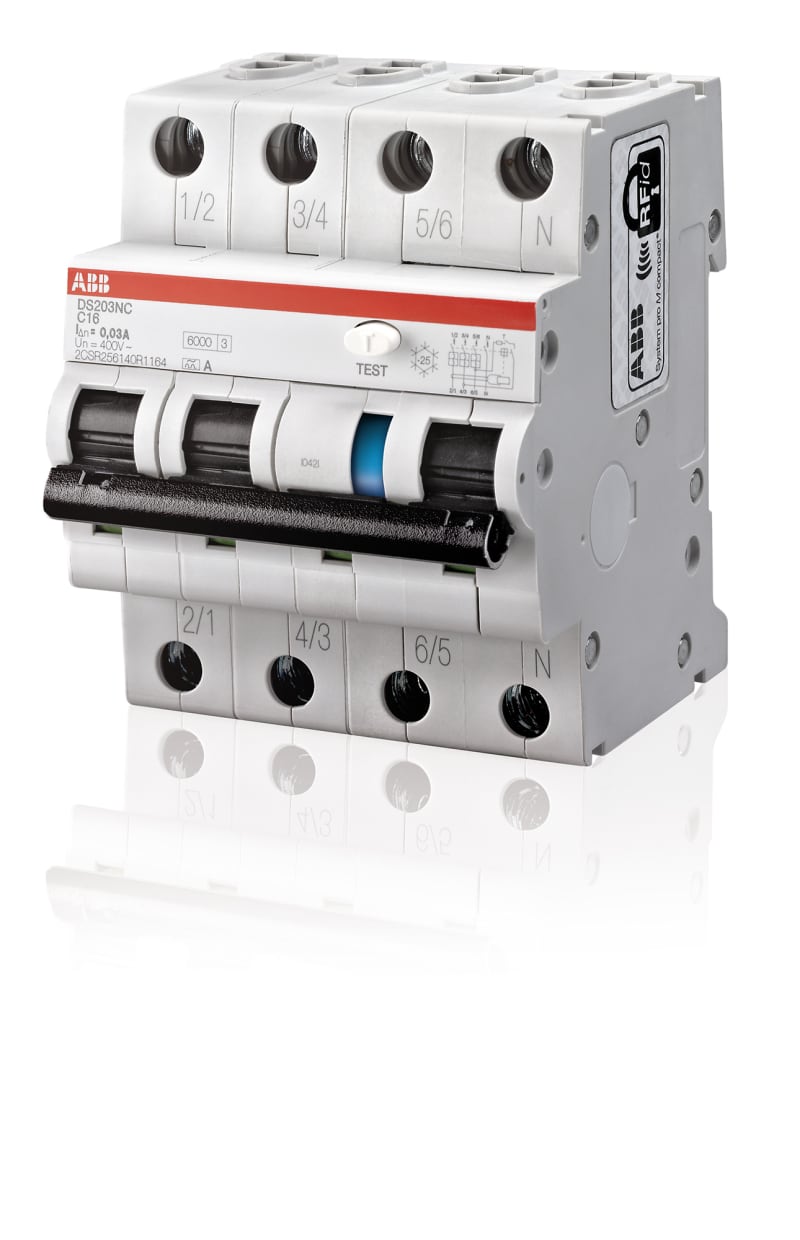

ABB 2CSR256147R1165 — DS203NC 230V is a 3P residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts. The new series is suitable for installation in IT 3P systems without neutral with 230V between the phases.

Manufacturer part number (MPN)

2CSR256147R1165

EAN / GTIN

8012542197324

Sales unit

pcs

Voltage

230 V

Carbon Footprint (Full Lifecycle)

10.55509 kg CO₂ eq

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 83.26 %

Sustainable Material Content in Packaging (wt. %)

Recycled Paper - 00 %; Recycled Cardboard - 92 %; Recycled Paper - 00 %

Extended Product Lifetime

Product Durability

End Of Life Disassembling Instructions

9AKK108469A7475

Environmental Product Declaration - EPD

9AKK108469A9830

Type of Residual Current

Type A

Rated Ultimate Short-Circuit Breaking Capacity (I cu )

10 kA

Maximum Surge Current

0.25 kA

Power Supply Connection

Arbitrary

Energy Limiting Class

3

Electrical Endurance

10000 cycle

Mechanical Endurance

20000 cycle

Number of Protected Poles

3

Number of Poles

3P

Operating Characteristic

Instantaneous

Position of Neutral Terminals

Right

Earthing Switch Type

Undelayed

Options Provided

Suitable for 230V applications

Accessories Available

Yes

Connecting Capacity

Busbar 10 mm²; Rigid 25 ... 25 mm²; Flexible 25 ... 25 mm²

Rated Cross-Section

1 - Solid-Core 25 … 25 mm²; 4 - Multi-Wired 1 … 25 mm²

Tripping Characteristic

B

Rated Operational Voltage

acc. to IEC 60898-1 230 V

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Input Voltage Type

AC

Rated Current (I n )

16 A

Rated Residual Current

30 mA

Rated Short-Circuit Capacity

6 kA

Rated Conditional Short-Circuit Current (I nc )

10 kA

Rated Frequency (f)

50/60 Hz

Power Loss

Total 10 W

Overvoltage Category

III

Ambient Air Temperature

Operation -25 … 55 °C

Degree of Protection

IP2X

Pollution Degree

2

Width in Number of Modular Spacings

4

Product Net Width

71 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Built-In Depth ( t 2 )

69 mm

CCC Certificate

2021980307001650

Declaration of Conformity - CE

9AKK106713A5597

Instructions and Manuals

9AKK106713A8790

ETIM 9

EC000905 - Earth leakage circuit breaker

eClass

V11.0 : 27142207

Object Classification Code

F

Standards

IEC 61009-1; IEC 61009-2-1; EN 61009-1; EN 61009-2-1

Rated voltage

230 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Rated fault current

0.03 A

Leakage current type

A

Current limiting class

3

Rated short-circuit breaking capacity according to EN 61009

6 kA

Disconnection characteristic

Undelayed

Surge current capacity

0.25 kA

Voltage type

AC

Frequency

50/60 Hz

Release characteristic

B

Concurrently switching neutral conductor

Yes

With interlocking device

Yes

Ambient temperature during operating

-25–55 °C

Anti-nuisance tripping version

No

Connectable conductor cross section solid-core

25 mm²

Connectable conductor cross section multi-wired

25 mm²

Country of origin

Italy

HS Code

8536.30
